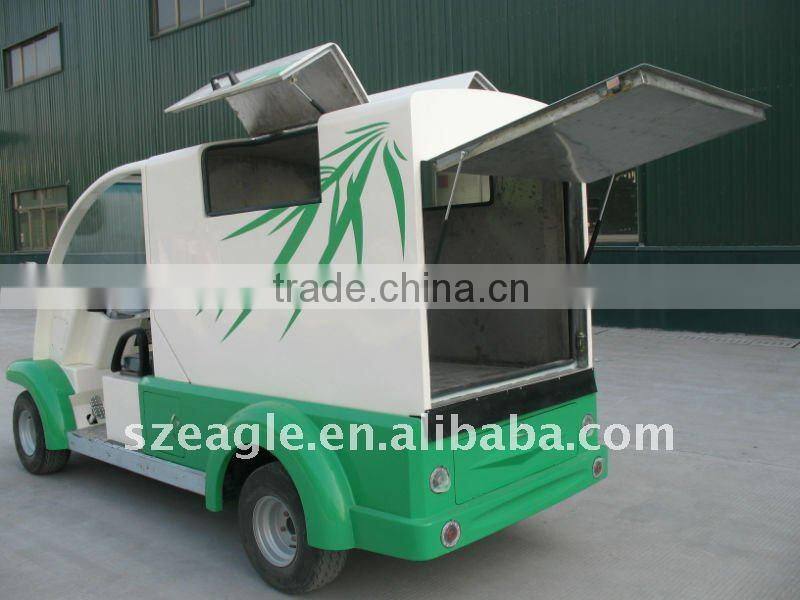

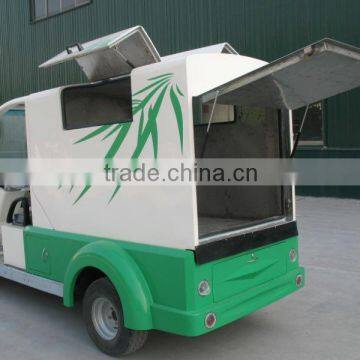

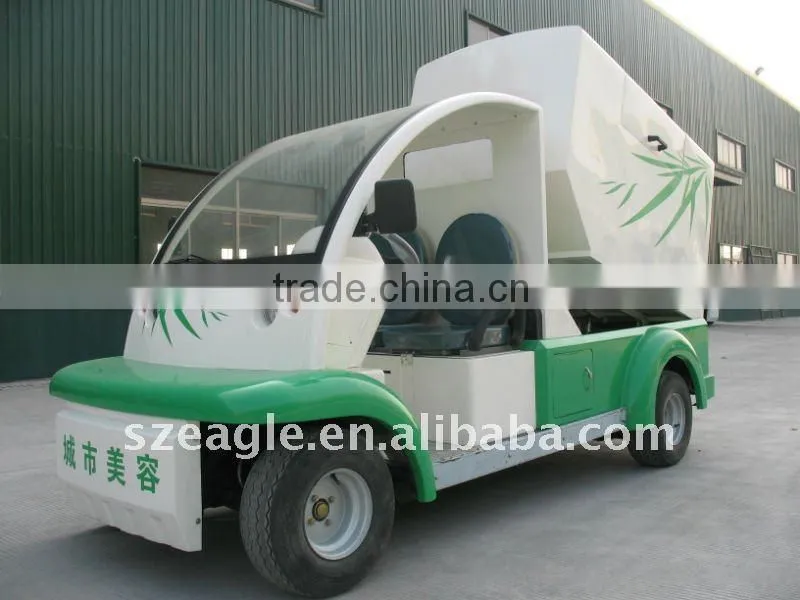

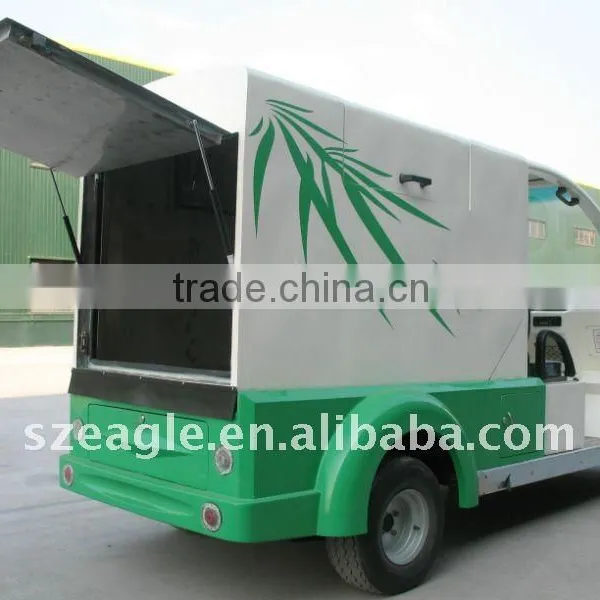

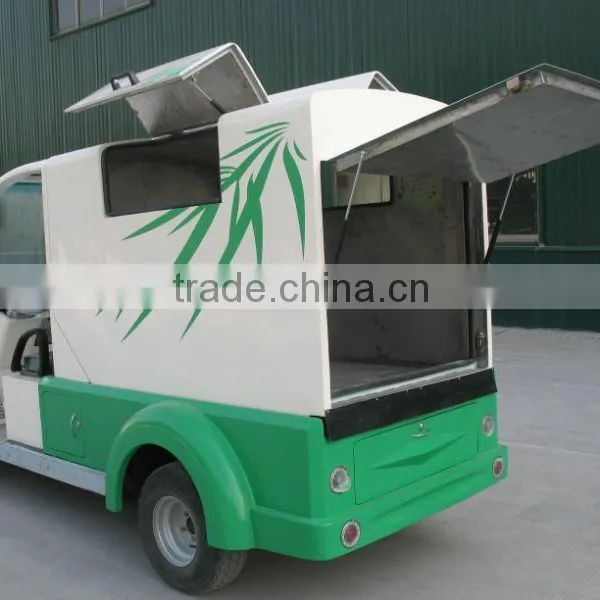

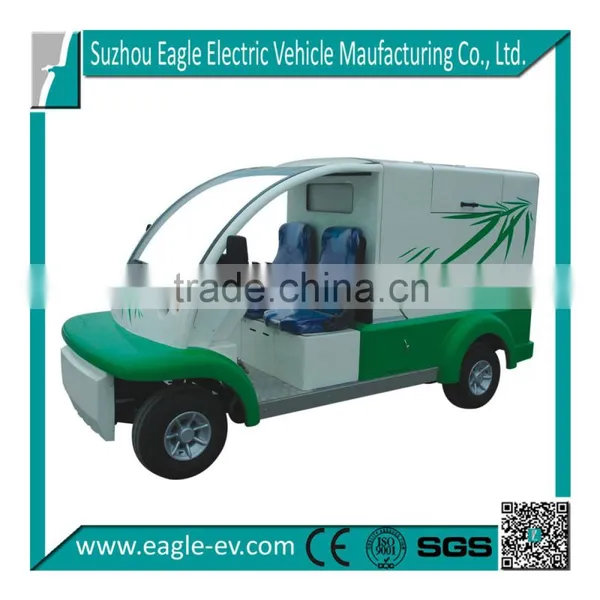

Help CenterWaste Truck, Pure Electric, Model EG6020X, 48V 4KW DC System,
Related Products
-
Low Cost Electric Car, 2 Seat, Pure Electric, 36V 3KW, With Golf Bag Holder, Plastic Top, Plastic Body, Trojan Battery EG202AKSZNegotiableMOQ: 1 Unit -
Golf Car Uae China Supplier ce Approved for 6 Person, CE Approved, Best QualityNegotiableMOQ: 1 Unit
-
Golf Buggy in Uae, China Supplier ce Approved for 6 Person, CE Approved, Best QualityNegotiableMOQ: 1 Unit
-
Chinese Electric Car, 4 Seats, Swiss Design, 48V 4KW DC Motor, Model EG6043KFNegotiableMOQ: 1 Unit
-
China Small Electric Vehicle, 4 Seats, Swiss Design, 48V 4KW DC Motor, Model EG6043KNegotiableMOQ: 1 Unit
waste truck
| Item | Description |
| Controller | Curtis controller, 275A, imported from USA directly |
| Motor | Rated power 4KW(5.4HP), Chinese brand |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 2 |
Range (loaded) (km)* |
up to 70 |
| Max.speed (km/h) | up to 30 |
| Min.turning radius (m) | 4 |
| Max.climbing ability(loaded) | up to 15% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 500 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 3750x1400x1810 (LxWxH) |
| Rear garbage box dimensions (mm) | 1720x1090x1170 |
| Min.ground clearance (mm) | 140 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 1160 |
| Rear wheel tread (mm) | 1150 |
| Item | Description |
| Frame & Chassis | Welded steel framework with sand blasting and painting |
| Body | FRP and Plastic |
| Roof | FRP with steel frame, with roof handle |
| Windshield | Laminated glass with wiper |
| Roof supports | Steel |
| Seat | Reborn sponge with artificial leather, high back, with formed armrest |

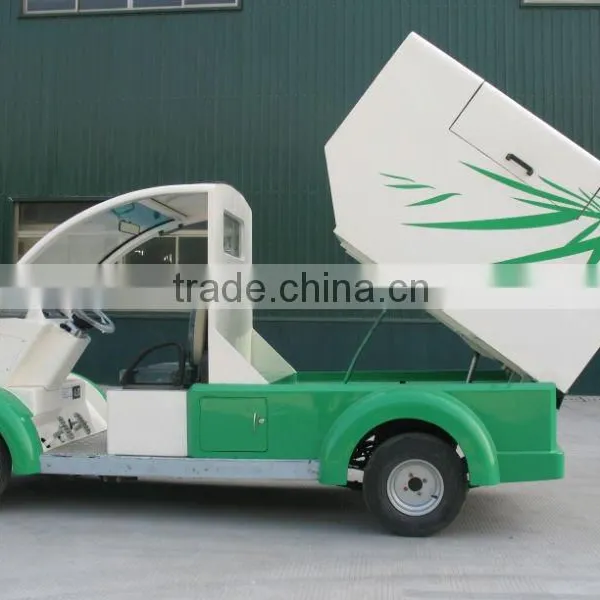

| Rear garbage box | Steel material, with hydraulic lifting function, side cover and rear door with air-spring |
| Floor | Bamboo floor with Skidproof leather |
| Dashboard | FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc.. |
| Side rear view mirror | 2pcs |
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | including switch for headlight, turning light, wiper and horn |
| DC/DC converter | 48V/12V |
| Digital Meter | with Current meter, voltometer, speedometer, odometer and various indicators |
| Audio system | Radio with MP3 receiver and 2 waterproof speaker |
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, steel differential case, 12.49:1 gear ratio |
| Wheel & Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap |
To increase the sales value of our electric trash truck, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Inner rear view mirror | 6 | CD player |
| 2 | Seatbelt (2-point or 3-point) | 7 | Wired mircophone |
| 3 | Battery watering pipe | 8 | Solar panel (built in) |
| 4 | Water pump (handle) | 9 | 10x6 aluminum rim |
| 5 | Rain cover |
Assembled
20GP / 1UNIT
40GP/3UNITS
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support

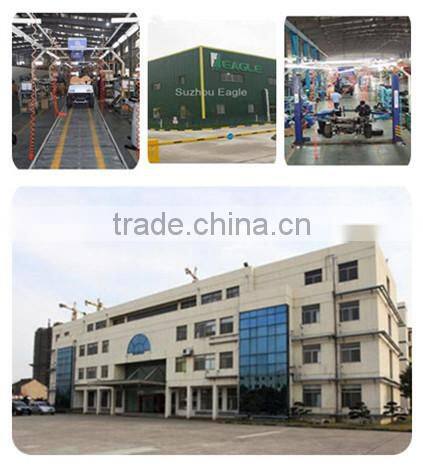

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
