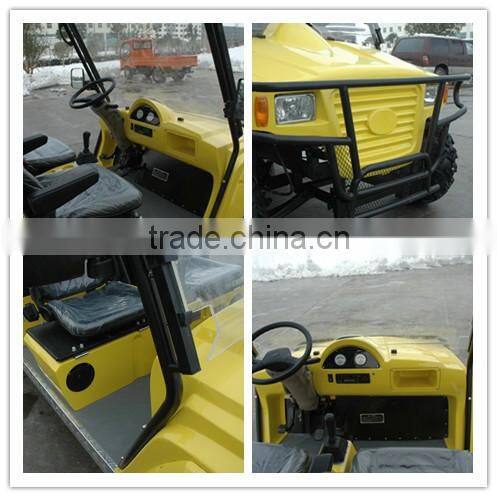

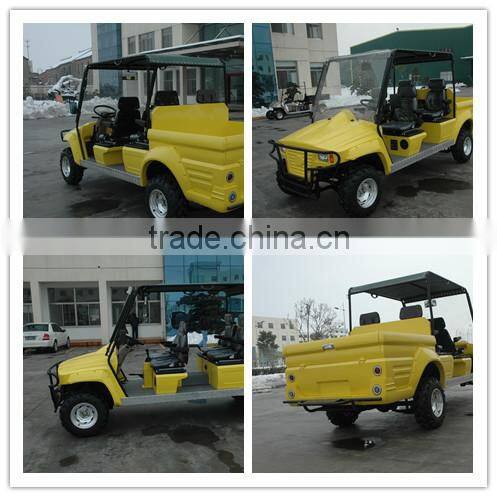

high speed electric car , 4F+1R gear box and clutch, EG6042A
| Specifications | Model | EG6042A |
| Key Components | Power Source | Pure Electric |
| Electric System | 72V/5KW Series | |
| Battery | Trojan battery | |
| Motor | Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A | |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 70 | |
| Max. speed | Up to 45 | |
| Minimum turning radius (m) | 4 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 320kgs | |
| Dimensions | Overall dimensions (mm) | 4150x1550x1950 |
| Min. ground clearance (mm) | 415(16inch) | |
| Wheelbase (mm) | 190 | |
| Front wheel tread (mm) | 1250 | |
| Rear wheel tread (mm) | 1310 | |
| Body and Frame | Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass | |
| Roof | Steel frame+ canvas roof | |
| Electric system | Lighting system and horn | front headlights, front turn signals, rear turn signals, taillights( combined brake lights with reverse lights), with DC-DC converter (converting from 72V to 12V) |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake + hand brake | |
| Suspension system | Independent suspension(FW) & Integrated rear end, leaf spring + shock absorber(RW) | |
| Driving mode | Front axle drive and rear axle drive (4x4) | |
| Rear axle | Gear ratio12.49:1 | |
| Wheel & Tyre | 12x7 steel wheel + 25x8 -12 tyre | |
| Option | 2point seat belt | |
| steering wheel in wood finish | ||
| CD player | ||
| Body Color | Up to 5 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
| Container loading qty | Disassembled | Assembled |
| Qty/20' | / | 1units |
| Qty/40' | / | 2units |
| Qty/40'HQ | 4units | 2units |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support

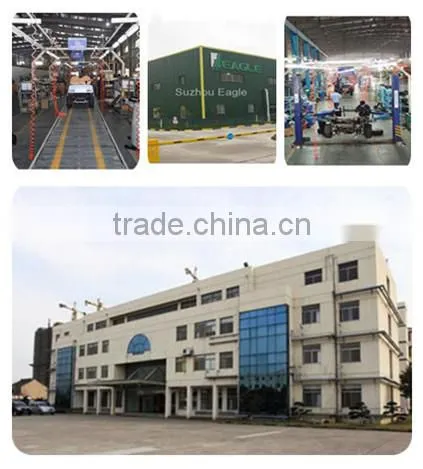

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
