Home > Transportation > Trailer > Truck Trailer > Street Legal Utv, L7e, EC Type, With EEC Certificate, Lifted Suspension, EG2020ASZR

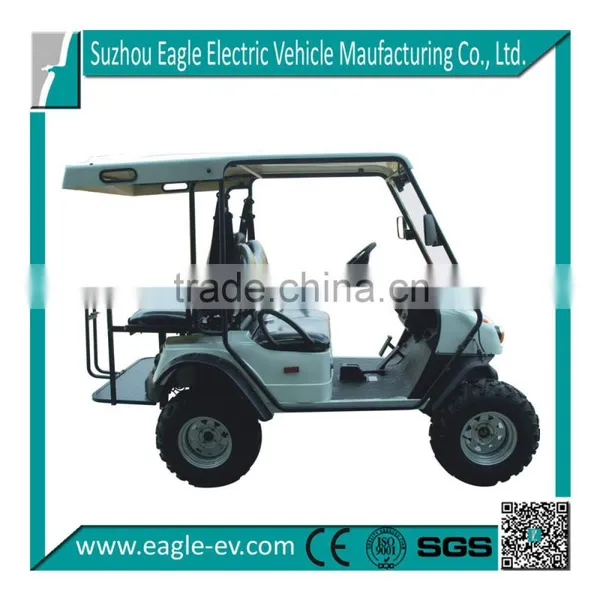

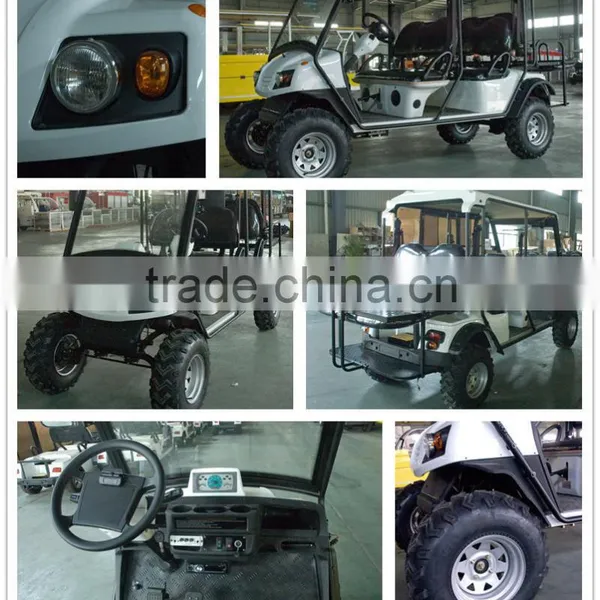

Street Legal Utv, L7e, EC Type, With EEC Certificate, Lifted Suspension, EG2020ASZR
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
EAGLE
Model Number:
EG2020ASZR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11 Seats Electric Shuttle Bus,tourist Car EG6118KA04NegotiableMOQ: 1 Unit -
11 Seats Electric Mini Bus, CE Certificate, Made in China EG6118KKBNegotiableMOQ: 1 Unit
-
EEC Approved Street Legal Atv, Lifted Suspension, EG2020ASZRNegotiableMOQ: 1 Unit
-
Solar Powered Electric Car, Electric Zoo Shuttle, Electric Sightseeing Bus, EG6158KNegotiableMOQ: 1 Unit
-
Solar Powered Golf Cart, CE Approved 4 Seat Electric Golf Car, 2 Rear Foldable Seat, EG2028KSZ,,NegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
EAGLE
Model Number
EG2020ASZR
street legal utv , with offroad big teeth tires, drive it around your neighborhood no matter what kind of road it is.
Product Description
| Specifications | Model | EG2040ASZR |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available | |
| Battery | Trojan battery | |
| Motor | ADC motor or Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, | |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 40 | |
| Max. speed | Up to 50 | |
| Minimum turning radius (m) | 3.5 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 450kgs | |
| Dimensions | Overall dimensions (mm) | 3765*1290*2060 |
| Min. ground clearance (mm) | 120 | |
| Wheelbase (mm) | 2450 | |
| Front wheel tread (mm) | 855 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Fiberglass | |
| Electric system | Lighting system and horn | Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake, front and rear drum brake, with hand parking brake | |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated, Gear ratio12.49:1 | |
| Wheel & Tyre | 12x7 Steel rim, 24*8-12 tyre | |
| Option | Backrest cover in wood finish | |
| Formed seat&backrest vinyl | ||
| Dashboard in wood finish | ||
| Steering wheel in wood finish | ||
| Glove box door (include two locks) in black plastic | ||
| Glove box door (include two locks) in wood finish (inside and outside) | ||
| 12V accessory plug | ||
| Hour meter | ||
| On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A | ||
| 12x7 Steel rim, 25*8-12 tyre | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
Color Options
Item |
New Camo |
Pure white |
Pure black |
red |
|
Body (includingroof) Roof cannot be in camo |
|
|
||
Metallic green |
Champagne |
Navy blue |
||
| ||||
Packaging & Shipping
Vehicles will be packed in steel crate
Container loading qty |
Semi-knock-down |
Refer Picture |
20'ft GP |
4 |
|
40'ft GP |
12 |
|
40'HQ |
18 |
Our Services
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
Customer use
Company Information
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..
Send Inquiry to This Supplier
Mr. Kevin Song
Sales Manager
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Suzhou, Jiangsu, China
Business Type
Manufacturer, Trading Company
Year Established
1999
Factory Size
30,000-50,000 square meters
Total Employees
301 - 500 People
