♦Specifications
Weighing Type liquid Semi-automatic Filling Machine:

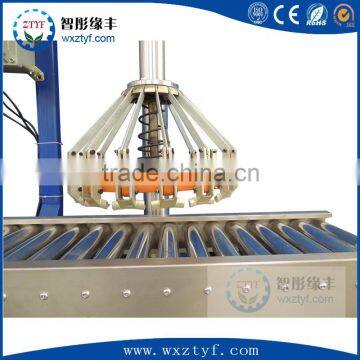

Lubricating grease Semi-automatic drum weighing Filling and press capping Machine
The Semi-auto paint filling machine that we produce adopts weight filling. It is with high measurement precision and will not be effected by materials. From the different nature of the materials, it can be divided into ordinary type, EXA type, DWK-F and so on. From the different ways of filling, it can be divided into standard type, hopper type, bottom irrigation type and so on. The irrigation nozzle has three types: submerge, splash proof and prevent drawing. Filling range is from 5 to 50 kg. It is widely used in the quantitative filling of chemical, oil, asphalt, glue, lubricating grease, coating, paint, ink, jam, sweet sauce, egg, food additives and other kinds of liquid and fluid materials.
Basic structures:
The paint filling machine consists of feeding system, weighing filling system, stainless roller system, sealing system, rack, pneumatic control, electrical control and other systems.
The weighing system consists of weighing support, sensor, weighing platform. The feeding valve consists of two filling valves (Fast Fill and Slow Fill) which not only can speed up filling speed but also filling accuracy. In the adjustment range of the filling quantity, you can set the filling weight and other weight parameters willfully.
The irrigation nozzle part is made of SUS304 or SUS316L stainless steel. It has strong corrosion resistance.
The weighing platform connects with the rack through sensor.
Main technical parameters
Name |
|
|||
|
Weighing System |
Weighing range(customizable) |
0.5-5kg |
5-30kg |
10-50kg |
Weighing speed |
160-240Pcs/hour |
|||
Accuracy class |
0.25 |
|||
Filling error |
0.2Class(±0.2%) |
|||
Division value |
e=d=(10g~100g) |
|||
Power supply |
Voltage:220V AC50Hz Power ≤500w |
|||
Air consumption |
Discharge 0.1m3/min Pressure0.4~0.8MPa |
|||
Working temperature |
0°C~40°C |
|||
Convey roller |
Convey range |
1300mm |
||
Capping machines |
Seal dimensions |
Custom made |
||
Dimension |
LWH |
1650×700×1800mm |
||
Users provide:Delivery pimp, filter, power, air supply (air compressor), overflow pipe, feed pipe and valve. | ||||
Operate Introduction:
Manual sets the drum, manual start, the machine opens delivery pump and size feed valve automatically. When the filling weight reaches the point 1, it auto-off the fast valve. When reaches point 2, it auto-off the slow. Manual caps and moves barrel to the gland position on the stainless steel without power raceway. Manual glands finish gland, move barrel into stock
.
