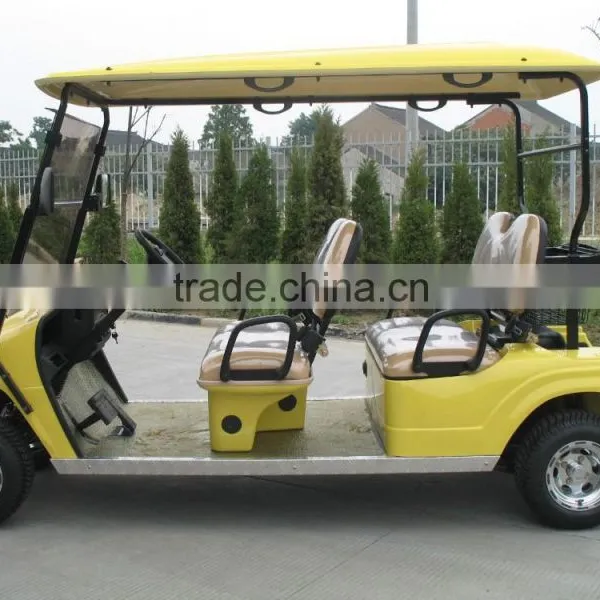

made in China high performance golf cart 4x4 golf cartce approved EG2048K

Name: made in China high performance golf cart 4x4 golf cartce approved EG2048K
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 60 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Seats:	3 - 4	Fuel Type:	Electric	Battery Voltage:	48V
Certification:	CE

Product Description

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3, 3.8KW DC / AC
Controller	Curtis brand, Separately excited, imported
Passenger capacity	4
Range (loaded) based on flat road at a speed of 20km/h (km)	>55--90 depends on battery setup
Max. speed	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	4.5
Max. climbing ability	20%
Max. loading weight	300kgs
Overall dimensions (mm)	3110X1180X1890
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x7 Alumimum wheel & 205/50-10 4PR
Color
Body Color	6 standard color: Pure white/Pure Black/Champagne/Coca Cola Red/Navy Blue/Metallic Green
Seat Color	2 standard color: white and tan
Others
Provides various options like: hinged windshield, wood finish dashboard/backrest cover/steering wheel, onboard charger, STS roof supports, 4-wheel hydraulic brake, enclosure, solar panel, cooler,etc..
