♦Specifications

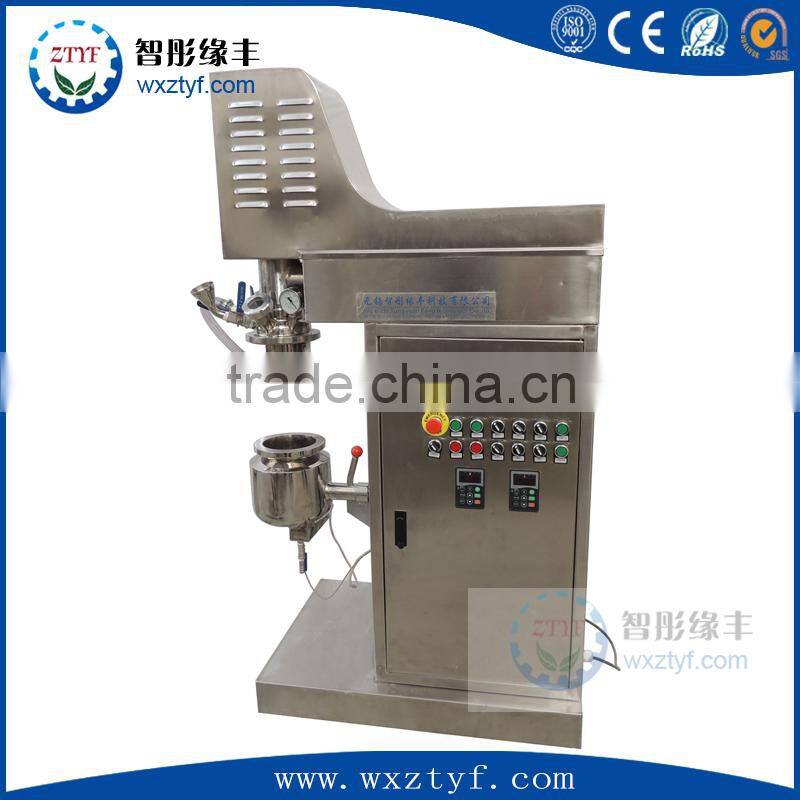

Lab high shear mixer Series is composed of emulsification boiler(fluctuatingcover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. ect,
Work Elements:

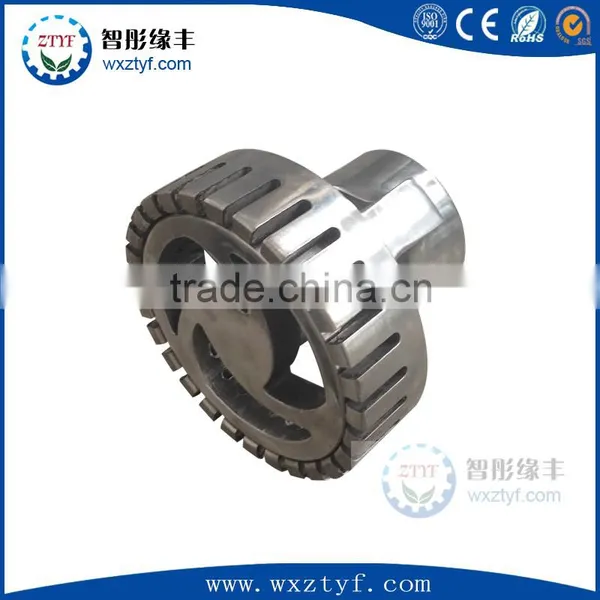

After the materials are in the water boiler and oil boiler to heating & mixing then draw into the emulsification boiler by the vacuum pump, through the middle(fixed) stirrer & teflon Scrapers residues stirrer in the emulsification boiler that sweep the residues on the wall of the boiler, so make the produces of wiped off become the new interface constantly, then the blade cut off ,compress,fold round ,mixing and running to the homogenizer, according to the high shear wheel and the cutting case to strong cutting off,impact,Without rulesmobility, etc. the material by cutting in the cut interstices and turn to a particle of 200nm-2um prompt, because the emulsification boiler is under vacuum state, the bubble that the supplies produce in the course of mixing is taken away in time.
Features:
The pot cover is automatic rising type, the material was directeddraw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work.. the material sliming,emulsification,mixing,dispersing,etc. what will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, the polishing of surface of the mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.)
Specification:
Emulsifyingpot |
Design Volume(L) |
6.5/12.5 |
Capacity(L) |
5/8 |
|
Scraper Stirring Power(kw) |
0.55 |
|
Scraper Stirring Speed(rpm) |
0-86 |
|
Homogenizer power(kw) |
0.1/1.5 |
|
Electrical heating power(kw) |
2 |
|
Homogenizer speed (rpm) |
3500 |
|
Water pot |
Design Volume(L) |
4/7.8 |
Capacity(L) |
3.5/7 |
|
Stirring power(kw) |
0.025/0.09 |
|
Stirring speed(rpm) |
1200 |
|
Electrical heating power(kw) |
1 |
|
|
Oil pot |
Design Volume (L) |
4/7 |
Capacity (L) |
3.5/7 |
|
Stirring power (kw) |
0.025/0.09 |
|
Stirring speed (rpm) |
1200 |
|
Electrical heating power (kw) |
1 |
