Specifications
it's a cheap and professional solution for dew point detection.

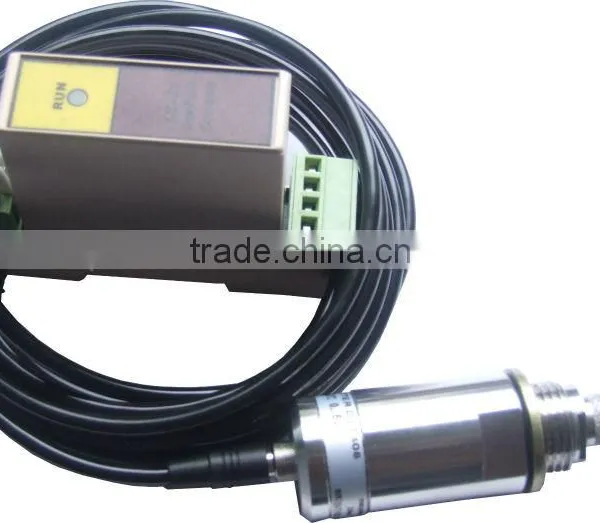

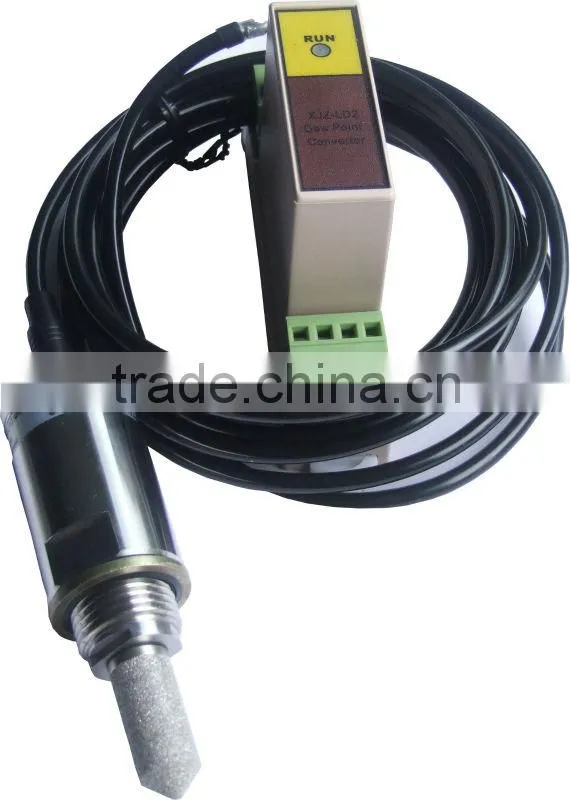

It's composed of a signal converter and a dew point probe.
Model DVT408 dew point probe is manufactured by VAISALA, which output dew point signal is DC 0-5V.
Model XJZ-LD3 signal converter change the DC 0-5voltage signal to 4-20mA current signal for other instrument use.
Feature of Model DVT408 dew point probe:
- Protection of probe: IP64 (NEMA 3S)
- Output signal: DC 0-5V
- Accuracy: ±4°C@ -60°C~0°C, ±3°C@ 0°C~60°C
- Maximum pressure: 50bar (725 psi)
- Work ambient: -5~55°C/ 0~ 99%RH
- Material of probe is 316 stainless steel
- Interface of probe is G1/2'' (outer screw thread)
- Operating voltage: DC 24V
- Analog output: DC 0-5V
Feature of Model XJZ-LD3 dew point converter
- Rating voltage: DC24V
- Connection: screw
- Installation: 35mm standard rail
- Output signal: 4-20mA
- Input signal: DC 0-5V
