1:Specifications of piston 6BT 3802160 3907163
| Item Name | Cylinder Piston Kit |
| Brand | |
| Kit No. | 3802160 |
| Piston OE No. |
3907163 |
| Piston Ring Set |
3802230 |
| Retaining Ring |
3920691 |
| Piston Pin |
3901793 3934048 |
| Engine Type | 6BT |
| Cylinder Bore | 102mm |

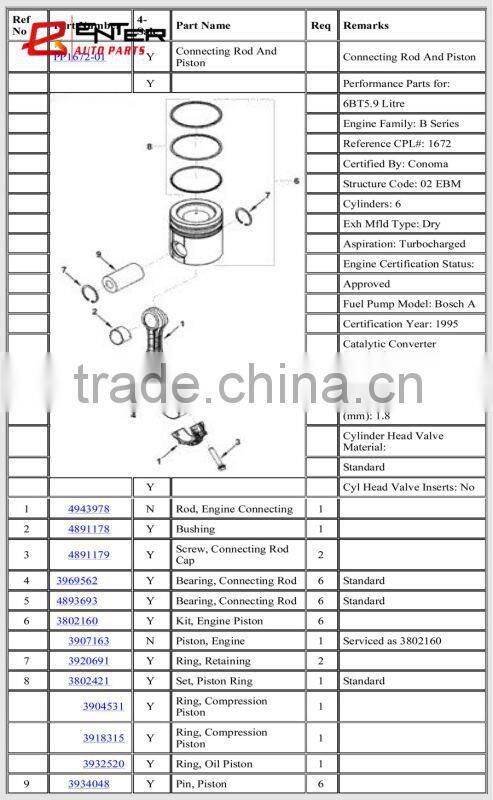

2.Cylinder Piston Kit 3802160 Assembly Drawing

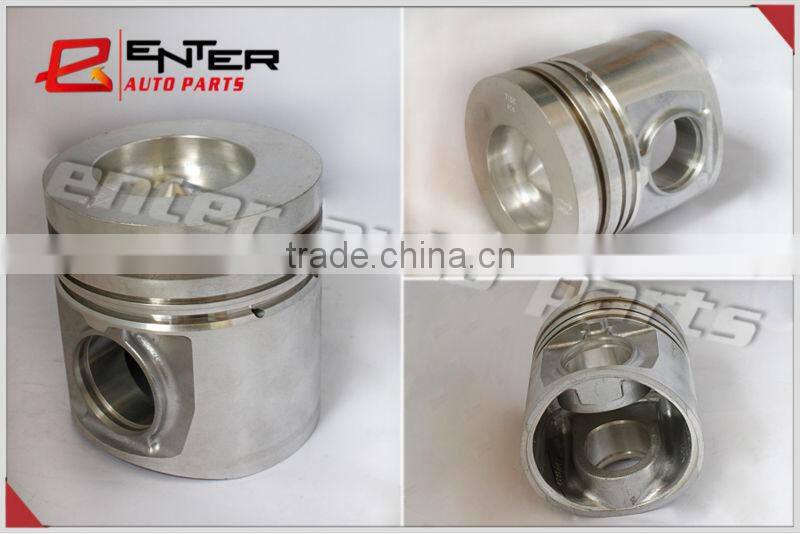

3.More Product Photos
4.Process Flow Diagram
5:We have three types package for piston,as Packing a;Packing b;Packing c. According to your remand,we pack the goods as you hope.
6:Our company also can supply other models piston as below:
| NO. | OE NO. | Engine Model |
| 1 | 4900927 | A2300 |
| 2 | 6205312190 | B3.3 |
| 3 | 6204312190 | B3.3 |
| 4 | 6205312172 | B3.3 |
| 5 | 6204312170 | B3.3 |
| 6 | 6204312141 | B3.3 |
| 7 | A3907163/4991277 | 4BT/6BT |
| 8 | A3908815(+0.50) | 4BT/6BT |
| 9 | A3908816(+1.00) | 4BT/6BT |
| 10 | A3907156/3802100/A3907157/A3907158 | 6BTA |
| 11 | 3928673/3927790/3927802 | 6BTAA |
| 12 | 3930187 | 6BTAA |
| 13 | 3922687 | 6BTAA |
| 14 | 3926631+0.00 serviced as 3802561 | 4BTAA/6BTAA |
| 15 | 3926632=3926631+0.25mm 210hp serviced as 3802562 | 6BTAA |
| 16 | 3926633=3926631+0.50mm 210hp serviced as 3802563 | 7BTAA |
| 17 | 3926634=3926631+0.75mm 210hp serviced as 3802564 | 8BTAA |
| 18 | 3926635=3926631+1.00mm 210hp serviced as 3802565 | 9BTAA |
| 19 | 3509DC2-035 | C series |
| 20 | 3800320 | C Series ISC |
| 21 | 3923537 | C220/240 |
| 22 | 3925878/3802601 | C220/230/245/260 |
| 23 | 3917707/3802263 | C300 20 |
| 24 | 3926963/3919247 | C325 20 |
| 25 | 3992118 | 6C |
| 26 | 3802462 | 6C |
| 27 | 3919564/3923163 | 6C 210PS |
| 28 | 3802474 | 6C 220/240hp |
| 29 | 3923165 | 6C 300PS |
| 30 | 3923163/3802397 | 6CT 210hp |
| 31 | 3929161 | 6CT 215PS |
| 32 | 3923164 | 6CT 240PS |
| 33 | 3919566 | 6CTA |
| 34 | 3919565/3802281 | 6CTA 240hp |
| 35 | 4897512 | ISBe/QSB5.9 |
| 36 | 3972884 | ISBe |
| 37 | 4027072 | ISBe |
| 38 | 4025011 | ISBe/QSB5.9 |
| 39 | 4975313 | ISCe |
| 40 | 3942106 | ISCe |
| 41 | 4933120 | ISCe |
| 42 | 3943367 | ISCe/QSC8.3 |
| 43 | 3800318 | ISCe/6C8.3/QSC8.3 |
| 44 | 5255257 | ISDe |
| 45 | 4939181 | ISDe 245/ISBe6.7 |
| 46 | 4995537 | ISDe |
| 47 | 4995266 | ISF2.8 |
| 48 | 5258754 | ISF3.8 |
| 49 | 4936469/4987914 | ISLe375 |
| 50 | top4941393 skirt3966721 | ISLe |
| 51 | top4941395=4089963 skirt3966721=4941393 | ISLe375 |
| 52 | 5255218 | ISLe/QSL/EURO3 |
| 53 | 4987914-A | ISLe |
| 54 | 4934860 | ISLe/QSB6.7 |
| 55 | 3096682/3096683/3036074 | K19 |
| 56 | 3803313 | K19 |
| 57 | 3070705 | K19 224-3313 |
| 58 | 3096685 | K19/KT38 |
| 59 | 3631246 | KTA38 |
| 60 | 3096681 | K50 |
| 61 | 3044448 | LT10 |
| 62 | top4059948 skirt4070653 | M11/QSM |
| 63 | top4059900 skirt4070653 | M11 |
| 64 | top4059901 skirt4070653 | N11 |
| 65 | 3087634 | N11/N14 |
| 66 | 4923748 | N14 |
| 67 | 4089895 | N14 |
| 68 | 3067555/3095739 | NT855 |
| 69 | 3804413 | NT855 |
| 70 | 3801819 | NT855 |
| 71 | 3804414 | NT855 |
| 72 | 3017248/3017349 | NT855 |
| 73 | 3017349/3695765 | NT855 |
| 74 | 3048808 | NT855 |
| 75 | 3017348/3017349/3095755 | NT855 |
| 76 | 3028706 | NT855 |
| 77 | 3076811 | NT855 |
| 78 | 3051557 | NT855 |
| 79 | 3051555 | NT855 |
| 80 | 3804410 | NT855 |
| 81 | 3051556 | NT855 |
| 82 | 3948465 | QSB5.9 |
| 83 | 3946153 | QSB5.9 |
| 84 | 4934816 | QSB6.7 |
| 85 | 3957795 | S6D102 |
| 86 | 3928673 | S6D102 |
| 87 | 3037413 | V903 |
| 88 | 3957797 | S6D102 |
| 89 | 3181J181 | / |
| 90 | T3135J131 | / |
| 91 | T3135J132 | / |
| 92 | T3135J145 | / |
| 93 | T3135J146 | 1004 1006 |
| 94 | T3135J181L | 1004 1006 |
| 95 | T3135J182 | 1004 1006 |
| 96 | T3135J183 | 1004 1006 |
| 97 | T3135J184 | 1004 1006 |
| 98 | T3135J185 | 1004 1006 |
| 99 | T3135J186 | 1004 1006 |
| 100 | 3135J186A | 1004 1006 |
| 101 | 62401006 | 1004 1006 |
| 102 | T3135J215M | 1006 |
| 103 | 32A17-00100 | S4S/S6S |
| 104 | 12010-10T02 | TD27 |
| 105 | 13101-17040 | 1HD-T |
| 106 | 13101-17020 | 1HD-T |
| 107 | K420-11-SAO K480-11-102 | SS/K2700 |
| 108 | K4Y0-11-SAO | K3500 |
| 109 | K4Y1-11-SAO | K3600 |
| 110 | V101-23-200 | ZB/K4100 |
| 111 | K7Y0-11-SAO | NB-1 B2200 |
| 112 | K6Z1-11-SAO | J2/JS/K2700 |
| 113 | KDAJ2-11-SAO K7Z1-11-SAO OK7Z1-11-SAO | JT |
| 114 | K4Y1-11-SAO OK4Y1-11-SAO | K3600(OG) |
| 115 | / | DCI11 |
| 116 | 04259101 | BFM1013 |
| 117 | 04253313 | BFM1013 |
7:About engine piston 6BT 3802160 3907163 more information as below:
1.Made by OE manufactory!
2.Got IS014001 OHSAS8001 TS16949 certificates!
3.Form a complete set for many diesel engine works at home and abroad,batch exporting piston to overseas market!
