Cast Copper Bridge and Tunnel Earth Terminal FC-04
- Chinese main ports
- T/T Money Gram Credit Card
You May Like
-
Pier/bridge Pier/abutment Earth Terminal With Best Price
-
Concrete Wall Panel Installation Machine
-
High Efficient Tractor With Front Loader
-
No. 1 Henan Victory Moveable Concrete Cattle Cow Dung Leakage Slats Machine Equipment for Pig Cow Duck Dung Machine
-
QTJ4-26 High Quality Brick Making Machine Made in China
-
Henan Victory, Foam Concrete Block Machine Quality Choice
Product Details
| Place of Origin | Henan, China | Brand Name | VICTORY | |
| Model Number | FC-04 | Type | Splice |
Product Description
Specifications
bridge and tunnel earth terminal1.non-ferrous metal casting
2.cast copper made
3.used in high-speed rail,bridge,pier
cast copper bridge and tunnel earth terminal for selling
Introduction:
FC series earthing terminal are metal casting or mechanical parts for grounded system or. Made by selected 99.99% high conductive copper cathode or 316 stainless steel.
Application:
Mainly used in high-speed rail,electrified railway,bridge and tunnel,pier etc.
Technial data:
Items | Model | Terminal diameter | Terminal height | Total height | Steel rod diameter | Female thread diameter | Weight |

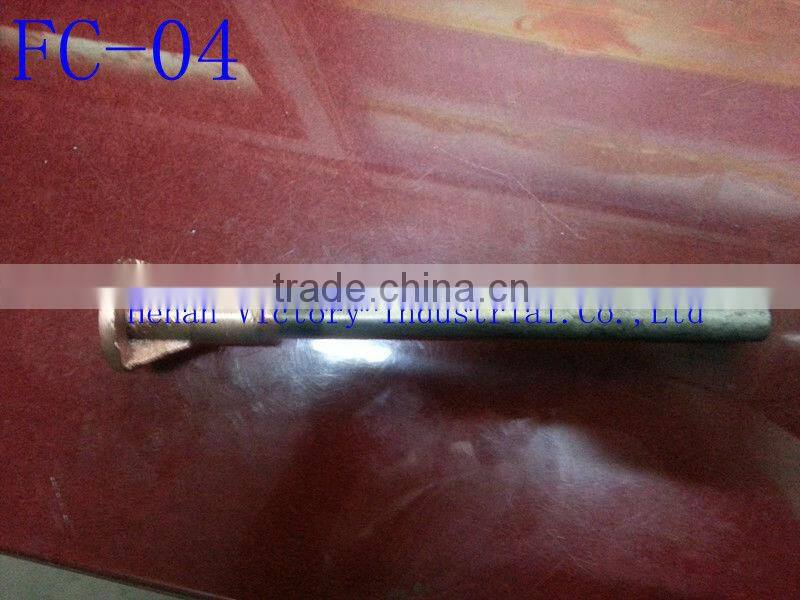

Cast copper terminal | FC-04 | 48 | 60 | 130 | 16 | 16 | 490 |

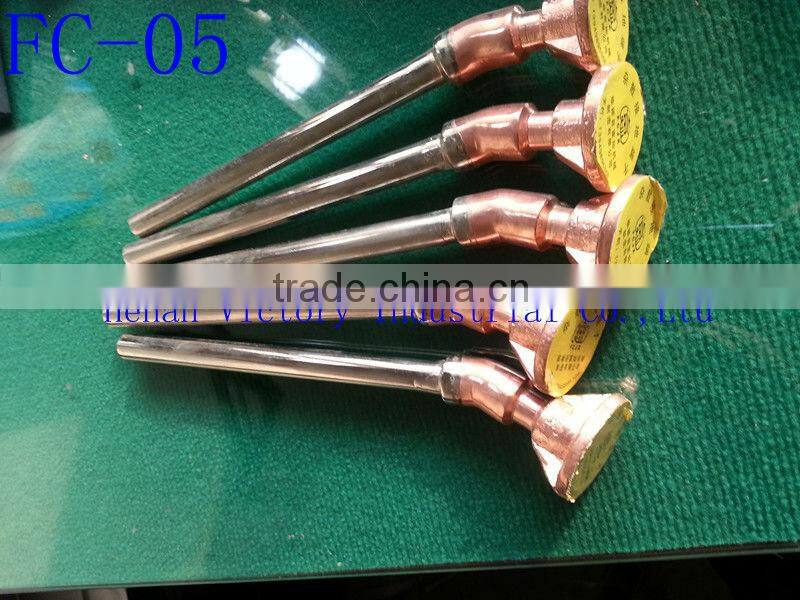

Cast copper terminal | FC-05 | 48 | 80 | 245 | 16 | 16 | 610 |

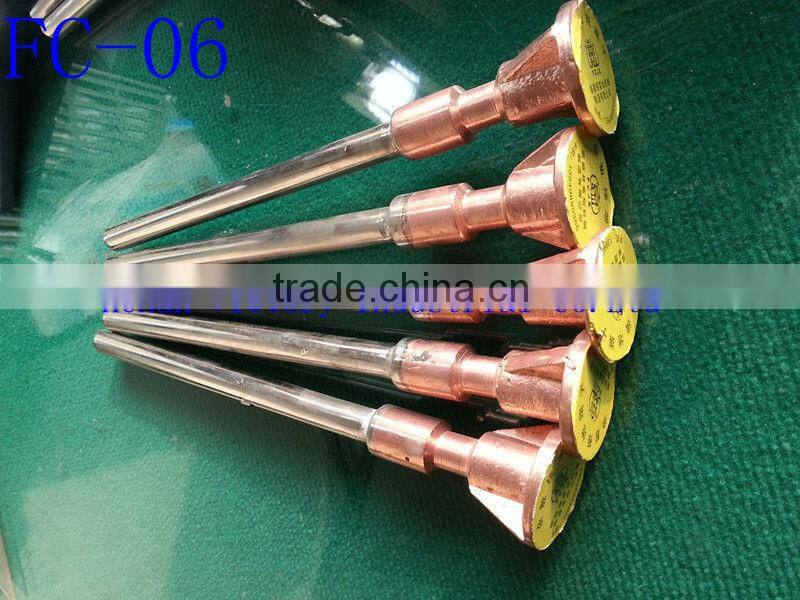

Cast copper terminal | FC-06 | 48 | 85 | 300 | 16 | 16 | 660 |
Why choose us?
Big Ability
*We supply various standard size non-ferrous metal castings,in high quality and lower price than similar suppliers.
*Can provide all kinds of standard size non-ferrous metal pouring castings according to customers ‘ requirements.
Many Experiences
*Our products had been heavy used in the passenger dedicated line in China.
Quality gurantee:
*Detected by Product quality supervision and inspection center on a regular basis.
Inspection
- The ministry of railways product quality supervision and inspection center for communication signal inspection report
No.
Inspection item
Technical requirements
unit
Inspection result
1
C
≤0.08
%
0.02
2
Cr
≥16
%
17.00
3
Ni
≥5
%
12.31
4
Mo
≥2
%
2.09
5
Connect area between terminal and rebar
≥200
mm²
516.7
Wuhan high voltage research institute test inspection report
No.
Inspection item
Standard requirements
Inspection result
evaluate
1
DCR
<0.5×106µΩ
Before test: Short-term tolerance current
Environment temperature:25.5°C
DCR:335µΩ
Meet the requirements
After test: Short-term tolerance current
Environment temperature:24.5°C
DCR:301µΩ
Meet the requirements
2
Short-term tolerance current testing
Short-term current:40kA
Through-flow time:≥0.1s The welds not fusing
After test of 40.2 kA/0.2s,the sample welds not fusing
Meet the requirements
3
Tensile strength testing
≥167MPa
Tensile strength:93.5kN
Section :200mm²
467.5MPa
Meet the requirements
picture:
