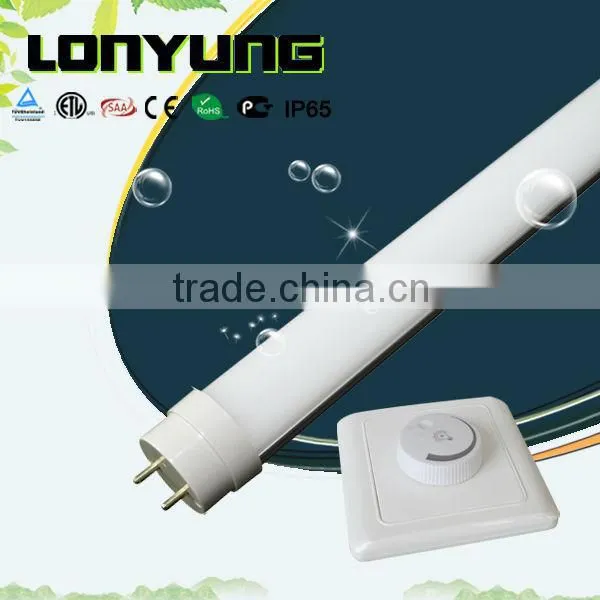

2013 New Good Price T8 Led Tube Light SAA TUV ETL C-tick & CE With High Quality 18W 21W 44W 3 Years Warranty t8 Flourescent Lamp

2013 New Good Price T8 Led Tube Light SAA TUV ETL C-tick & CE With High Quality 18W 21W 44W 3 Years Warranty t8 Flourescent Lamp thumbnail-1
2013 New Good Price T8 Led Tube Light SAA TUV ETL C-tick & CE With High Quality 18W 21W 44W 3 Years Warranty t8 Flourescent Lamp photo-1
US$ 10 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
3014 led chip
Warranty(Years):
3
Input Voltage(V):
AC12AC100-277V AC180-240V
Contact Supplier Request Quote Chat Now
Guangdong Lonyung LED Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 3014 led chip
Warranty(Years) 3
Input Voltage(V) AC12AC100-277V AC180-240V
Lamp Power(W) 21
Lamp Luminous Flux(lm) 1880
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification BV, CE, C-tick, ETL, LVD, SAA, UL
Place of Origin Guangdong, China
Brand Name LONYUNG
Model Number T8

Specifications

T8 Patent tube l
1:AC100-277V
2:ETL C-tick SAA TUV CE RoHs
3:USA Canada Australia Europe market
4:12W 18W 22W 32W 44W

2013 21w  1200mm T8 LED tube light remote control



1)Amercian,Canada Europe Australia Market ETL No:4004227 One end power( with stater)  or Two end power; ETL UL CE RoHS TUV C-tick Approval



2)China Patent No: 201120066365.6,201130043458.2 ,had applied PCT patent

   one city will be one customers,agent,distributor





2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



3)LED T8 Tube Specifications



Model watts LED quantity Luminous Flux(lm) Size(mm) Power Consumption
LY-T8L450-7W 7W  72pcs 630LM 450mm 7W
LY-T8L600-9W 9W 96pcs 810LM 600mm 9W
LY-T8L900-13W 13W 120pcs 1170LM 900mm 13W
LY-T8L1200-15W 15W 160pcs  1350LM 1200mm 15W
LY-T8L1200-18W 18W 192pcs 1620LM 1200mm 18W
LY-T8L1200-21W 21W 216pcs 1800LM 1200mm 21W
LY-T8L1500-24W 24W 240pcs 2100LM 1500mm 24W
LY-T8L1800-25W 25W 256pcs 2200LM 1800mm 25W
LY-T8L2400-32W 32W 330pcs 2750LM 2400mm 32W
LY-T8L2400-44W 44W 480pcs 3800LM 2400mm 44W





4)Advantages of T8 tube light



Driver Internal,driver deisign ourslef,EMC CE ,UL Standard



Directly installing,suitable for new installing project



Running without Ballast and starter.



good aluminum for heat dissipation



and solve heat problem with 3014 smd chips



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp





5.PC cover & CCT of T8 T5 integrated tube light:



Color Temperature Warm White(2700K-3200K)
Natural White( 4000K-4500K)
Cool White( 6000K-6500K)
PC Cover Clear PC
Frosted PC





6.Attention about the T8 tube



1 Before installation, check whether the power is suitable. The tube must work under the right voltage according to specification.

2 Cut off the power first for safety

3 Don’t take the tube apart

4 Recommend indoor use

5 Please use it in a ventilation environment and keep it from water.

6 DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative),     will create a short circuit.



 2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp





7. installion of  LED T8 tube





1,Standard Installation



Connect directly to AC power .This is the most saving energy mode.



2,Replacing Installation



If there is a starter on the old fluorescent light fixture. Remove the starter.



3,Remove Electronic Ballast



If there is no starter on the fluorescent light fixture , Remove the electronic ballast.



A.one end power connection



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



B.Two- end power

2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



8.)Application of T8 LED tube

1.Houses, offices, exhibitions, meeting rooms

2.hotels, restaurants, schools, factories, hospitals

shops, storages, roads, streets, etc



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



9) Certification for T8 led tube



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



 10) Test reports for  T8 led tube







 11) Package for T8 led tube



   2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp



12.. :Cooperation of T8 Integratived bracket Tube



1:New patent and New design Tube light,mainly for Eruope and American Market

2:Each coutry we only supply two one if agent

3:Build long-term coopeartion,win-win togeter



2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp





Welcome to vist our factory  which best service and top qulaity T8 T5 integrative tube



 2013 new good price T8 led tube light SAA TUV ETL C-tick & CE with high quality 18W 21W 44W 3 years warranty t8 flourescent lamp





Payment Terms L/C,  T/T,  Credit Card,  Western Union,  Paypal
Minimum Order 10pcs
Lead Time / Delivery Time 7 Day(s)
Sample Available Yes
Delivery Details 3-5 days for sample; 7-10days for bulk
FOB Port Zhongshan or Shenzhen
Loading Info by express, by air or by sea
Packing Info Carton package, 20pcs/ctn,
Target Markets Africa,  Eastern Europe,  Hong Kong/ Macao/ Taiwan,  Japan & Korea,  Latin America,  Mainland China,  Middle East,  North America,  Northern Europe,  Oceania,  South Asia,  Southeast Asia,  Western Europe
