Specifications

Anti-Climb 358 Fence
1.SGS Factory
2.PVC coated/ Galvanized
3.Anti-climb, Anti-cut, High density
4.ISO9001:2008

358 security fencing,high security fencing,358 anti-climb fence

Popular Specification:

Mesh size	Wire diameter	Width	Height	Post height	Post type	Fitting
1 / 2' X 3' (12.7 X 76.2 mm)	3.0mm 3.5mm 4.0mm	2000mm 22000mm 2500mm	1000mm 1200mm 1500mm 1800mm 20000mm 2200mm 2400mm 3000mm	1400mm 1600mm 2000mm 2300mm 2500mm 2800mm 3000mm 3800mm	"C" post   round post  square post Rectangle post	Flat bar

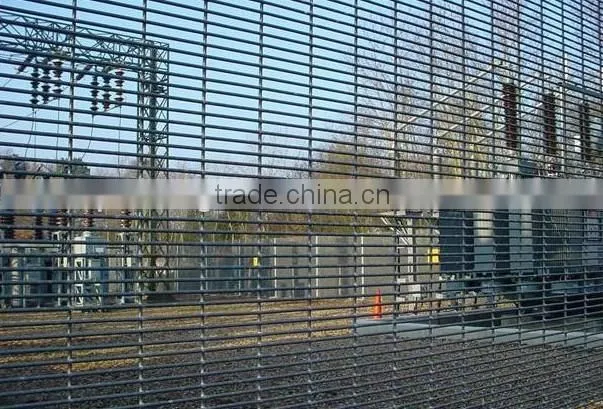

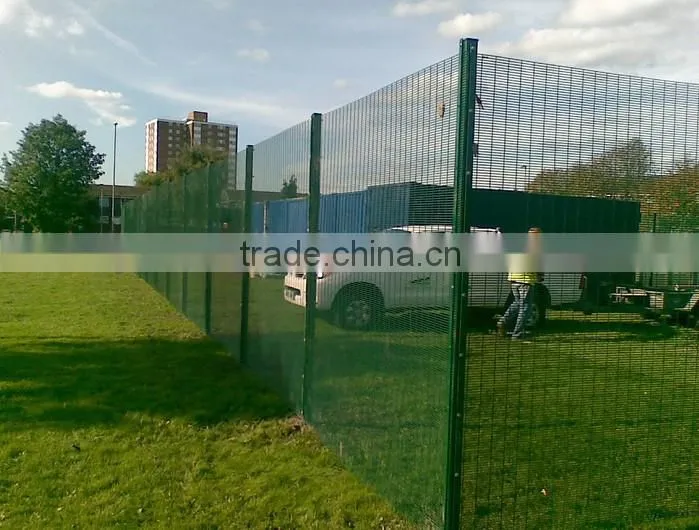

 Typical applications:

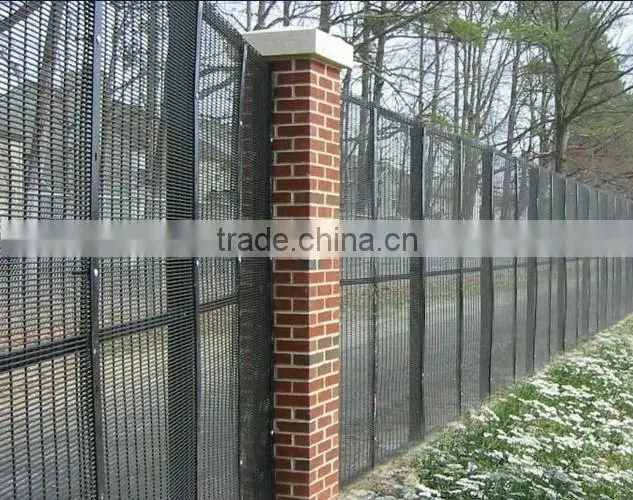

· Industrial and commercial sites

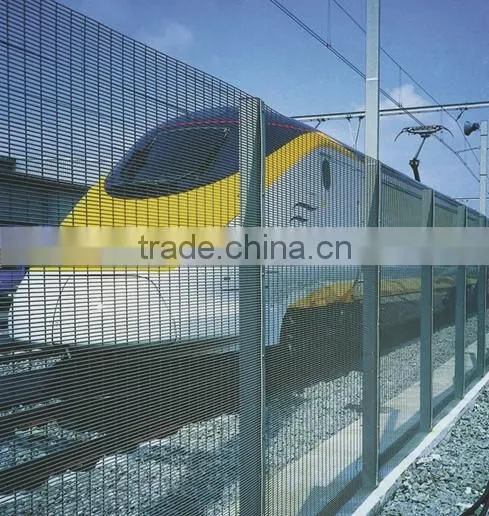

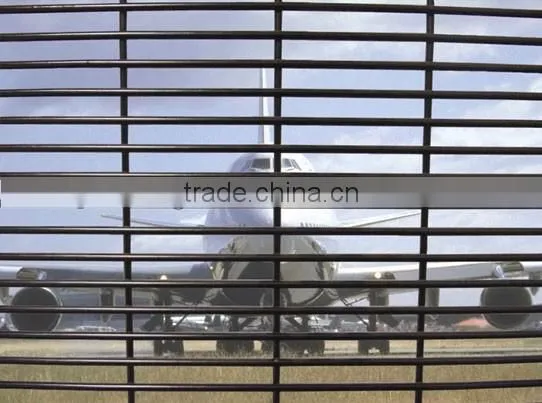

· Airports, railways, schools, local authorities

· Public utilities, military

· Secure units & prisons

 Benefits:
· Unsurpassed welded mesh panel security
· A range of heights up to 5.2 metres
· Anti-climb, anti-cut
· Attractive appearance
· Vandal resistant
· Quick and simple installation

· Cost effective
· Low maintenance

· Standard system

Fixings:

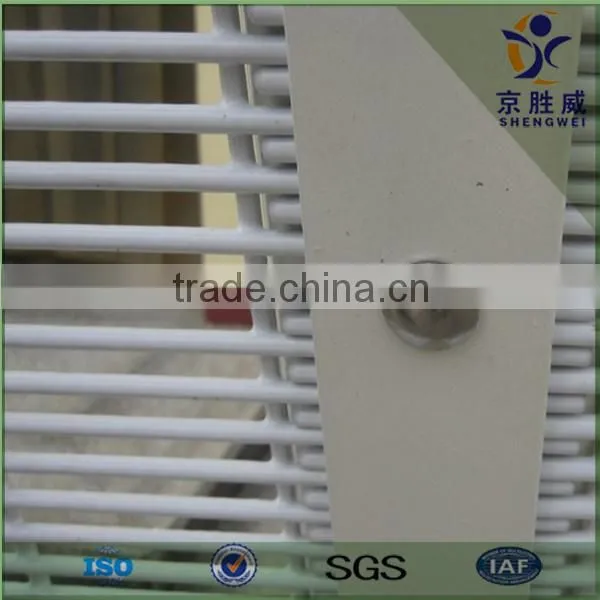

Full length clamp strip: 30mm x 5mm Bolts: Anti-vandal pin hex M8 x 40mm Fixings: Bolt through or threaded inserts set at 400mm max. (200mm available on request)

Post Section:

To 2100mm high: 60mm x 60mm

To 2400mm high: 70mm x 70mm To 3600mm high: 80mm x 80mm

To 5200mm high: 100mm x 50mm

To 6000mm high: 120mm x 60mm

Finish:

Hot dipped galvanised

Galvanised and polyester powder coated

Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white

Other colours: All other RAL colours available.

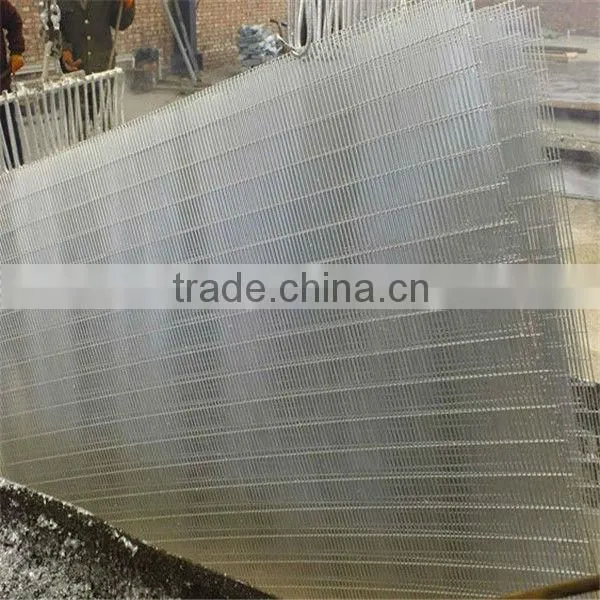

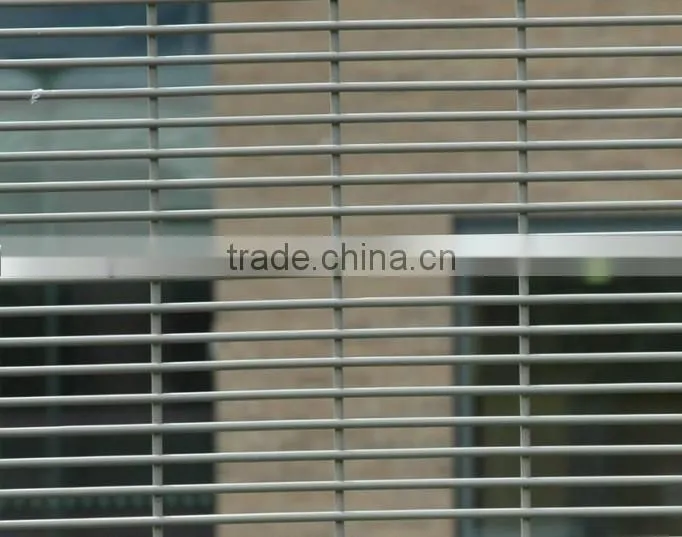

Extreme Mesh panels:

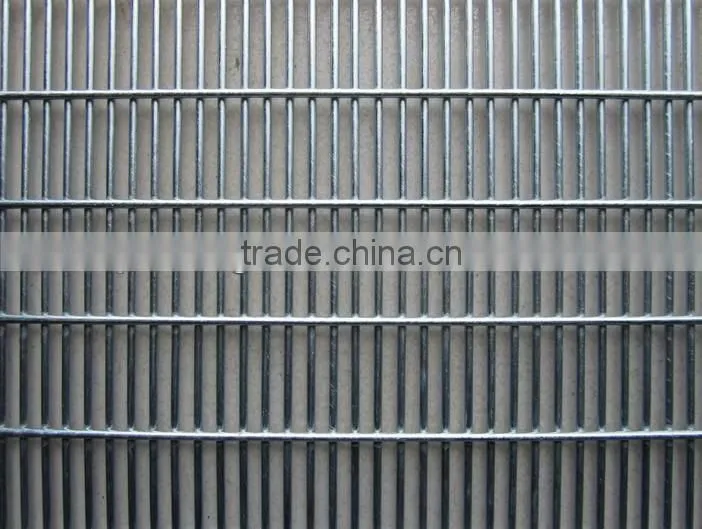

The Extreme panels have a mesh size of 76.2 x 12.7 mm formed from 4 mm vertical and horizontal wires welded at every intersection.
Extreme posts:

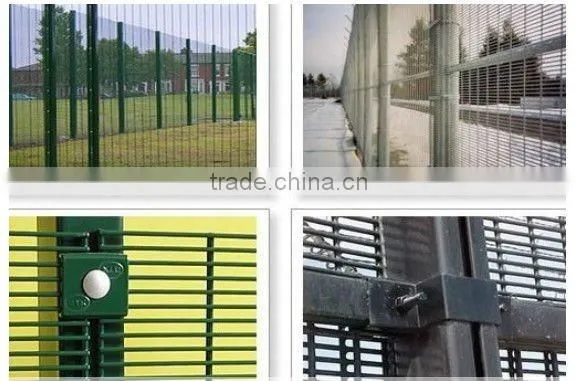

The Extreme posts range from 50 x 50 to 120 x 60 rolled hollow section (RHS) with plastic caps based on fence height. A full-length 40 mm wide clamp strip with M8 cup square bolt and Permacone nuts at 300 mm (approx) vertical centres, ensure a secure anti-vandal fixing.
FenceTek Gates:

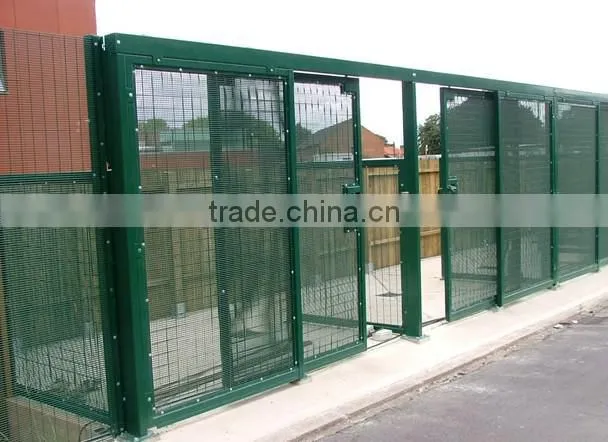

Gates of all sizes and configuration are manufactured to the highest standards and maintain the site security offered by the fences. Swing, sliding cantilever and bi-folding gates are offered for manual use or automated by the specialist department of FenceTek Limited. The Gate Automation Department can offer a high quality and reliable 'Speed Gate'.

Technical / installation:
Standard heights: 1800mm, 2100mm, 2400mm, 3000mm, 4200mm, 4800mm and 5200mm.
The Extreme 358 security fence System can be manufactured upon request to suit projects requiring:
· Bolting down
· Wall mounting
· Burying
· Additional security toppings

Company introduction :

Anping SHENGWEI Wire Mesh Manufacturing Co., Ltd was found in 2003.We are located in Anping, Hebei--"the Base of Wire Mesh Products".

10 years experience , strictly Quality control , high quality and service assure our products exported to America,Europe,South-east Asia and Africa.
