Specifications
1.ROHM thermal head2.Wide voltage range
3.For Fujitsu FTP638MCL103
4.Cost-effective thermal printer mechanism
1. Why choose us?
1) ROHM's thermal printer head.
2) Over 20 years' experience of engineers team.
3) Unique product design & obtained Chinese patents certificates.
4) Advanced Japan equipments.
2. Product basic information
Brand: Xiamen Jingxin
Name: 3 inches high speed kiosk thermal printer mechanism
Model: JX-3R-01HS
Material: ROHM TPH, FPC, rack, drive, screw, platen, gear, spring and lead paper holder etc.
| Printing method: | Thermal dot line printing |
| Printing width: | 72mm |
| Printing speed: | 170mm/s |
| Printing life: | ≥50km |
| Motor voltage: | 10-24VDC |
| Paper cutting: | Manual |
| Path of paper traveling: | Perpendicular bend |
| Operating machine noise: | 60db (max) |
| Mass: | 49.6g |
| Size: | L=92mm,W=33mm,H=15.5mm,L(FPC)=69mm |
| Use of: |
Portable printer/ POS payment terminals |

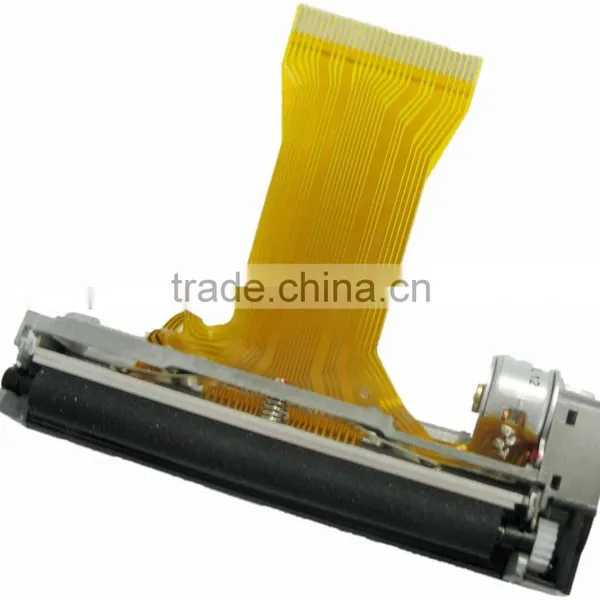

3. Products pictures
4. Certificates
1)
Certificate Standard: ISO 9001:2008
Number: CN-0212Q1127OROS
Issue Date: 13-Mar-2012
Expiry Date: 12-Mar-2015
2 )
Certificate Standard: ROHS
Number: SH9033426/CHEM
Issue Date: 18-Mar-2009
3 ) Patents of our company
5. Factory Views
