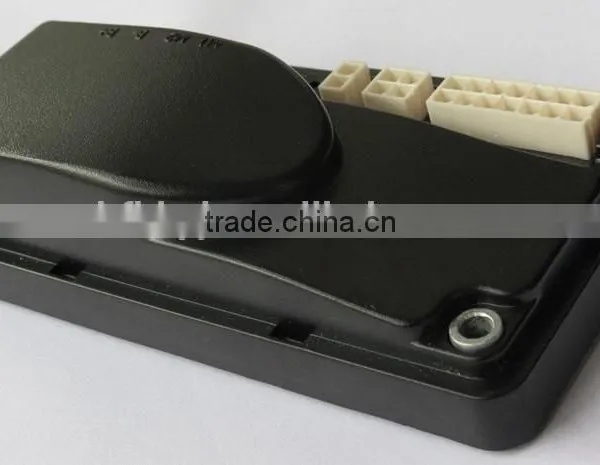

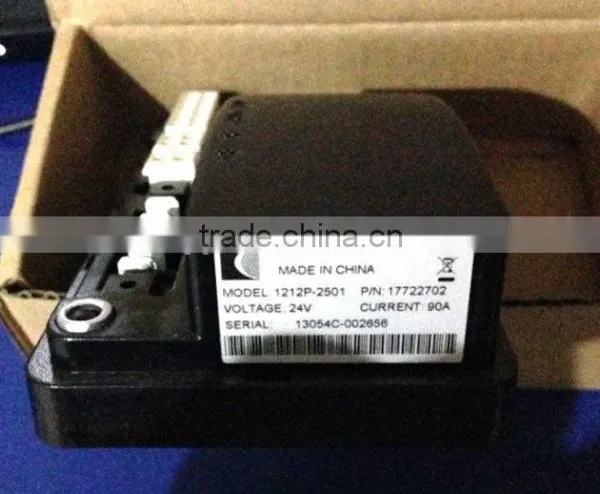

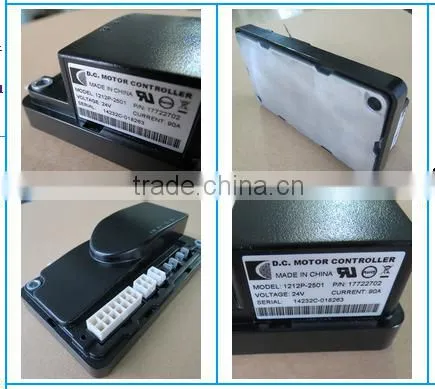

Help CenterHigh Quality Forklift Parts 24V CURTIS Motor Controller 1212-2501
Related Products
-
High Quality Forklift Parts 24V Curtis DC Motor Controller 1228-2430NegotiableMOQ: 1 Piece -
High Quality Forklift Parts Curtis AC Motor Controller 1238-6401NegotiableMOQ: 1 Piece
-
High Quality Forklift Curtis Motor Controller 1243-4220NegotiableMOQ: 1 Piece
-
High Quality Original Curtis Motor Controller Programmer 1313K-4401US$ 200 - 450MOQ: 1 Piece
-
High Quality Forklift Parts Curtis Controller 1266-5201US$ 1 - 300MOQ: 1 Piece
1,Production information:
The 1212 is designed for use in low power DME applications such as micro-scooters, mini-scooters, foldable scooters, and low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its programmable options also allow it to be used on any low power permanent magnet motor application.
Specifications:
. Nominal input voltage: 24 V
. PWM operating frequency: 15.6 kHz
. Electrical isolation to heatsink (min.): 500 V
. Minimum motor resistance: 160 mΩ (45 amp models); 120 mΩ (70 amp and 90 amp models)
. B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)
. KSI input current (typical): 80 mA
. Logic input current (typical): 1 mA
. Horn output current (max.): 15 mA
. Lift lockout output current (max.): 50 mA [1212P only]
. BDI output voltage, resistance (max.): 0–5 V, 10 kΩ
. LED output current (max.): 15 mA
. Electromagnetic brake coil resistance (min.): 32 Ω
. Throttle type: resistance or voltage; single-ended, inverted single-ended, wigwag, inverted wigwag, or unipolar
. Storage ambient temperature range: -40°C to 65°C (-40°F to 149°F)
. Operating ambient temp. range: -25°C to 50°C (-13°F to 122°F)
. Heatsink overtemperature: linear cutback starts at 80°C (176°F); complete cutoff at 105°C (221°F)
. Heatsink undertemperature: cutback starts at -10°C (14°F) and is reduced linearly to 50% at -25° (-13°F)
. Undervoltage cutoff: 14 V
. Overvoltage cutoff: 34 V
. Package environmental rating: ISTA 2A; electronics sealed to IPX5
. Weight 0.3 kg (0.7 lbs)
. Dimensions (W× L×H) 72 × 131 × 39 mm (2.8" × 5.2" × 1.5")
2,Package :
Normally we use the standard exporting packaging , we also can according to clients' request .
3,Company profile :
Hefei Huanke Forklift Parts Co., Ltd, is a professional supplier of spare parts in China. Our company specializes in various kinds of pallet truck parts and forklift parts for both domestic and international markets.
Our product category covers forklift control system, running system, drive system, hydraulic system etc. Controller, contactor, sensor, PU wheel and other parts are supplied by our Huanke company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.
4,Contact person
Jessica Qi
Mobile: +86 156 0968 8112
Tel: +86 551 6336 8209
Fax: +86 551 6336 8013
