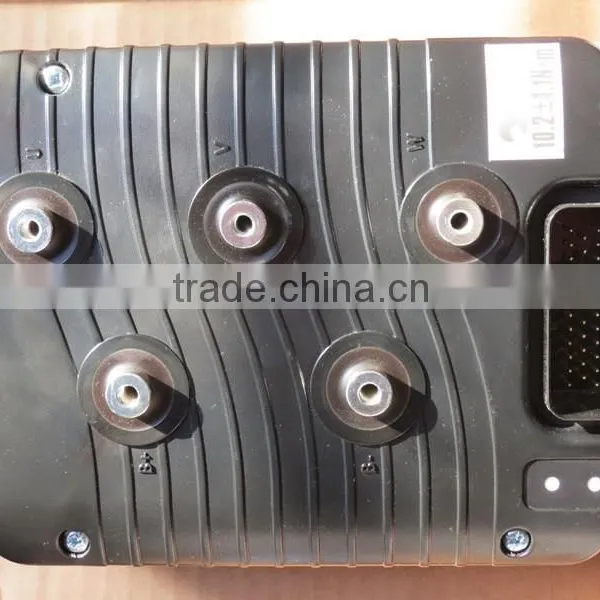

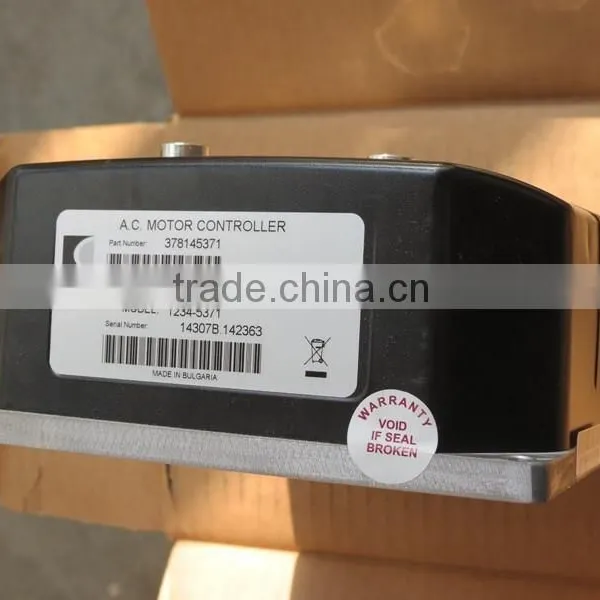

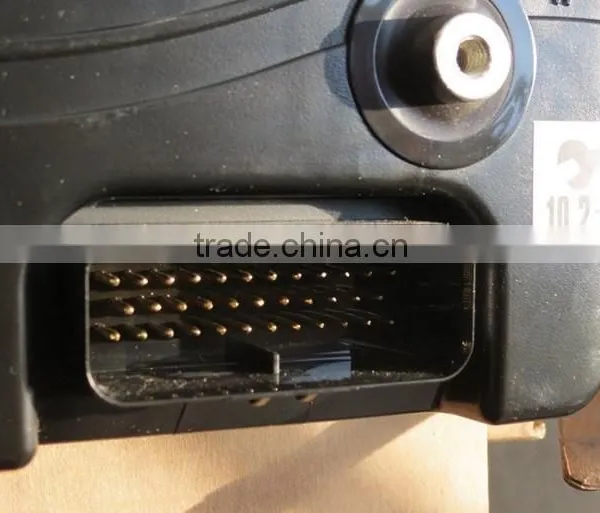

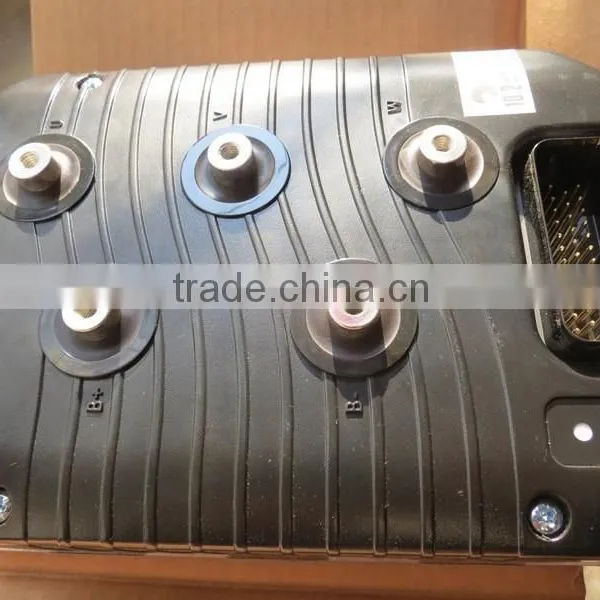

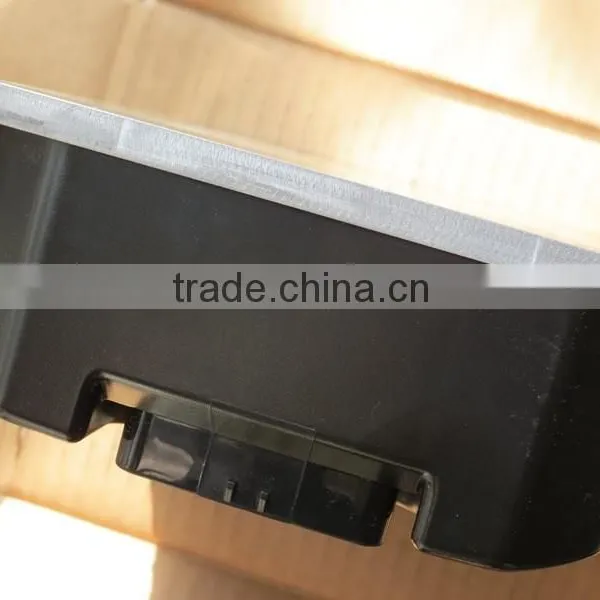

Help CenterForklift Parts CURTIS AC Motor Controller 1234-5371 350A
Related Products
-
High Quality Forklift Parts CURTIS AC Motor Controller 1234-5271 275ANegotiableMOQ: 1 Piece -
High Quality Forklift Parts Curtis dc Motor Controller 1204 -5201NegotiableMOQ: 1 Piece
-
High Quality Forklift Parts Curtis Series dc Motor Controller 1204 -5301NegotiableMOQ: 1 Piece
-
High Quality Forklift Parts Curtis dc Controller 1221M-6701US$ 1 - 300MOQ: 1 Piece
-
High Quality Forklift Parts Curtis DC Motor Controller 1219-8406 (HELI DQKC-025)US$ 1 - 300MOQ: 1 Piece
1, Specification:
. Curtis Model: 1234-5371
. Nominal input voltage: 48V (default setting) or 36V
. 2 Minute RMS Current Rating (amps): 350
. 2 Minute RMS Power Rating (kVA): 19.6
. MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
. MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
. Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, . . 0–5V, etc.
. Operating Ambient Temperature Range: -40°C to 50°C
. Internal Heatsink Operating Temperature Range: -40°C to 95°C
. Storage Ambient Temperature Range: -40°C to 95°C
. Package environmental rating: IP65
. Dimensions: L212xW155xH75 mm
. Net Weight: 2.84 kg
. Meets or Complies with relevant US and International Regulations:
- EMC: Designed to the requirements of EN12895
- Safety: Designed to the requirements of EN1175
- IP65 Rated per IEC 529 UL recognized
- Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.
2,Product information:
Curtis 1234 AC induction motor controllers deliver smooth power unlike any previous vehicle control system. They provide unprecedented flexibility and power through inclusion of a field-programmable logic controller embedded in a state-of-the-art motor controller.
The embedded logic controller runs a fully functional field-oriented AC motor control operating system (OS) that can be user-tailored via parameter modification. The OS also contains logic to execute OEMdeveloped software, called VCL, that can be used to enhance the controller capabilities beyond the basics.
VCL (Vehicle Control Language) is an innovative software programming language developed by Curtis. Many electric vehicle functions are uniquely built into the VCL code, and additional functions can be OEM-controlled using VCL code. VCL opens new avenues of customization, product differentiation, and responsiveness to the market.
The CAN bus communications included in the 1234, as well as in many other Curtis products, allow these AC induction motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that often reduce the cost of the system. Curtis 1234 controllers are the ideal solution for traction, hoist, dual drive, and other motor drive and vehicle control needs
3,Package :
Normally we use the standard exporting packaging , we also can according to clients' request .
4,Company profile :
Hefei Huanke Forklift Parts Co., Ltd, is a professional supplier of spare parts in China. Our company specializes in various kinds of pallet truck parts and forklift parts for both domestic and international markets.
Our product category covers forklift control system, running system, drive system, hydraulic system etc. Controller, contactor, sensor, PU wheel and other parts are supplied by our Huanke company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.
