1,Product information :

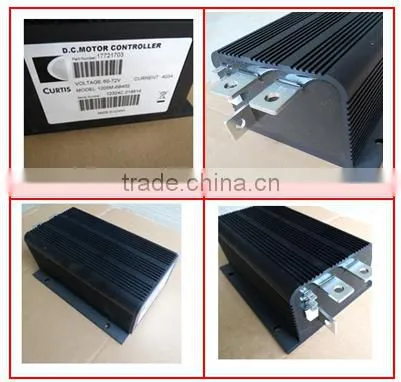

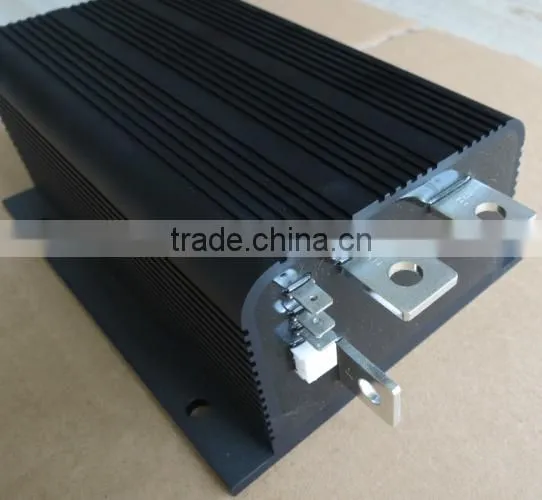

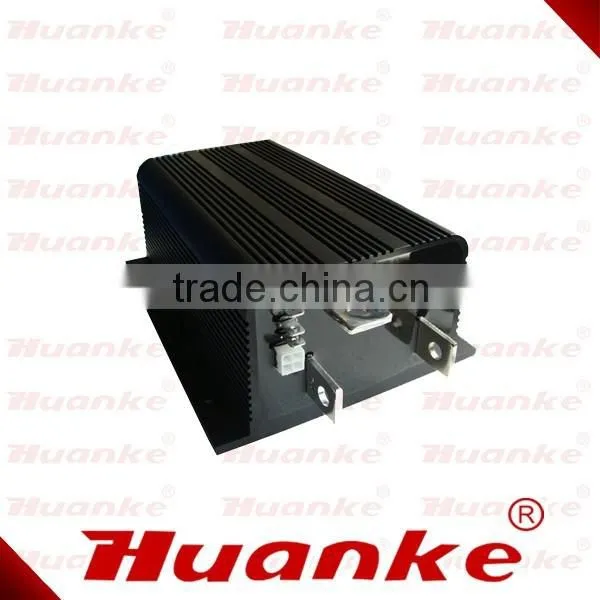

Curtis 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1205 controllers, with the added functionality of being programmable — via the curtis model 1313-4401 handhold programmer or the 1314 PC programming station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
Curtis 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.
Specification:
Nominal input voltage: 36/48 V (1205M-5601 has two available battery voltage settings. The voltage can be set to either 36 volts or 48 volts.)
. PWM operating frequency: 15 kHz
. Electrical isolation to heatsink (min.): 500 V
. KSI input current (no contactors engaged): < 60 mA without programmer; <130 mA with programmer
. Logic input current: <1 mA
. Status LED output current (max.): 2 mA
. Throttle type: 2-wire 0 – 5kΩ, 2-wire 5kΩ – 0, or 0 – 5V
. Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
. Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
. Package environmental rating: ISTA 2A; electronics sealed to IP65
. Weight: 2.7 kg
. Dimensions : 199 × 146 × 77 mm
2,Package :
Normally we use the standard exporting packaging , we also can according to clients' request .
3,Company profile :

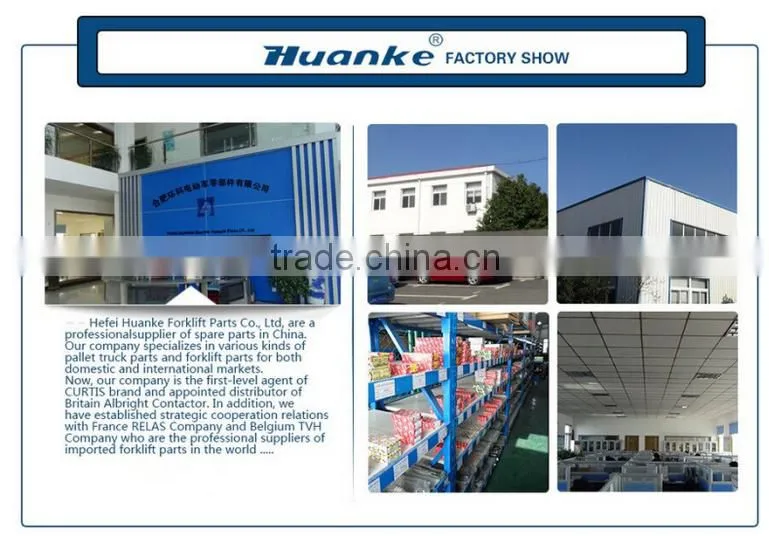

Hefei Huanke Forklift Parts Co., Ltd, is a professional supplier of spare parts in China. Our company specializes in various kinds of pallet truck parts and forklift parts for both domestic and international markets.
Our product category covers forklift control system, running system, drive system, hydraulic system etc. Controller, contactor, sensor, PU wheel and other parts are supplied by our Huanke company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.
4,Contact person
Jessica Qi
Mobile: +86 156 0968 8112
Tel: +86 551 6336 8209
Fax: +86 551 6336 8013
