1,Product information;

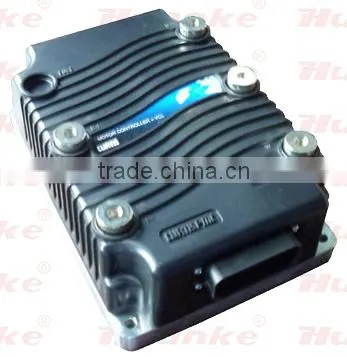

Curtis 1236 AC induction motor controllers deliver smooth power unlike any previous vehicle control system. They provide unprecedented flexibility and power through inclusion of a field-programmable logic controller embedded in a state-of-the-art motor controller.
The embedded logic controller runs a fully functional field-oriented AC motor control operating system (OS) that can be user-tailored via parameter modification. The OS also contains logic to execute OEMdeveloped software, called VCL, that can be used to enhance the controller capabilities beyond the basics.
VCL (Vehicle Control Language) is an innovative software programming language developed by Curtis. Many electric vehicle functions are uniquely built into the VCL code, and additional functions can be OEM-controlled using VCL code. VCL opens new avenues of customization, product differentiation, and responsiveness to the market.
The CAN bus communications included in the 1236, as well as in many other Curtis products, allow these AC induction motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that often reduce the cost of the system. Curtis 1236 controllers are the ideal solution for traction, hoist, dual drive, and other motor drive and vehicle control needs
Specifications:

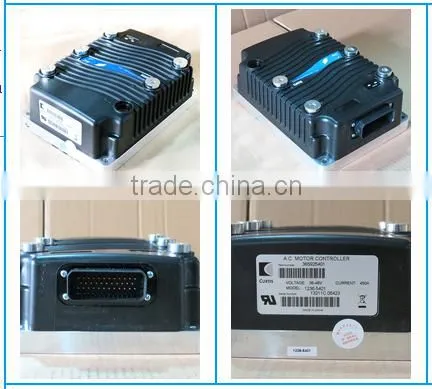

. Curtis Model: 1236-5401
. Nominal input voltage: 48V (default setting) or 36V
. 2 Minute RMS Current Rating (amps): 450
. S2-60 Minute RMS Current Rating (amps): 205
. MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
. MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
. Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
. Operating Ambient Temperature Range: -40°C to 50°C
. Internal Heatsink Operating Temperature Range: -40°C to 95°C
. Storage Ambient Temperature Range: -40°C to 95°C
. Package environmental rating: IP65
. Dimensions: L232xW165xH85 mm
. Net Weight: 4.35 kg
2,Package :
Normally we use the standard exporting packaging , we also can according to clients' request .
3,Company profile :
Hefei Huanke Forklift Parts Co., Ltd, is a professional supplier of spare parts in China. Our company specializes in various kinds of pallet truck parts and forklift parts for both domestic and international markets.
Our product category covers forklift control system, running system, drive system, hydraulic system etc. Controller, contactor, sensor, PU wheel and other parts are supplied by our Huanke company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.
4,Contact person
Jessica Qi
Mobile: +86 156 0968 8112
Tel: +86 551 6336 8209
Fax: +86 551 6336 8013
