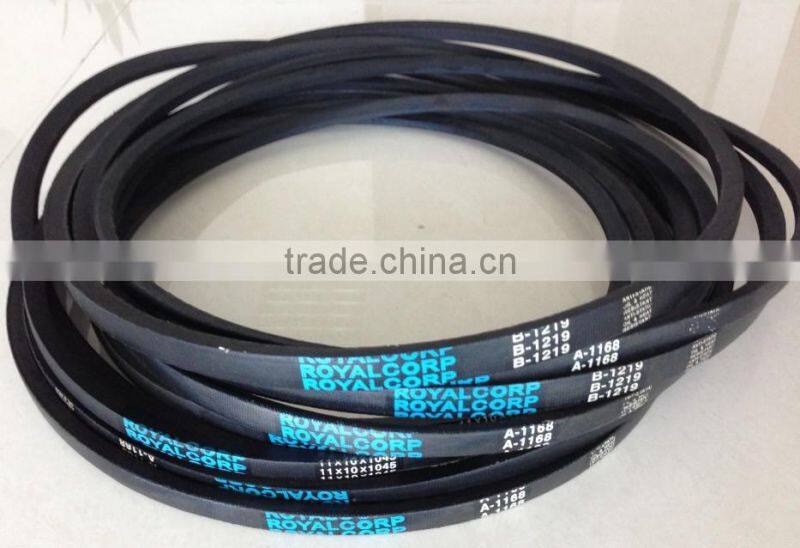

We are a professional manufacturer and suplier for all kinds of rubber belt, power transmission belt, such as rubber v-belts, cogged v-belt, variable speed v-belt, banded v-belt, poly v-belt, automotive timing belt, industrial rubber timing belt, agricultural harvest machine belt, scooter belt, ATV belt, conveyor belt, flat transmission belt, etc .
Adopting scientific technical composition, specially selected first class rubber material and low elongation reinforce, our V belt is in a accordance with related international standard
V-BELTS SPECIFICATIONS
| Section | Wrapped | Width(dp) mm | Top Width(b) mm | Height(h) mm | Angle(a) | Length Range mm | Inch |
|---|---|---|---|---|---|---|---|
| V-BELTS | 9.5,FM | 9.5 | 10 | 7 | 40 | 380~15000 | 15”~590” |
| A / (12.5) | 11 | 13 | 8 | 40 | |||
| B / (17) | 14 | 17 | 11 | 40 | |||
| C / (22) | 19 | 22 | 14 | 40 | |||
| D / (32) | 27 | 32 | 19 | 40 | |||
| E / (38) | 32 | 38 | 25 | 40 |

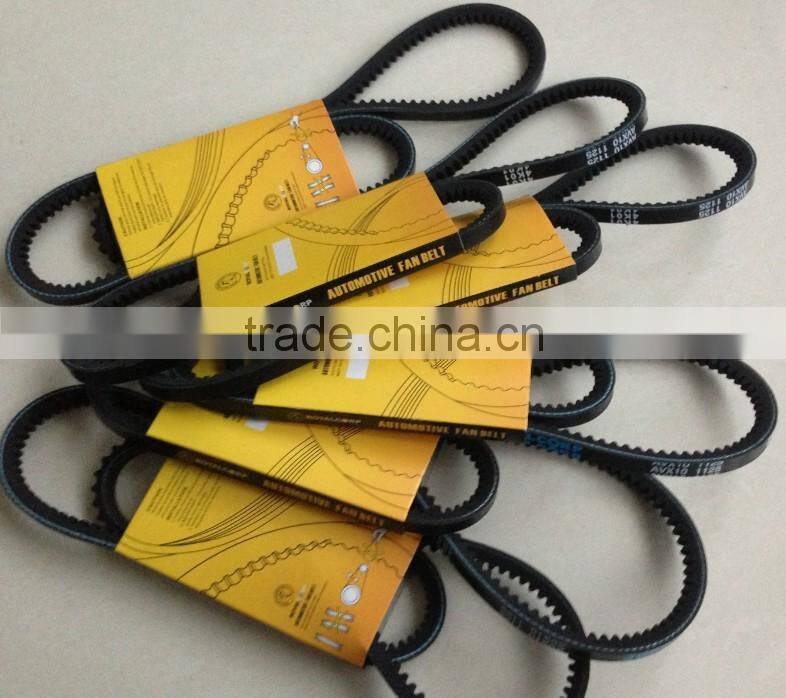

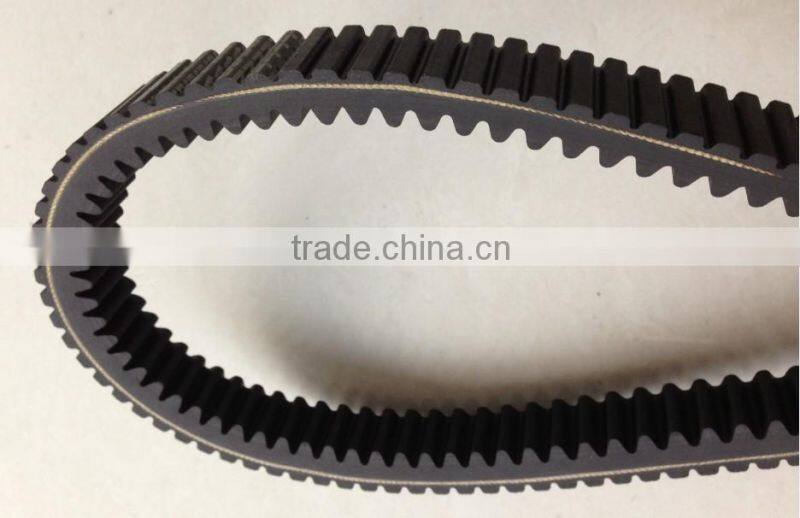

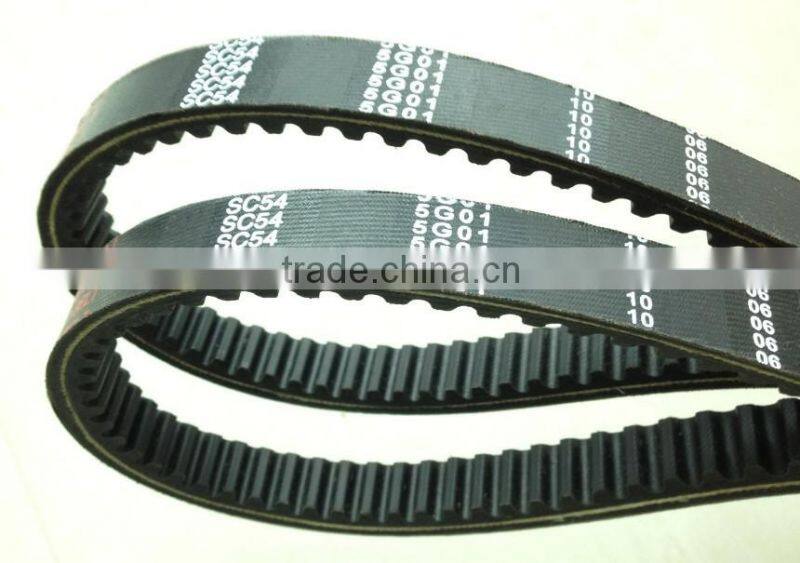

COGGED V-BELTS
| Section | Cogged | Width(dp) mm | Top Width(b) mm | Height(h) mm | Angle(a) | Length Range mm | Inch |
|---|---|---|---|---|---|---|---|
| 9.5,FM | 9.5 | 10 | 7 | 40 | 380~15000 | 15”~590” | |
| AX(12.5) | 11 | 13 | 8 | 40 | |||
| BX(17) | 14 | 17 | 11 | 40 | |||
| CX(22) | 19 | 22 | 14 | 40 | |||
| DX(32) | 27 | 32 | 19 | 40 | |||
| EX(38) | 32 | 38 | 25 | 40 |
LAMINATED V-BELTS
Type |
Height(mm) |
Width(mm) |
Angle |
Length range(mm) |
|---|---|---|---|---|
FM/9.5 |
8 |
9.5mm |
40 |
450mm~2800mm |
A |
9 |
13mm |
40 |
450mm~2800mm |
B |
11 |
17mm |
40 |
450mm~2800mm |
NARROW V-BELTS
| Section | Wrapped/ Cogged | Top Width (b) | Height (h) | Angle (a) | Length Range(mm) | Length Transform | |
|---|---|---|---|---|---|---|---|
| Wrapped | Cogged | ||||||
| SPZ/XPZ | 9.7 | 8 | 40 | 350~ 12000 (14”~472”) | 380~ 8000 (15”~315”) | Lp=Li+37 | |
| SPA/XPA | 12.7 | 10 | 40 | Lp=Li+45 | |||
| SPB/XPB | 16.3 | 13 | 40 | Lp=Li+62 | |||
| SPC/XPC | 22 | 18 | 40 | Lp=Li+75 | |||
| 3V/3VX | 9.5 | 8 | 40 | Lp=Li+46 | |||
| 5V/5VX | 16 | 13.5 | 40 | Lp=Li+60 | |||
| 8V/8VX | 25.5 | 23 | 40 | Lp=Li+106 | |||
BANDED CLASSICAL V-BELTS AND BANDED COGGED V-BELTS
| Type | Top Width | Pitch Width | Height | Angle | Rib Number | Length Range | ||
|---|---|---|---|---|---|---|---|---|
| Wrapped | Cogged | Wrapped | Cogged | |||||
| RA/RAX | 13.6 | 15.6 | 10 | 40 | 18 | 18 | 800~12000 | 600~5000 |
| RB/RBX | 17.0 | 19.0 | 13 | 40 | 16 | 16 | ||
| R3V/R3VX | 9.7 | 10.3 | 9.7 | 40 | 18 | 18 | ||
| R5V/R5VX | 15.7 | 17.5 | 15.7 | 40 | 16 | 16 | ||
| R8V/R8VX | 25.4 | 28.8 | 25.4 | 40 | 12 | 12 | ||
If any special size , pls freely inform us, we can design and develop them according to your application and drawing. Welcome to contact us and be sure the satisfied to you.
