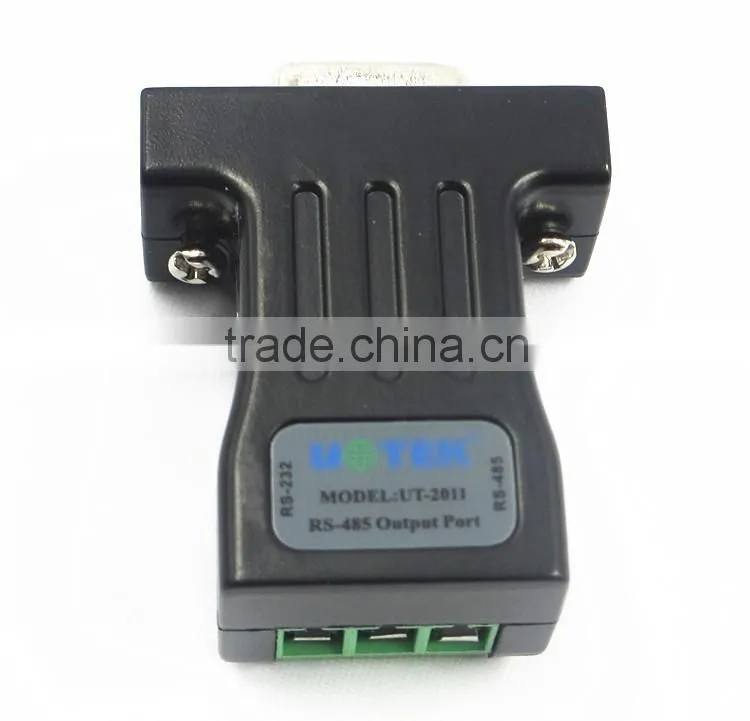

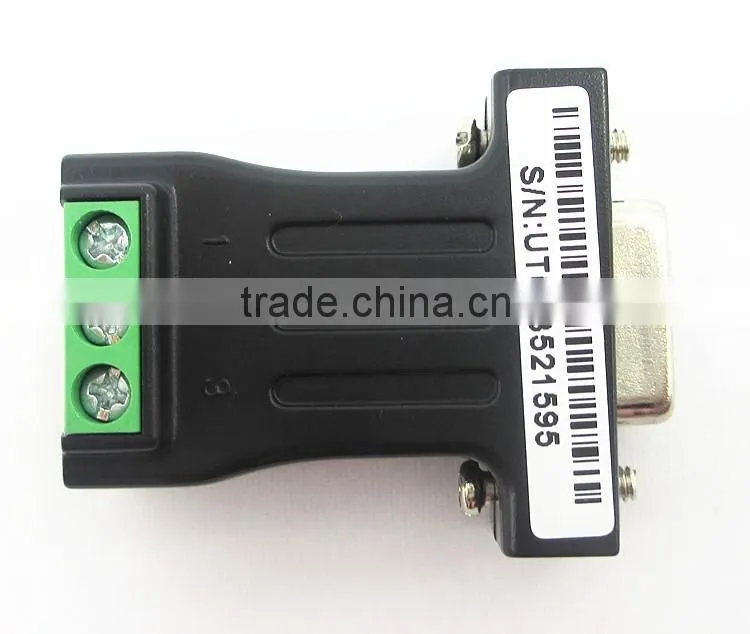

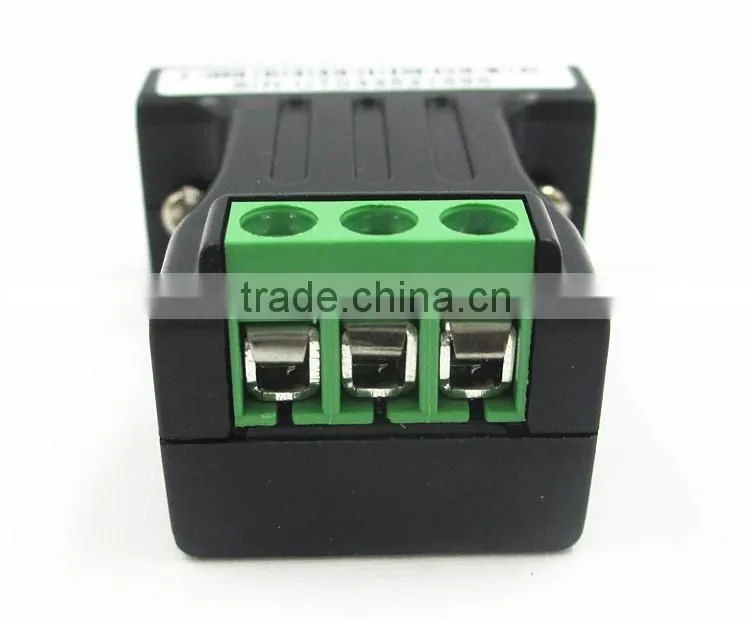

Help CenterHight Quality Super Mini RS-232 to RS-485 Passive Interface Converter 485 Converter DB9 to 3-wire Terminal Adapter 1.2km
Related Products
-
Free Shipping RS232 TO RS485 Converter,Commercial Version,no Power Need,STM485C UT-201US$ 4.5 - 7.2MOQ: 50 Packs -
RS-232 RS232 Serial to RS485 RS-485 Converter,232 to 485 for Industrial Grade Three ChipsetsUS$ 4.2 - 6.8MOQ: 50 Packs
-
RS-232 RS232 Serial to RS485/RS422 485/422 ConverterUS$ 3.7 - 6MOQ: 50 Packs
-
RS232 to RS485 Adapter Switch 232 Turn 485 Adaptor 485 Communication Adapter ConverterUS$ 1.5 - 3.9MOQ: 50 Packs
-
Industrial USB 2.0 to Serial RS422 RS485 DB9 Cable & RS485 Module FTDI ChipsetUS$ 5 - 10MOQ: 50 Packs
To facilitate different standard serial interface with a computer , an external device or a smart remote data communications between instruments , the need for mutual conversion of a standard serial interface . The converter is compatible with RS-232,RS-485 Standards , to convert single-ended RS-232 to RS-485 Balanced differential signal, communication distance is extended to 1.2 Kilometer,No external power supply needed. features a unique "RS-232 Charge Pump "Drive ,Do not need to initialize RS-232 Serial port to get power supply,With zero delay automatic transceiver conversion, uniqueI / OCircuit automatically controls the data flow direction,Without any handshaking signals(AsRTS,DTRWait),Which ensures that theRS-232Half-duplex mode can be prepared by the procedure without changing theRS-485Mode operation , to ensure appropriate operation of the existing software and hardware interfaces , transfer rate converter 300-115.2Kbps.Can be applied between the host computer , the host computer and the microcontroller or peripheral formed between point to point, multipoint remote multi-machine communication network,Multi-machine communication response.Widely used in industrial automation and control systems, card , access control systems, parking systems , self-service banking system , bus charging system , canteen Canteen Systems, Inc. employee attendance management system , highway toll systems, etc.
Features:
- Compact, use DB9 Connector,With a terminal .
- CompatibleRS-232,RS-485TIA/EIAStandard
- Automatic transmission/Receive data without external flow control signals(RTS)
- Power supply:The unique serial charge pump drive technology , no external power supply,True three-wire(TXD.RXD.GND)Wire communication , no need to initialize the serial port
- Can connect 32 Network devices
- Communication distance:1,200Meter
- Communication speed:300BPS-115.2KBPS
- Transmission medium:Twisted pair or shielded cable
- Work:Asynchronous half-duplex (RS-485)
- Applies to all communication software used,Plug and Play
- Dimensions:63mm× 33mm × 17mm
- Use of the environment :-25°To70°Relative humidity5%To95%
- Support DOS/WIN95/WIN98/WIN2000/NT/XP/7/8 Linux,etc
