Specifications
1.pancake slip ring certified by ISO9000:20082,stainless steel material ,
and manufactured following your nee

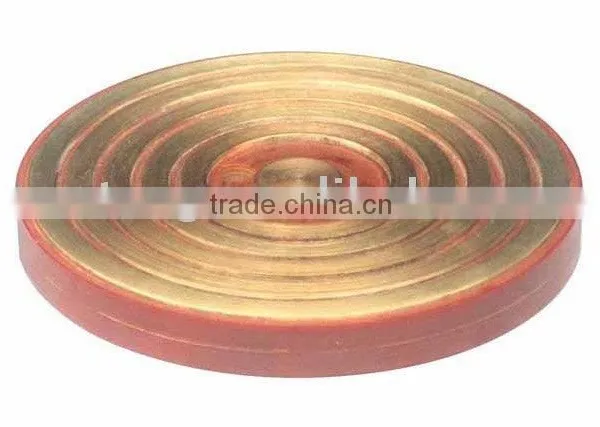

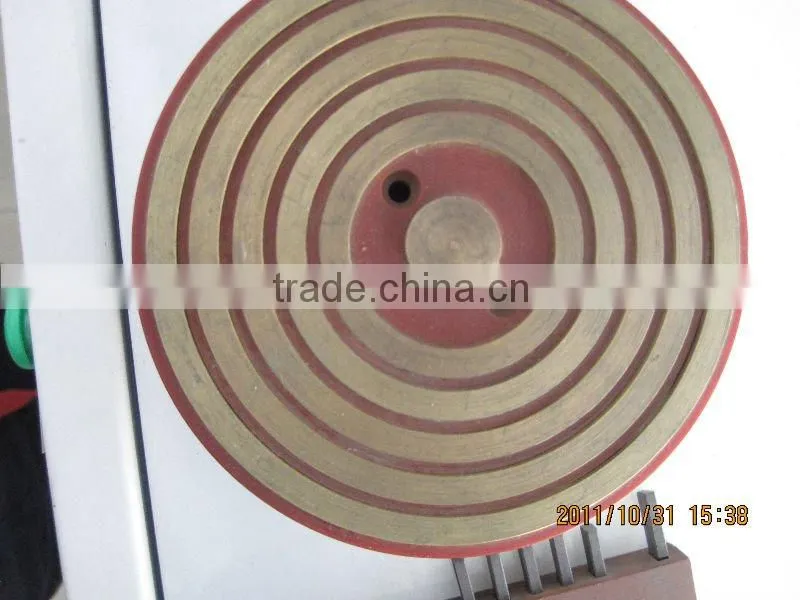

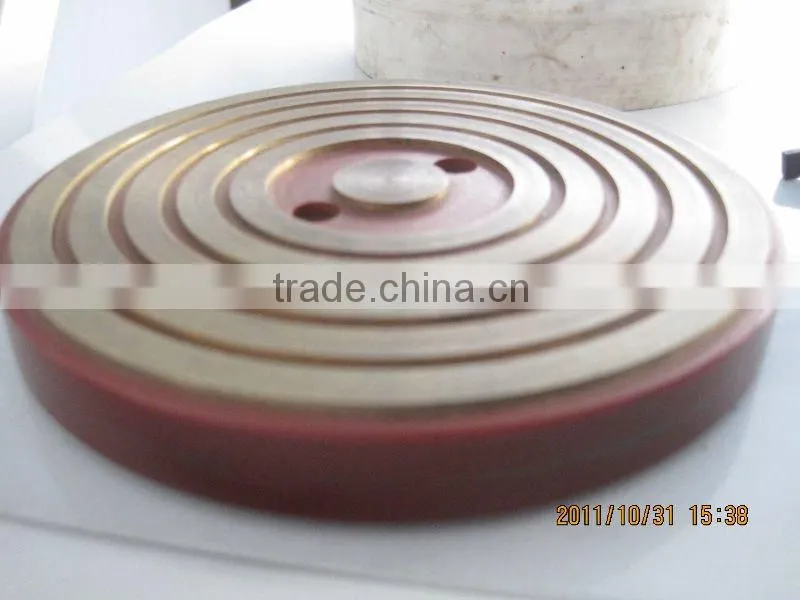

the pancake alternator slip ring
1. When you have a height restriction, a "pancake" ring - also called a "flat" or "platter" ring - could be the best
solution. the dimension of this slip ring : φ8 * φ 120 * 13.5 . total rings is : 5 rings .
2. These slip ring units are based on a disc shaped rotor embedded with concentric grooves carrying the
signal and power channels with a brush block assembly mounted over the top to act as the stator.
3. We can build custom versions of this type of ring with anywhere from 4 to 50 channels to include the required
center bore size.
4.Contacts are available in precious metal, operating speed has a large bearing on the number of channels and
overall.
A.)Feature
--the thickness reached 15 mm
-- Center bore size can be option
--Multiple circuit confgurations for power & data signals.
--Without any maintain.
B.)Typical
-- Rotary index tables, test equipment.
--Robotics, process equipment and rotary sensors.
--Medical equipment;
--Radar System.
