1. Brief Introduction
A-C021 is an affordable fingerprint time attendance terminal, it’s released to market around 3 years, it's the most popular time attendance item in over-sea markets. With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second. Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, multi verification functions. Standalone to operate the device, U flash drive could realize all kind of setting for the device directly. TCP/IP communication, network connection is simple and convenient. Support Push Technology, data collection & sharing freely.
Features:
- With the most advanced fingerprint arithmetic in the world automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second.
- Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination.
- 2.8 inch TFT color screen
- Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
- TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
- Supports 11 digits for user ID registration, user also could enroll mobile number for ID numbers.
- Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,500 enrollment and 100,000 records. Warning function for full records and inquiry log functions.
- Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
- Support English, Germany, Spanish ect different languages.
Functions:
2. Parameter
Model | A-021 |
LCD Screen | 2.8 inch TFT Color Screen |
Fingerprint Sensor Resolution | 500DPI (Optional sensor) |
Hardware Platform | REALANDR ZDC2911 |
Algorithm Version | REALANDR RSFv5.1 |
CPU | ARM926EJ CPU, Running Frequency: 200MHZ |
Communication | TCP/IP, USB Memory Disk, USB cable |
User Capacity | 1,500 – 2,000 |
Records Capacity | 100,000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz, EM4100) /Password |
Language | Chinese / English / Spanish/Arabic/ German (could customize others) |
Bell | Built-in timing bell |
Operation Mode | Off-line/Online |
Power | DC 12V/0.5A |
FRR | <1% |
FAR | <0.00001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
Certificates | CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm
| Terminal - 180*134*36mm Package – 325*105*258 mm |
Weight | Terminal – 0.349 Kg Package – 0.862 Kg |
3. Application

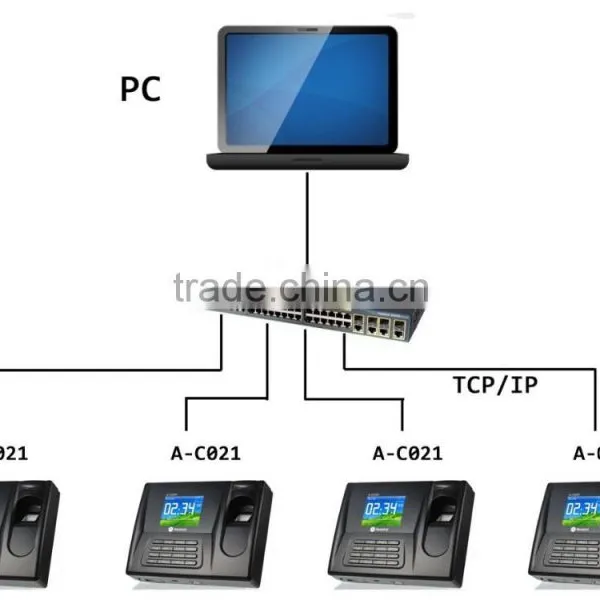

1) Customer can connect the software to the A-C021 device via the WAN network.
2) One software can connect to several A-C021, to share the user info and get the attendance records.
Color Case, Carton Box.
Dimension(L*W*H)mm: Terminal- 180*134*36mm , package- 325*105*258 ;
Weight: Terminal – 0.349Kg; Package – 0.862Kg
Sample in stock for quick sample delivery;
Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development;
Same day response to your any inquiry.
Patent technology: master the core biometrics technology
Innovative and advanced design: the High-Tech Enterprise granted by government, gain support from the innovative fund of China.
High production capacity: annual capacity is 500 thousands to 1 million pieces.
Partner competition: our guideline “treat each other frankly and honestly, respect and cherish each other.”
Our email: robert# , note: # = @ ;
Mobil: 86-18922158086
Skype:Robert Jiang
Contact Person: Mr. Robert Jiang
