1. Brief Introduction

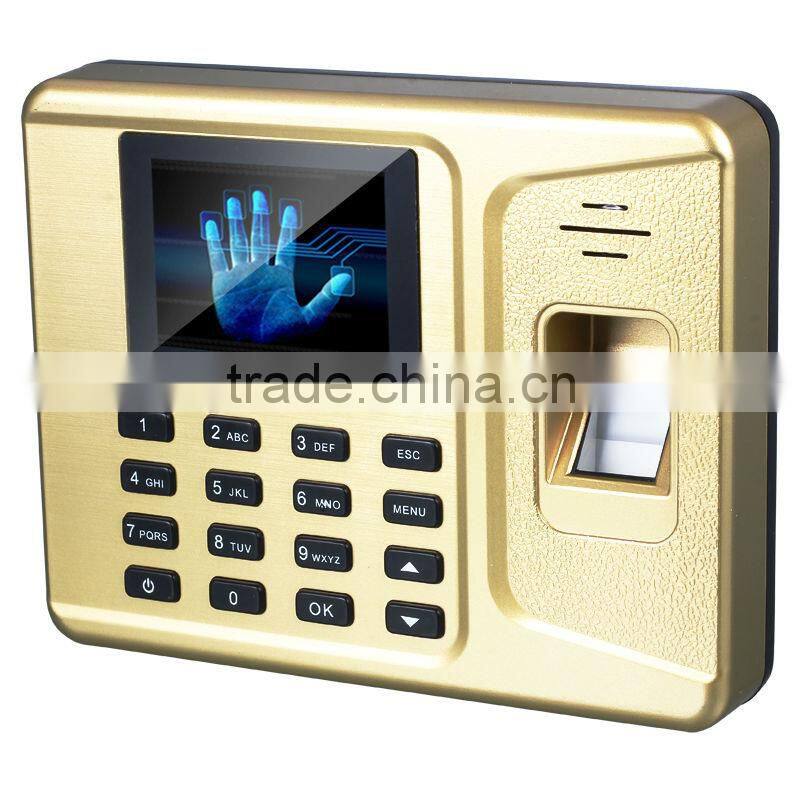

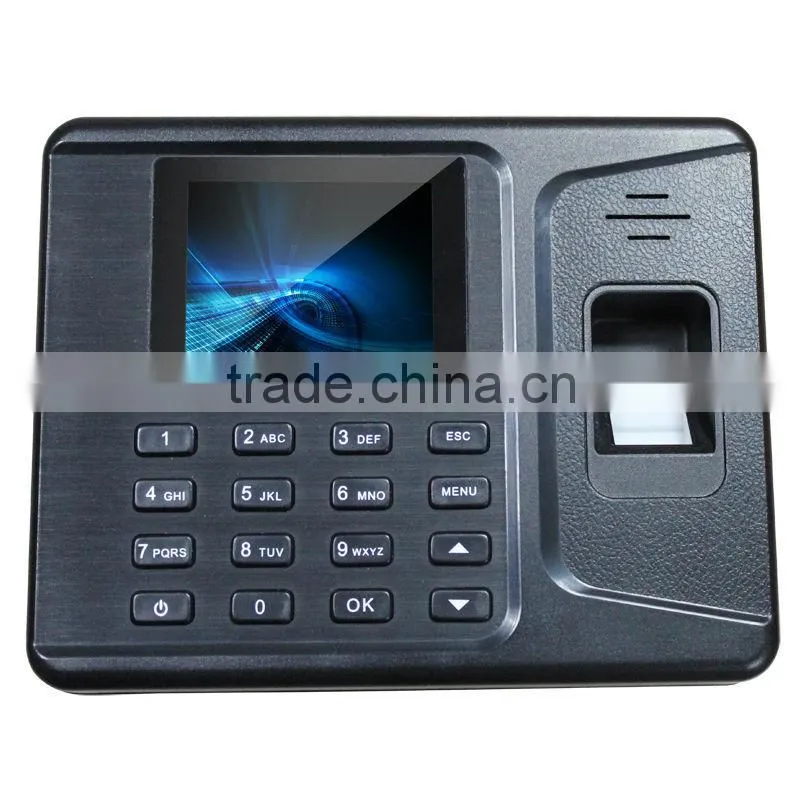

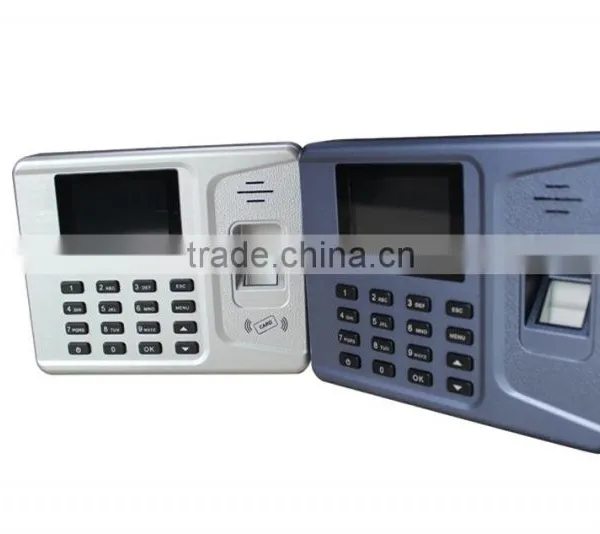

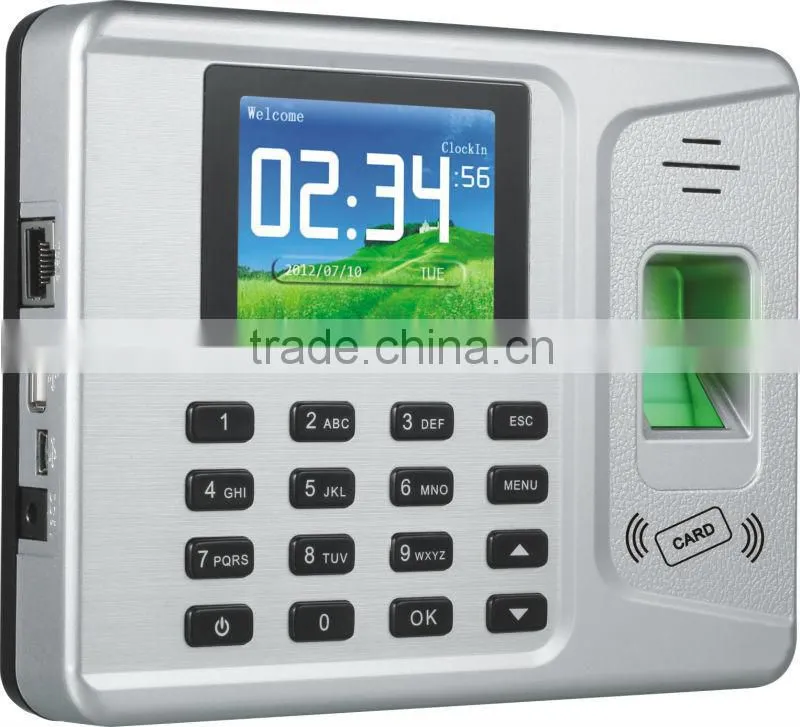

A-F261 is an ultrathin biometric fingerprint & rfid time attendance device, it shows fashionable and elegant. It firstly applies In-Mold Decoration technology in the market, agents/distributors could customize different front case according to yours markets, it also can satisfy diversified products based one mold, so that to differentiate different markets and realize the maximum market share.
Features:
- With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition, the identification time is less than 1 second.

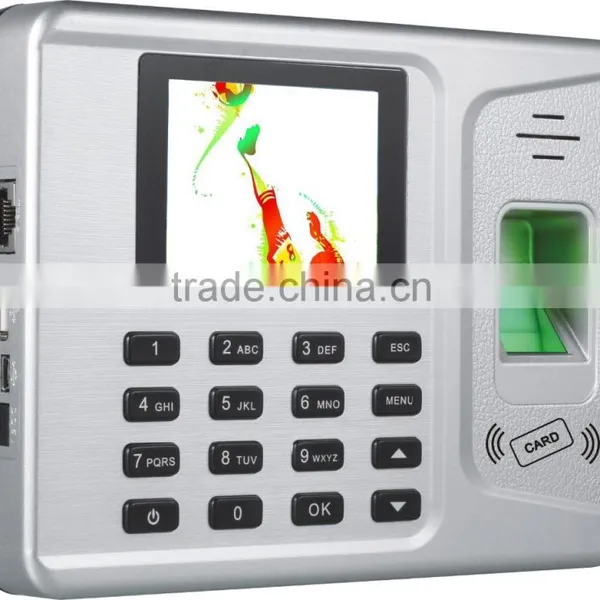

- The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.

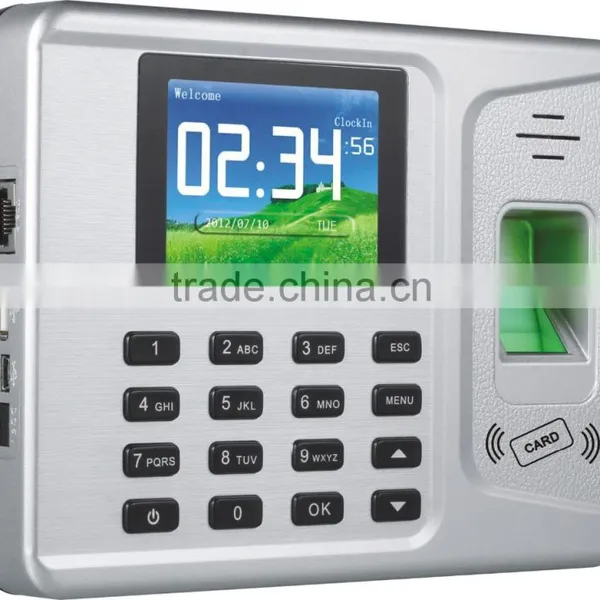

- 2.8 inch TFT color screen.
- Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
- TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
- Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
- Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 records.
- Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development.
- Support English, Germany, Spanish ect different languages.
Functions:
2. Parameter
Model | A-F261 |
LCD Screen | 2.8 inch TFT (320*240) Color Screen |
Fingerprint Sensor Resolution | 500DPI (Optical sensor) |
Hardware Platform | REALANDR ZDC2911 |
Algorithm Version | REALANDR RSFv5.1 |
CPU | ARM926EJ CPU, Running Frequency: 200MHZ |
Communication | TCP/IP, RS485, USB Memory Disk |
User Capacity | 1,000 |
Records Capacity | 100,000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz, EM4100) |
Language | Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell | Built-in timing bell |
Power | DC 5V/0.5A |
FRR | <1% |
FAR | <0.00001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity: 80% |
Certificates | CE, Type Inspection Report of Chinese Police Product |
3. Application

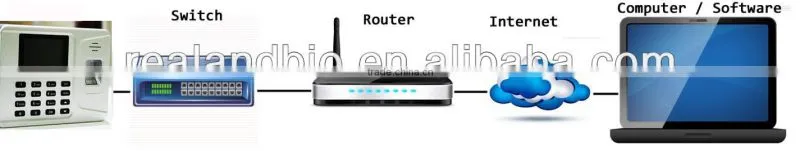

1) Customer can connect the software to the A-F261 device via the WAN network.

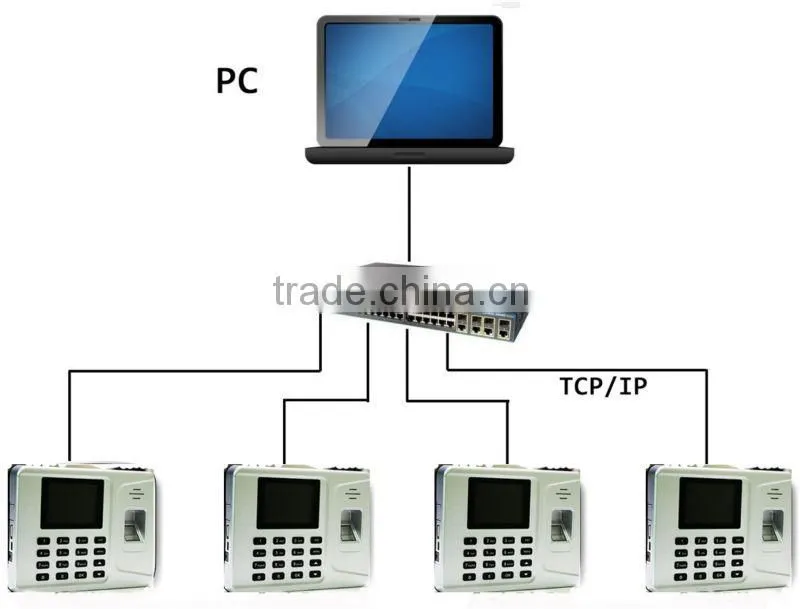

2) One software can connect to several A-F261, to share the user info and get the attendance records.
Color Case, Carton Box.
Dimension(L*W*H)mm: Terminal- 173*132*31mm , package- 246*164*71mm ;
Weight: Terminal – 0.328Kg; Package – 0.850Kg .
Sample in stock for quick sample delivery;
Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development;
Same day response to your any inquiry.
Patent technology: master the core biometrics technology
Innovative and advanced design: the High-Tech Enterprise granted by government, gain support from the innovative fund of China.
High production capacity: annual capacity is 500 thousands to 1 million pieces.
Partner competition: our guideline “treat each other frankly and honestly, respect and cherish each other.”
Our email: robert# , note: # = @ ;
Mobil: 86-18922158086
Skype:Robert Jiang
Contact Person: Mr. Robert Jiang
