PPC-121C
Features

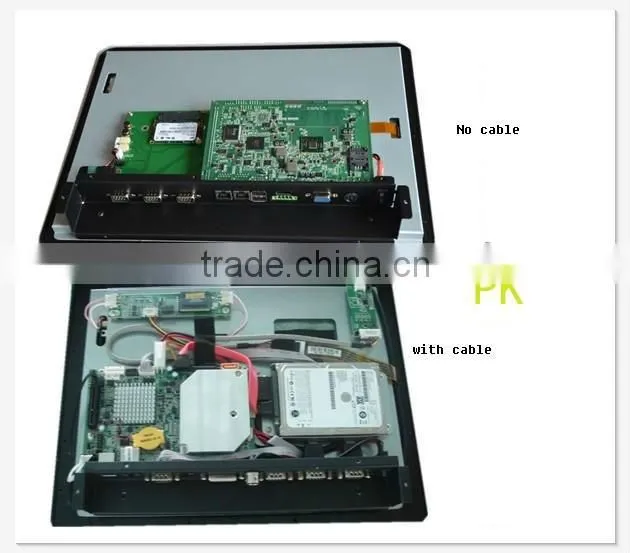

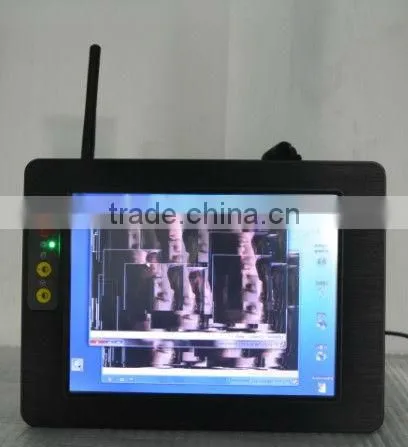

1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI.
2. With the shockproof, moisturproof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multisolt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications.

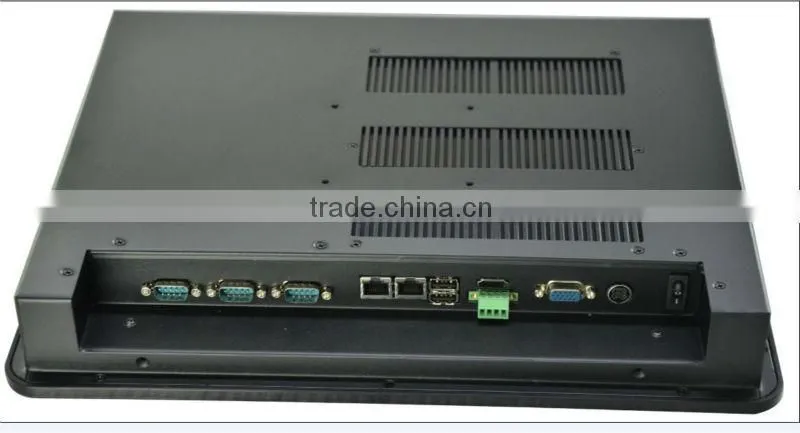

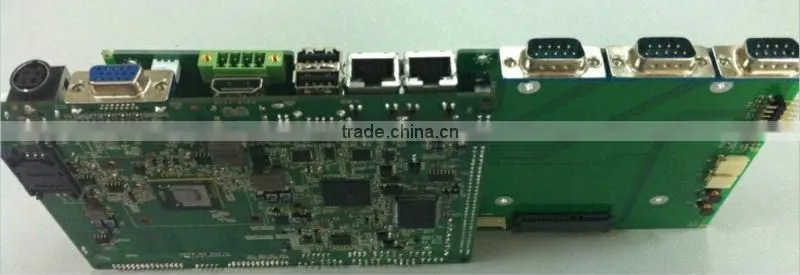

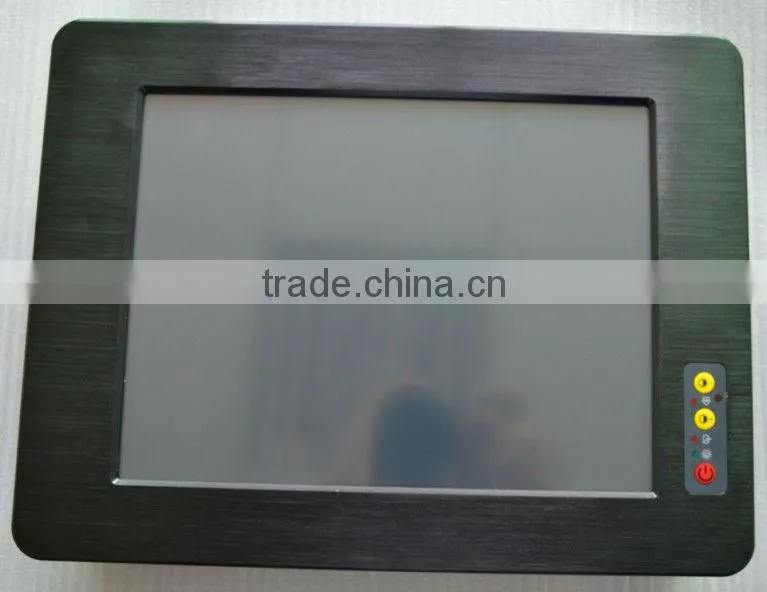

3.With 12.1 inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard , support Windows 7 (Pre-install), Windows XP, Win7 system ,CF,HDD,SDD, multiple I/O interfaces.
Main components :
Model |
PPC-121C 336.4x263x56.1mm |
screen size |
AUO 12.1 inch |
Display area |
245.76x 184.32mm |
Density Changer |
800*600 1024*768 (optional) |
Contrast |
700:1 Typ |
Screen colors |
262K/16.2M 6-bit / 6-bit + FRC |
Display brightness |
450cd/m2 |
Touch panel |
AMT Touch panel of resistance |
Chipest |
Intel Atom D2550+ NM10 |
CPU |
Intel ATOM D2550 1.86G |
RAM |
DDR3 2Gb MAX 8Gb |
SSD |
SSD32G |
System |
Windows 7 (Pre-install) Windows XP/ win7 |
LAN |
2*RJ45 Intel RTL8111C 1000Mbps |
USB 2.0 |
4 |
COM(COM) |
4 6xCOM (optional) |
VGA |
1 |
HDMI |
1 |
LPT |
1 (optional) |
Microphone Input/output |
1 (optional) |
Wireless 3G/WIFI |
1(optional) |
Operating Humidity |
5 ~ 85% (non-Condensing) |
Operating Temp |
-25 ~ 70 Celsius degree |
Storage Temp |
-40 ~80 Celsius degree |
Color |
Black |
Power |
110V-240V AC |
Power adapter |
12V/5A DC |
Weight |
4.88 KG/set |
Warranty 12 month
Certifications CE,FCC, ROHS
