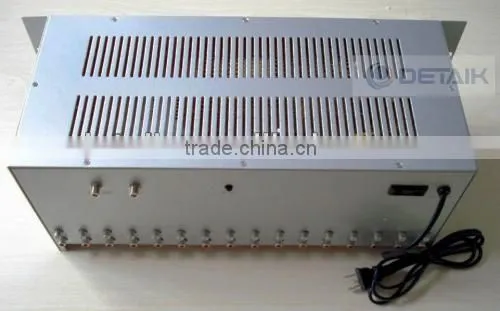

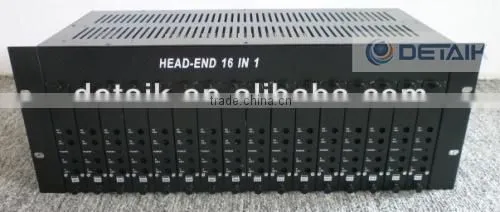

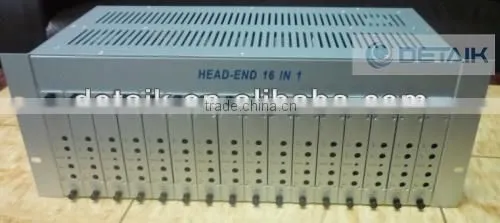

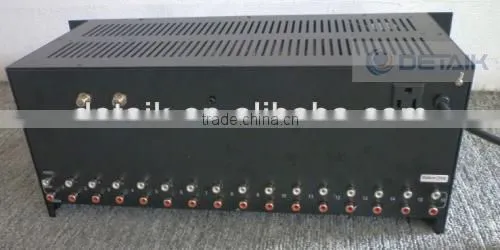

JM-50168 Wholesale Price Fixed Adjacent 16 Channels Demodulator
Features
16 channels module type modulator is low cost and high stability, specially designedfor MATV or SMATV system. Professional design with simple installation. It is easily operated or maintained by users.
- 1. 1 set can install 16 channels. Adjacent channel workable.
- 2. Individual function keys for each channel, simple operation.
- 3. High efficiency SMPS enable stable performance.
- 4. All the figures already pre-set in the factory. No further adjustment to the modulator in case of necessary.
- 5. 19” rack mountable.
Specifications
Frequency Range |
47~860MHz (Any one channel) |
Output Level |
≥105dBμV |
Output Level Adjustment Range |
0~-20dB (Variable) |
Video to Audio Carrier |
-10dB~-30dB adjustable |
Output Impedance |
75Ω |
Spurious Output Suppression |
≥60dB |
Frequency Accuracy |
≤±5KHz (VHF) , ≤±10KHz (UHF) |
Video Output Reflection |
≥12dB (VHF); ≥10dB (UHF) |
Video Input Level |
1.0Vp-p (87.5% Modulation) |
Video Input Impedance |
75Ω |
Differential Gain |
≤5% (87.5% Modulation) |
Differential Phase |
≤5°(87.5% Modulation) |
C/L Delay |
≤45 ns |
Flatness |
±1dB |
Video Modulator Depth |
0~90% (Variable) |
Video S/N |
≥55dB |
Audio Input Level |
1Vp-p (±50KHz) |
Audio Input Impedance |
600Ω |
Audio S/N |
≥57dB |
Audio Pre-weighted |
50μs |
Power Supply |
AC 220V±10% 50Hz±2Hz,50W |
Working Temperature |
0~40℃ |
Dimensions |
19 Inch 4 U housing |
Please kindly contact us for more informations. Thank you.
