Home > Products > New Products > 18-bit lvds to vga board (LDVGA01)
18-bit lvds to vga board (LDVGA01)
- 5000 Piece / Pieces per Month
- ShenZhen
- Credit Card
- OEM custom stamping stainless steel electronic laptop hardware 360 degree rotating Constant torque and self-locking hinges
- OEM custom stamped hinges for TV Vedio LCD notebook
- OEM China metal stamped non-stards rotational hinge for PC/TV combination screen
- Latest stamping metal electronic hardware part notebook joint aluminum hinge
- OEM sheet metal stamping stainless steel anodized finishing software electronic laptop standing hinge
- for Macbook Pro 13 A1706 /1708 Skin, Front + Bottom Skin Sticker for Macbook Pro 13" A1706 /1708 - Released 2016
Product Details
Products Status: | Stock | Brand Name: | LingJiang | Model Number: | LDVGA01 |
Place of Origin: | Guangdong, China |
Product Description
Specifications
1.change the LVDS mode input signal into the VGA/DVI model output signal.2.Fully support LCD panel refresh rate at :50 Hz/60Hz
LDVGA01
Product brief introduction

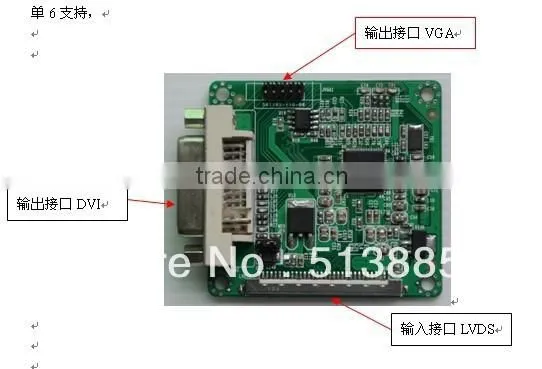

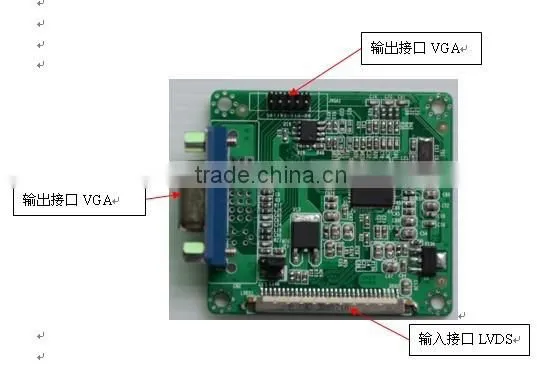

1"LVDS change into VGA/DVI signal converter"used to change the LVDS mode input signal
into the VGA/DVI model output signal
2.It was based on the usual interface design, compatible with the main LCD panel on the market.
3.Fully support LCD panel refresh rate at :50 Hz/60Hz LCD panel
Maximum supported refresh rate: 024*768/ 1366*768 *60Hz
Main parameter:
Size: 59mm×52mm×12mm
Input interface: support single 6/8 LVDS signal, 2*15 pin. 2.0mm spacing

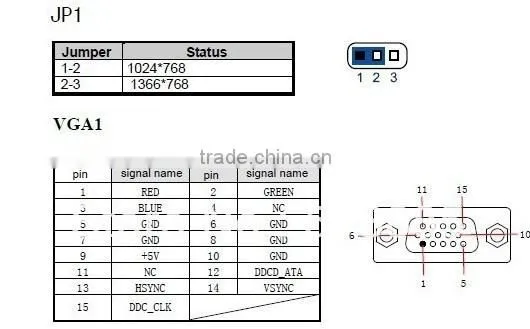

Output interface: standard DB15/10 pin VGA built-in, stand 3*8 pin DVI-I port
Display support:Maximum resolution ratio: 1366*768/1024*768*60Hz
Working environment:Temperature:-50-50 Celsius degree,Humidity:5%-85%
Module specification
LVDS-VGA/DVI Signal converter installation:
Please install the converter correctly, if not, it will not work, even will caused damage to the other parts.
Contact information: Tel: 86-15766986092
Skype: lingjiang8819
Company Website: / (Chinese )
.cn (Alibaba )
/index_en.asp (English)
