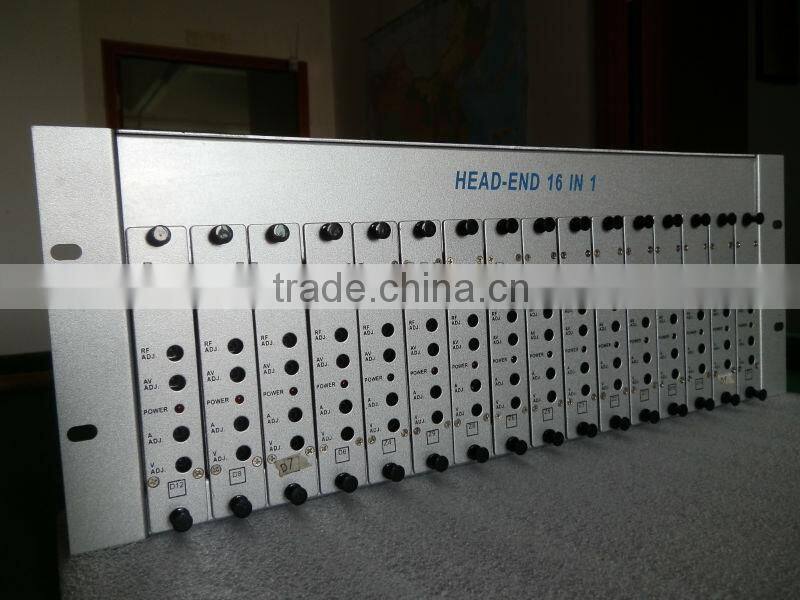

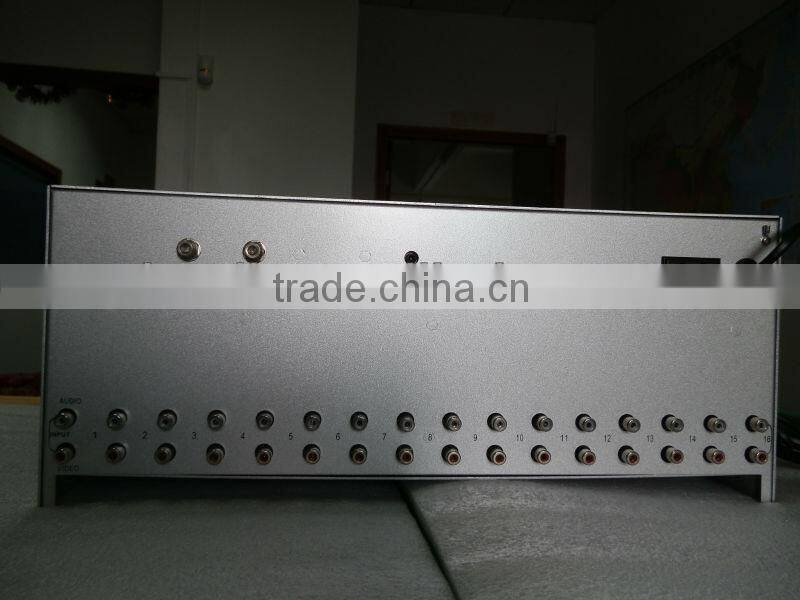

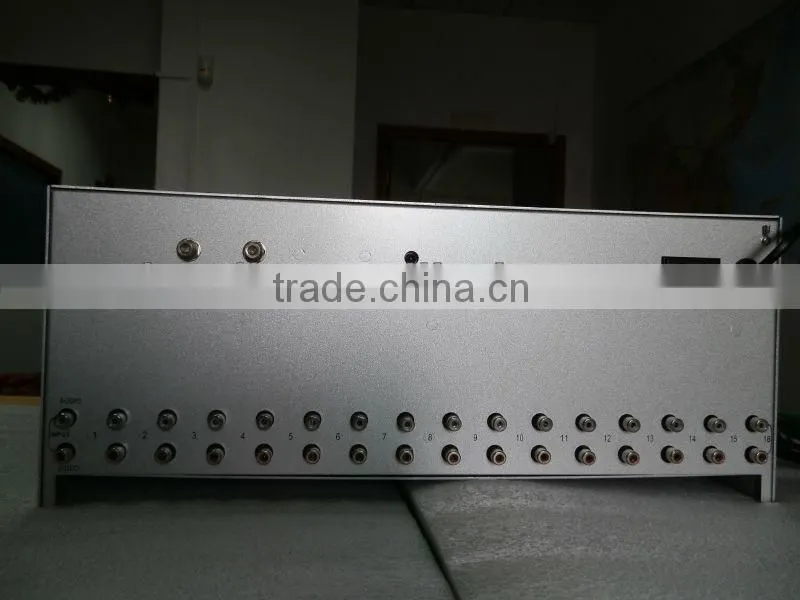

JM-50168 Good Quality CATV 16 Fixed Channel Modulator

Name: JM-50168 Good Quality CATV 16 Fixed Channel Modulator
Brand: Detaik
SKU: 103010097
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Detaik

Model Number:

JM-50168

Shenzhen Detaik Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Detaik

Model Number JM-50168

JM-50168 Good Quality CATV 16 Fixed Channel Modulator

FEATURES

1.Easy setup,Internal fans for cooling modulators

2.Only one RF output.No need combiner

3.Precise frequency control with PLL circuitry

4.Each modulator has its control panel

5.Also available in NTSC,all PAL configuration

Specifications

Frequency Range	47~860MHz
Output Level	≥110dBμV
Output Level Adjustment Range	0~-20dB (Variable)
Video to Audio Carrier	-10dB~-30dB adjustable
Output Impedance	75Ω
Spurious Output Suppression	≥60dB
Frequency Accuracy	≤±5KHz (VHF) , ≤±10KHz (UHF)
Video Output Reflection	≥12dB (VHF) ≥10dB (UHF)
Video Input Level	1.0Vp-p (87.5% Modulation)
Video Input Impedance	75Ω
Differential Gain	≤5% (87.5% Modulation)
Differential Phase	≤5°(87.5% Modulation)
C/L Delay	≤45 ns
Flatness	±1dB
Video Modulator Depth	0~90% (Variable)
Video S/N	≥55dB
Audio Input Level	1Vp-p (±50KHz)
Audio Input Impedance	600Ω
Audio S/N	≥57dB
Audio Pre-weighted	50μs
Power Supply	AC 220V±10% 50Hz±2Hz,50W
Working Temperature	0~40°C
Dimensions	19 Inch 4 U housing
