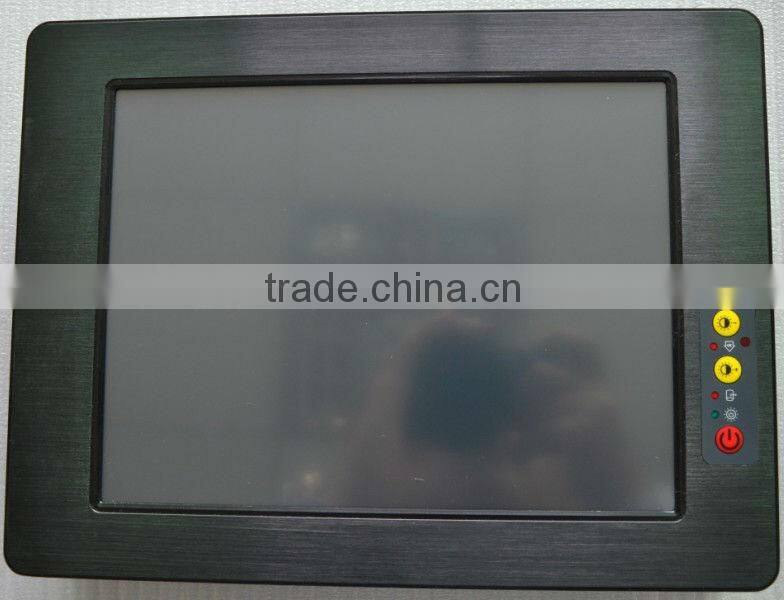

Help Center15 Inch 5 Wires Touchscreen Industrial Panel Pc(PPC-150C)
Related Products
-
5 Wires Touchscreen Industrial Panel Pc(PPC-150C)US$ 1 - 700MOQ: 1 Set -
DC9-30V Power Supply Industrial Panel Pc(PPC-150C)US$ 1 - 700MOQ: 1 Set
-
DC7-30V Power Supply Industrial Panel Pc(PPC-150C)US$ 1 - 700MOQ: 1 Set
-
DC Power Supply 7-30V Industrial Panel Pc(PPC-150C)US$ 1 - 700MOQ: 1 Set
-
-20-80 Working Tempture Industrial Panel Pc(PPC-150C)US$ 1 - 700MOQ: 1 Set
Specifications
1. fanless and no cable design with hdmi2. 3G/WIFI for optional
3.support Windows 7 (Pre-install), Windows XP, Win7 system
PPC-150C
Features

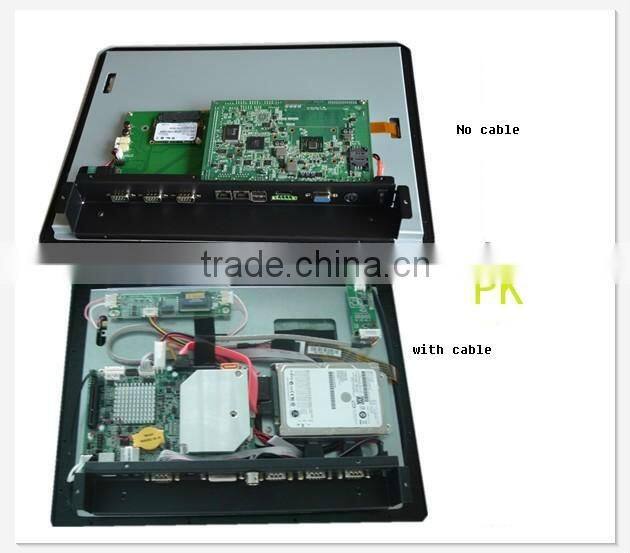

1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable design is good at shockproof, and high performance at low power consumption, can be used in hard environments. It can be made into optional wireless 3G/WIFI model .
2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications.

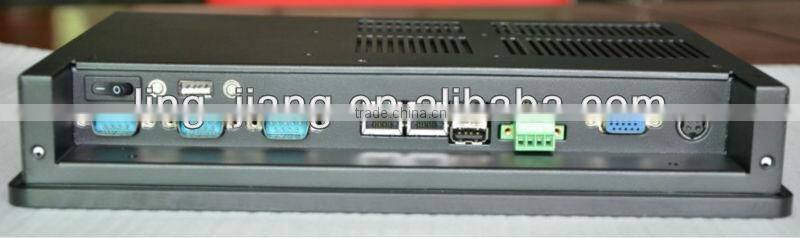

3.With 15 inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard , support Windows 7 (Pre-install), Windows XP, Win7 system ,CF,HDD,SDD, multiple I/O interfaces.
Main components :
Model |
PPC-150C 376.5x303.5x53.7mm |
screen size |
AUO 15 inch |
Display area |
305x 230mm |
Density Changer |
1024*768 |
Contrast |
700:1 Typ |
Screen colors |
262K/16.2M 6-bit / 6-bit + FRC |
Display brightness |
450cd/m2 |
Touch panel |
AMT Touch panel of resistance |
Chipest |
Intel Atom D2550+ NM10 |
CPU |
Intel ATOM D2550 1.86G |
RAM |
DDR3 2Gb MAX 8Gb |
SSD |
SSD 16GB |
System |
Windows 7 (Pre-install) Windows XP/ win7 |
LAN |
2*RJ45 Intel RTL8111C 1000Mbps |
USB 2.0 |
4 |
COM(COM) |
4 6xCOM (optional) |
VGA |
1 |
HDMI |
1 |
LPT |
1 (optional) |
Microphone Input/output |
1 (optional) |
Wireless 3G/WIFI |
1(optional) |
Operating Humidity |
5 ~ 85% (non-Condensing) |
Operating Temp |
-25 ~ 70 Celsius degree |
Storage Temp |
-40 ~80 Celsius degree |
Color |
Black |
Power |
110V-240V AC |
Power adapter |
12V/5A DC |
Weight |
5.76 KG/set |
Warranty 12 month
Certifications CE,FCC, ROHS
Contact information: Tel: 86-13714759015
Skype: lingjiang8818/ troor003
Company Website: / (Chinese )
.cn (Alibaba )
/index_en.asp (English)
