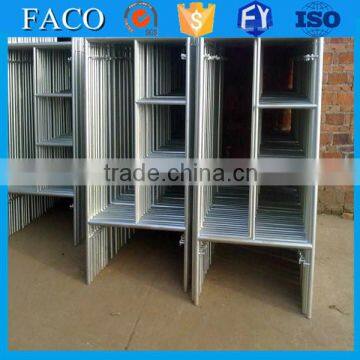

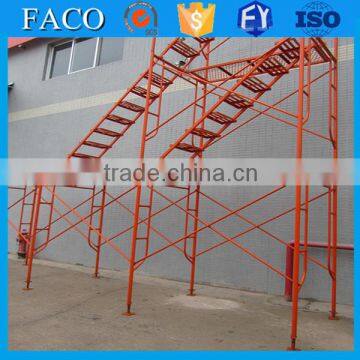

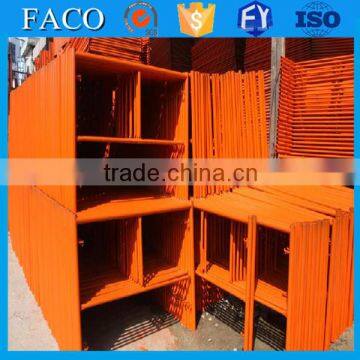

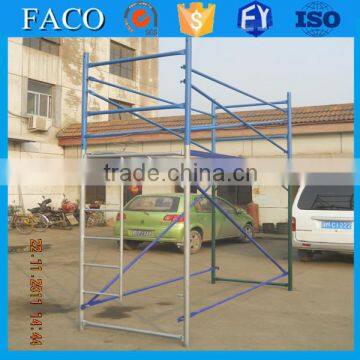

5'x3'steel h frame scaffolding open end frame scaffolding
1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type:Scaffolding frames
4.Diameter of the tube:42mm or as your request
5.Thickness of the tube:2.5/2.4/2.2/2.0/1.8MM or customize
6.Surface treatment:HDG/Galvanized/Painted,ect.
7.Certificate:ISO9001:2000,ISO9001:2008
8.Standard:EN74 BS1139 AS1576 Bs1139/En10217
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage:scaffold frames are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc
12.Performance:good bearing capacity,durable & stable
13.Test: SGS, BV or as per your request
14.OEM service is available.
Pipes of frame scaffold system
No. |
Cross Tube |
Upright Tube |
Inner Tube |
FY-1 |
φ42X2.5mm |
φ42X2.5mm |
φ25x1.5mm |
FY-2 |
φ42X2.4mm |
φ42X2.4mm |
φ25x1.5mm |
FY-3 |
φ42X2.2mm |
φ42X2.2mm |
φ25x1.5mm |
FY-4 |
φ42X2.0mm |
φ42X2.0mm |
φ25x1.5mm |
FY-5 |
φ42X1.8mm |
φ42X1.8mm |
φ25x1.5mm |
5'x3'steel h frame scaffolding open end frame scaffolding
Mason (Ladder type)/H frames and walk through (door type) frames, we can also manufacture as per your drawings.
Item |
Image |
Material |
Size Width X Height |
Surface Treatment |
|
Walk Through Frame Door Frame |
|
Q235 |
1219X1700MM 1219X1930MM 1219X1524MM 914X1700MM |
HDG/Galvanized/Painted,etc |
|
Ladder Frame H Frame |
|
Q235 |
1219X1700MM 1219X1219MM 1219X914MM 1219x490MM 762x1700MM
|
HDG/Galvanized/Painted,etc |

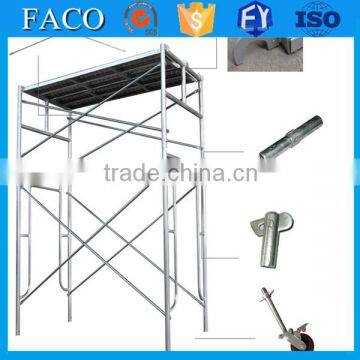

A complete scaffold frame set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.
Other Fitting of scaffolding frame,including the plank with hook,and the wheels as the picture below:
