Specifications
1.Fanless and no cable design with HDMI2.3G/WIFI for optional
3.Excellent quality&Exquisite shape&Fast delivery

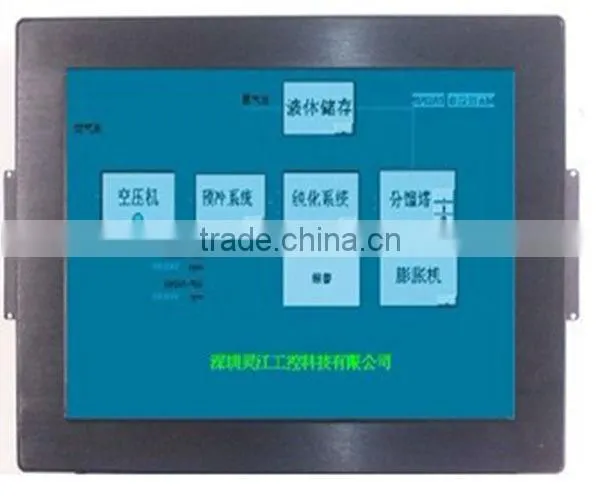

Touchscreen Panel Pc PPC-150C
Introduction
1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape,
no cable design is good at shockproof,and high performance at low power consumption,
can be used in hard environments.It can be made into optional wireless 3G/WIFI model.
2.With the shockproof,moistureproof,waterproof and dustproof (meet the NEMA IP65
standard),high temperature resistant,multisolt and easy to expand characteristics, so

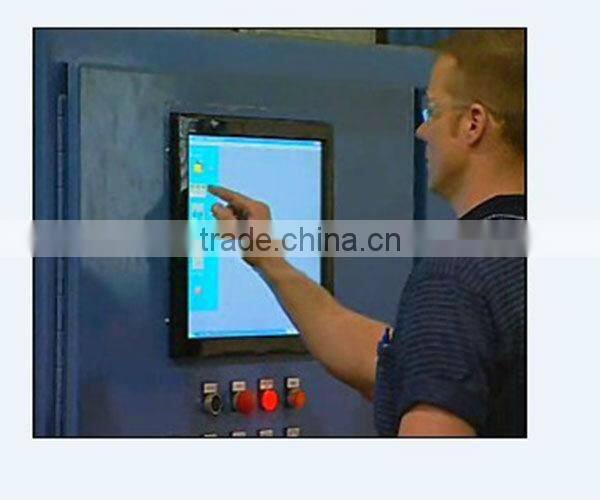

it is widely used in industrial control,vehicle control,environmental control,Miliary control,
Monitoring system,Network security,Digital signage,Date storge and other automation
applications.

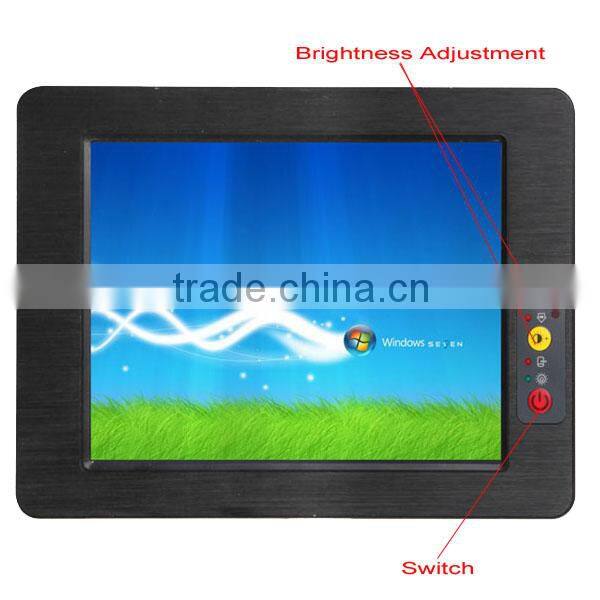

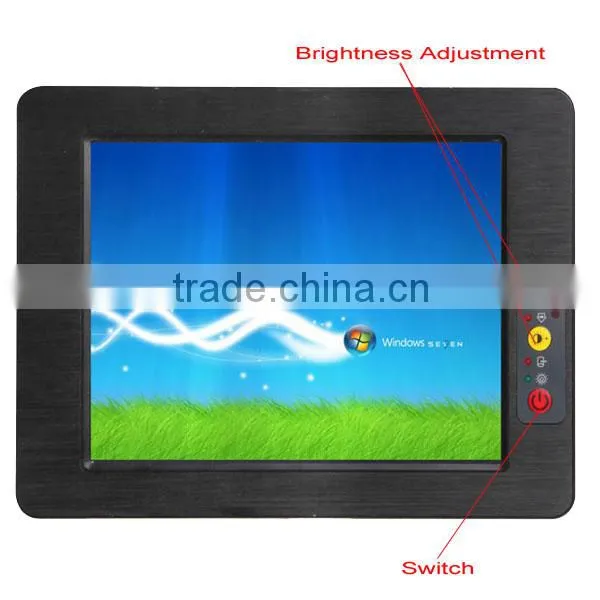

3.With 15inch resistive touch screen,brightness and contrast can be adjusted,and also
have standby energy saving mode.It with integrated industrial-grade low-power embedded
motherboard,support Windows 7 (Pre-install),Windows XP,Win7 system,CF,HDD,SDD,
multiple I/O interfaces.
System Specification
Model |
PPC-150C 276.5x303.5x53.7mm |
screen size |
AUO 15 inch |
Display area |
340.1x 231.3mm |
Resolution |
1024*768 |
Contrast |
700:1 Typ |
Screen colors |
262K/16.2M 6-bit/6-bit + FRC |
Display brightness |
450 cd/m2 |
Touch panel |
AMT Touch panel of resistance |
Chipest |
Intel Atom D2550+ NM10 |
CPU |
Intel ATOM D2550 1.86G |
RAM |
DDR3 2Gb MAX 8Gb |
SSD |
SSD 16GB |
System |
Windows XP/win7 |

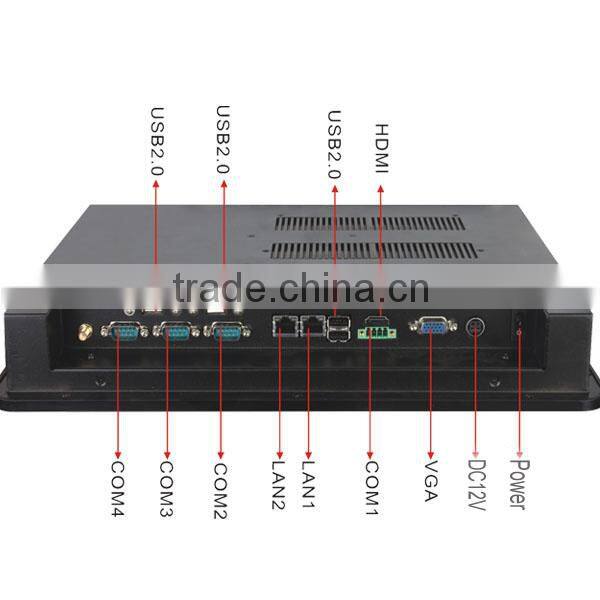

LAN |
2*RJ45 Intel RTL8111C 1000Mbps |
USB 2.0 |
4 |
COM(COM) |
4 |
VGA |
1 |
HDMI |
1 |
LPT |
1 (optional) |
Microphone Input/output |
1 (optional) |
Wireless 3G/WIFI |
1 (optional) |
Operating Humidity |
5 ~ 85% (non-Condensing) |
Operating Temp |
-40 ~ +80°C |
Storage Temp |
-30 ~ +70°C |
Color |
Black |
Power |
110V-240V AC |
Power adapter |
12V/5A DC |
|
Weight Warranty Certifications |
5 KG/set 12 month CE,FCC,ROHS |

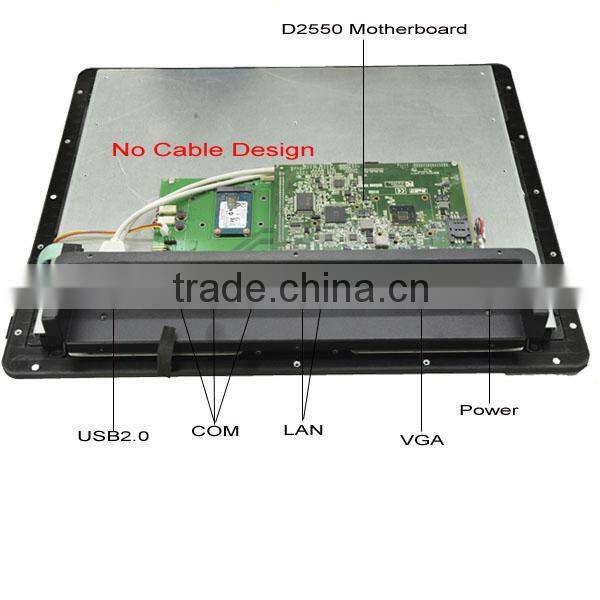

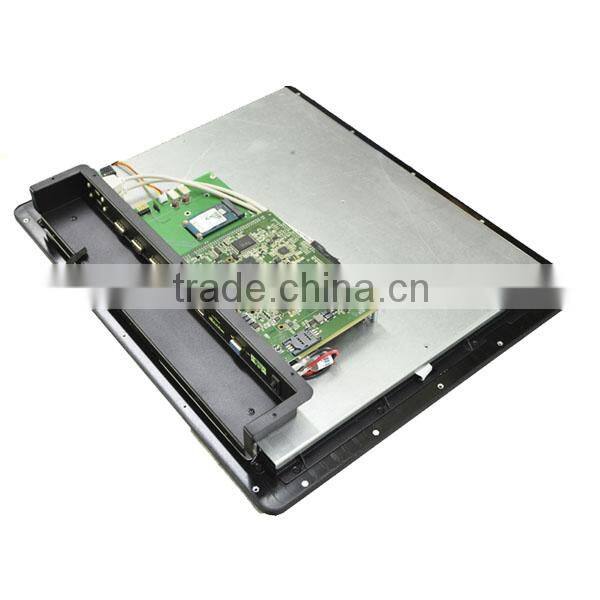

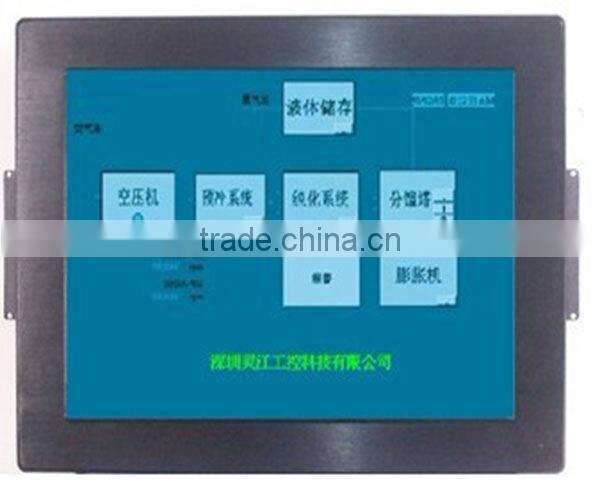

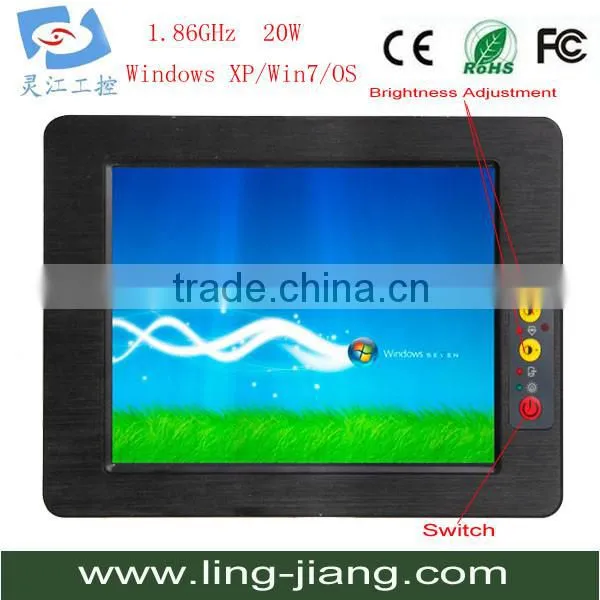

Products Display
Company profile
ShenZhen Ling Jiang Computer Technology CO.,LTD was established in 2002.
We are specialized in Researching,Designing,Manufacturing,Assembing and
exporting industrial computers.Our main lines of products are:Industrial Embedded
PC;Industrial Panel PC;Industrial Motherboard of PC;Industrial Full Size Card;
Firewall Machine and so on.
We are well recognized and accepted by a growing number of clients.We are
always ready for new friends and new business opportunities.Looking forward
to a higher level of involvement and the support of business partners to work
together for a better tomorrow!
Our service
1.100% quality satisfaction guarantee,any further assistance just drop us an
email or ring us up anytime
2.Your email will be replied in 24hrs
3.Well-trained and experienced staffs to answer all your enquires in fluent English
4.Arrange Shipments any port in China
Contact information: Tel: 86-15766986092
Skype: lingjiang8819
Company Website: / (Chinese)
(Alibaba)
/index_en.asp (English)
Any doubts,please feel free to contact with me!
