1-255 Levels Reset Watchdog Timer Industrial PC/Fanless Design PC/Embedded PC (LBOX-270)

Specifications

1.Fanless rugged design for shock/vibration protection
2.Support RS-485
3.support dual core Intel Atom, 1xLAN,4xCOM,4xUSB

LBOX-270:



1.Extreme Rugged and fanless design.

2.Intel Atom N280 at low power consumption with high performance,

3.Support full-automatic RS-485, it's a multi-function industrial embedded computer.











Features:



Small size,low power consumption and economical solution



Compact size with high performance



High speed gigabit Lan controller



12v DC power support



Intel Atom n280+ ICH7M+945gse



Support DDR2 up to 2 GB



Support 1xVGA,4xUSB and Audio



Support 4xCOM and Digital I/Os



Support 1x2.5 inch SATA HDD or 1xInternal Compact Flash Type II slot







System:



CPU:                       Intel Atom N280  1.66 GHz



Memory:                  DDRII 1G  up to 2G



Chipset:                  Intel Atom N280+ ICH7M+945gse



Graphics:                Integrated Intel GMA3150



ATA:                        1xSerial ATA port with 300MB/s HDD transfer rate



LAN Chipset:          1xRealtek 8111C Gigabit Ethernet controllers



Watchdog timesr: 1-255 levels reset







I/O:

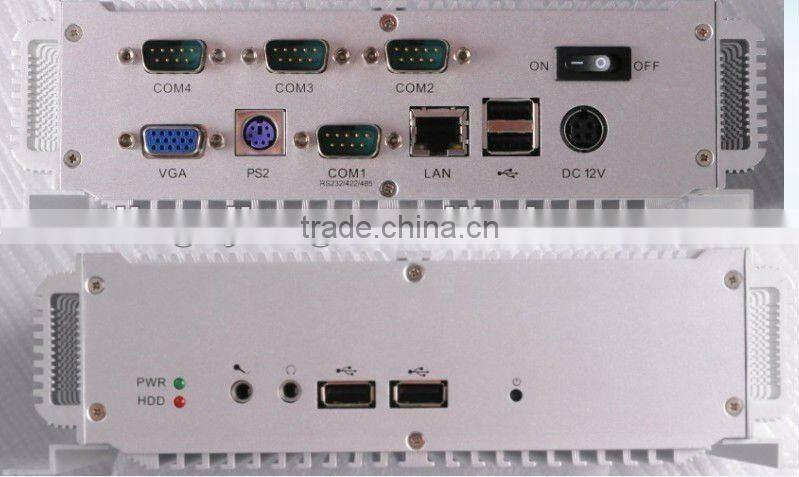

Serial Port: 3xRS-232 ports+1 xRS-232/422/485 selectable ports with DB-9 pin connector.

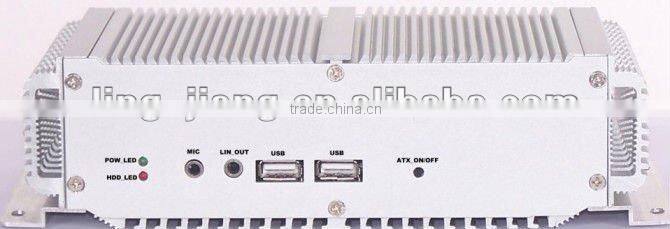

USB Port: The Front:2xUSB 2.0 ports; The Rear:2xUSB 2.0 ports



LAN: 1xRJ45 ports for Gigabit Ethernet



Video Port: 1xVGA female connector for Digital Video Output.



Audio: Mic-in/Line-out



Expansion Bus: 1xMini-card interconnected with optional WIFI module.







Storage Type: 1x2.5 inch drive bay for HDD/SSD; 1xCF Socket







Mechanical Construction:



Material: Aluminum alloy



Dimension(LxWxH):215x115x60 mm



Weight(net): 1.9 kg



Weight(gross): 2.2 kg







Qualification: Certification of CE,FCC,ROHS compliance



Power requirement: Power Input: DC 12V



Color:White
