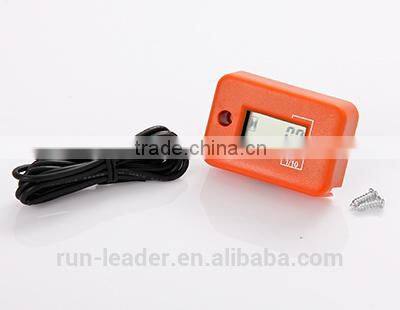

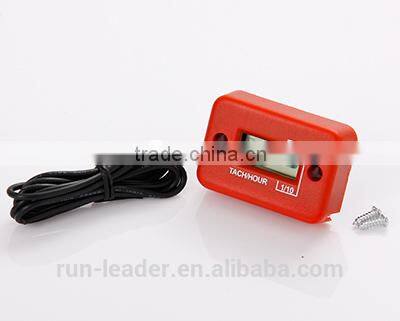

Digital Inductive Waterproof Tachometer Hour Meter Used For Gasoline Engine 2/4 Stroke
Features:
1. Tachometer has the same features as hour meter plus tachometer feature.
2. Indicates operation in RPM and hours.
3. Easy installation no power or ground required.
4. No battery required-connects to spark plug wire.
5. Works on any gasoline engine.
6. Maximum RPMS 15000,Maximum hours 99999
7. Factory set 1,2,4 cycle engine.
Functions:
Tach/hour meter-Shows RPM?s when the engine is running.When the engine is off,the meter shows total hours accumulated.
Installing method

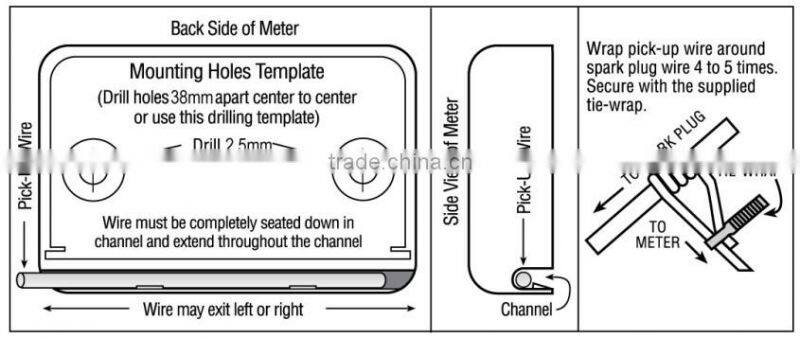

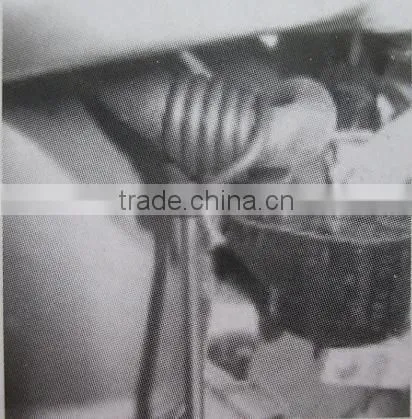

1. Wrap the include pick-up wire around the spark plug wire five times.Start wrapping the pick-up wire about 4cm from the end of spark plug boot.Use the included zip tie to secure the pick-up wire wrapping as shown in the photo below.
2. Before continuing the installation,insert the pick-up wire into the rear of the meter.Start the motor to make sure the meter is picking up the ignition signal.If it is,this will activate the timer on the meter and the icon on the left of the LCD will flash.You?ll have to wait at least 6 minutes for the timer to increase the timer display(1/10th of an hour).If it is not picking up the ignition signal,slide the pick-up wrap closer to the spark plug boot.
3. If the meter is successfully picking up the spark signal,run and zip tie the pick-up along one of the throttle cables.Make sure the pick-up wire can not make contact with the engine. Also,make sure you leave enough slack(about 8 cm )so removing the spark plug wire is possible.Keep in mind the general location of final mounting location on the frame spare.
Securing method:
a.Drilling into your frame with ?2.5mm socket,then secure it to the frame coming with two pick-up screws.
b.Using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties.
Application:
Tachometer hour meter is used for All gasoline Engine,Marine,Motorcycle,Snowmobile,ATV,Glider,Lawn Mower,Golf Carts.etc.

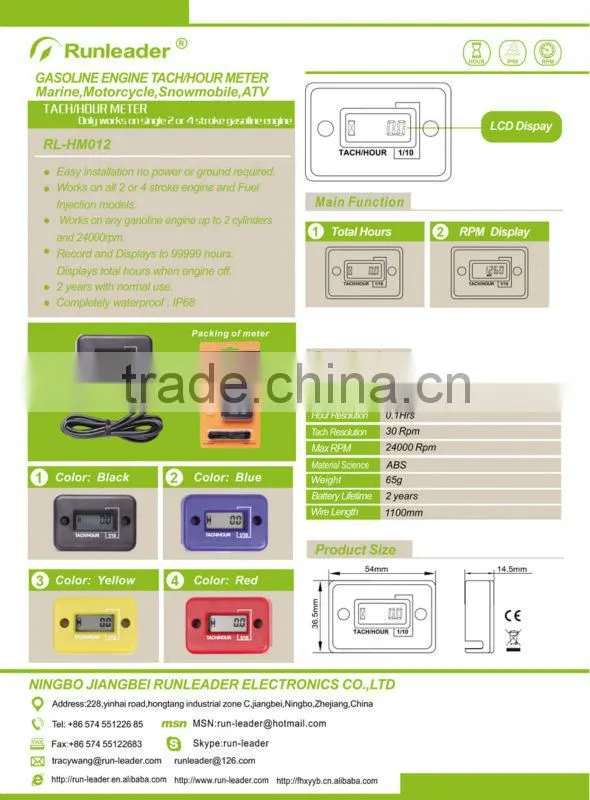

Specification:
Competitive advantage:

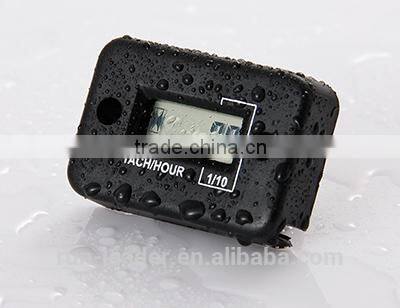

1. Waterproof
2. Inductive
3. No power required
4. Tach/hour meter

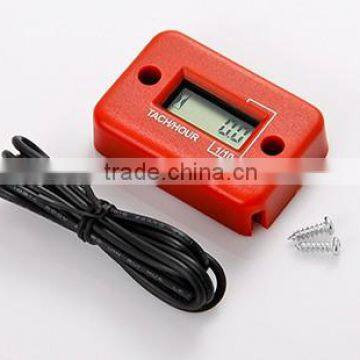

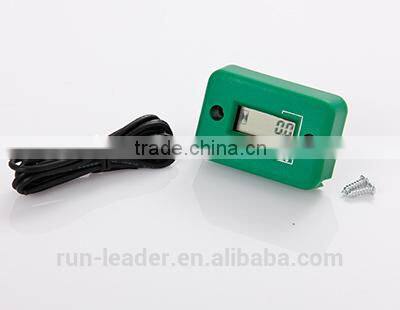

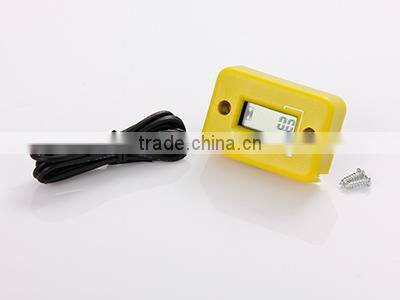

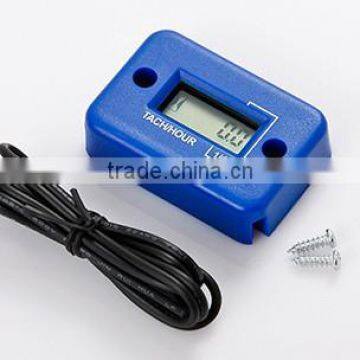

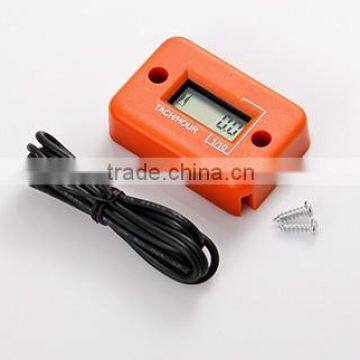

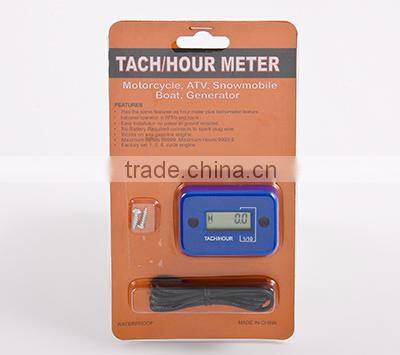

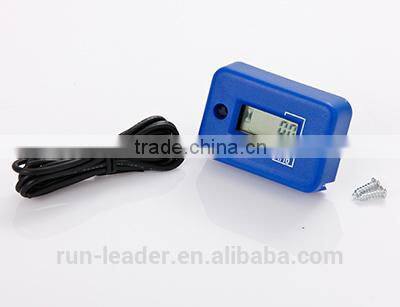

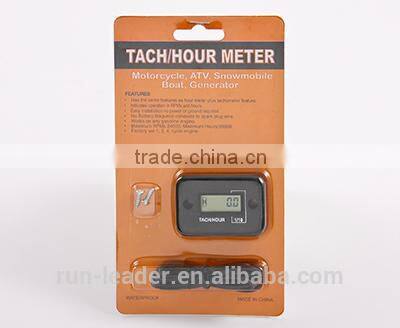

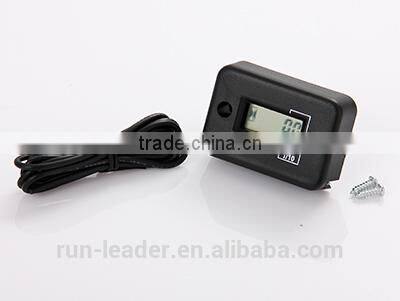

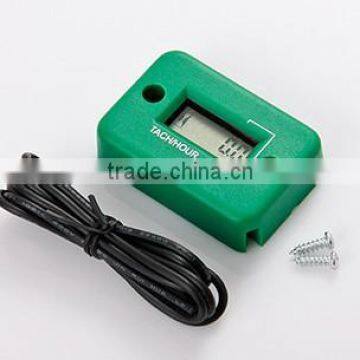

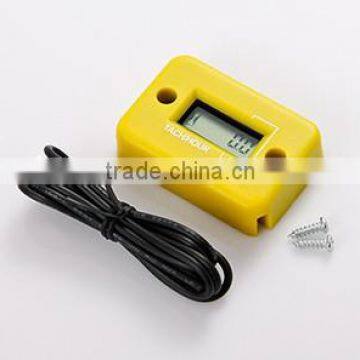

Pictures:

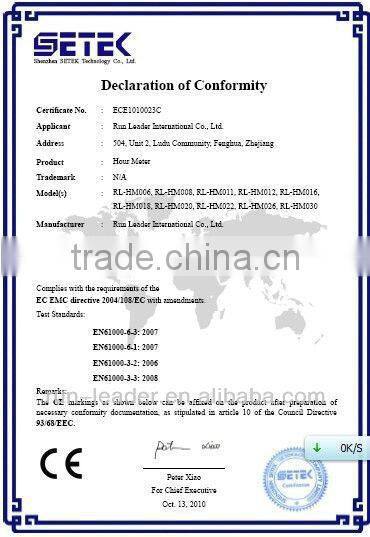

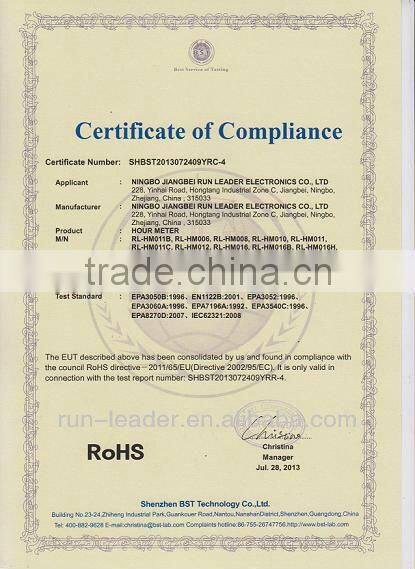

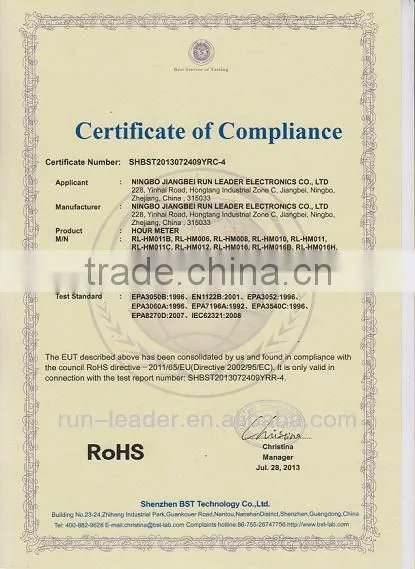

CE&ROHS:
About us:
Ningbo Jiangbei Run Leader Electronics Co., Limited is a manufacturer of tachometers, hour meters, counters, battery indicators, temperature gauges and so on, with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in motorcycles, snowmobiles, ATV, tractors, boats, generators and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
