Customized LED lumisheet/Led light panel/illuminated Panel, LGP
- 1000 Piece / Pieces per Month
- Guangzhou or Shenzhen
- T/T
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | 2835 | Warranty(Years): | 2 | Lamp Luminous Efficiency(lm/w): | 85 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 50 | Working Lifetime(Hour): | 30000 |
Lamp Body Material: | Other, PMMA | IP Rating: | Other | Certification: | CE, UL, GS |
Place of Origin: | China | Brand Name: | Vicorn | Model Number: | LGP |
Product Description
Product Features:
Data sheet for LGP(Light Guide Plate)
1.Raw material:PMMA.
2.PMMA brand:UK Lucite or Japan Mitsubishi.
3.Technology process:Digital UV printing dot.
4.Ink brand:Japanese UV ink.
5. Reflector:Japanese Toray .
5.1.reflexion index:95%.
5.2. Reflector thickness:advertisement 0.225mm,light 0.188mm.
5.3. Reflector material: PET.
6. Uniformity of brightness:for advertisementis 70%,light is 80%-90%
7.Optical efficiency:6mm Light LGP is about 75%-85%.(PS:Different size has differen optical efficiency)
8. Optical efficiency for 600*600 panel light system(72%-73%):
8.1. Input luminous flux(luminous flux of LEDs) :about 3000
8.2. Output Luminous flux is 2179,4Lm
8.3.optical efficiency is : 2174.4:3000=72.65%
9.PLCC LEDs recomend for use with our LGPs: lexstar/S.S.C ,equivalent ,Aot,Nichia or Cree
3020/5630 .
10.Radiation angle for panel light :120 degree.(Due to the LED's angle is 120 degree,the radiation angle of the panel light can not be changed)
Advantage for Vicorn light guide panel
- flexible design of the light-emitting optical dots
we can design the light-emitting optical dots according to customers different light source and different sizes in order to maximize the lighting effect.
2. best quality
vicorn light guide panel,light guide plate,light guide sheet .is using taiwan pure acrylic and 100% japanese UV oil to print the dots.it won’t turn yellow and the printing dots won’t fall down.it has 5 years wattanty
3. good material
vicorn light guide is using 92.5% or above transmittance and pure acrylic taiwan chimei USA lucite and hight transmittance PET as the reflection paper.it ensure every piece of the light guide panel has the good optical effectevenness and brightness.
Vicorn LGPs parameter
LGP wide : 1500mm (make according to customers requirement)
LGP length: 3500mm (make according to customers requirement)
LGP thickness : 2mm,3mm,4mm,5mm, 6mm,8mm, 10mm, 12mm, 15mm

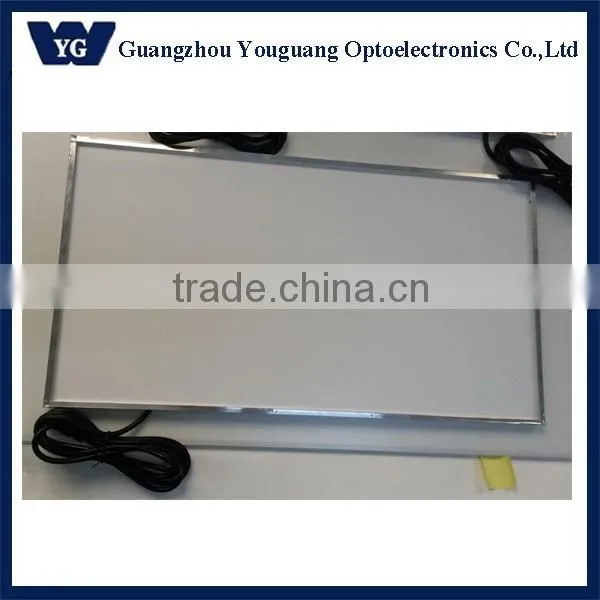

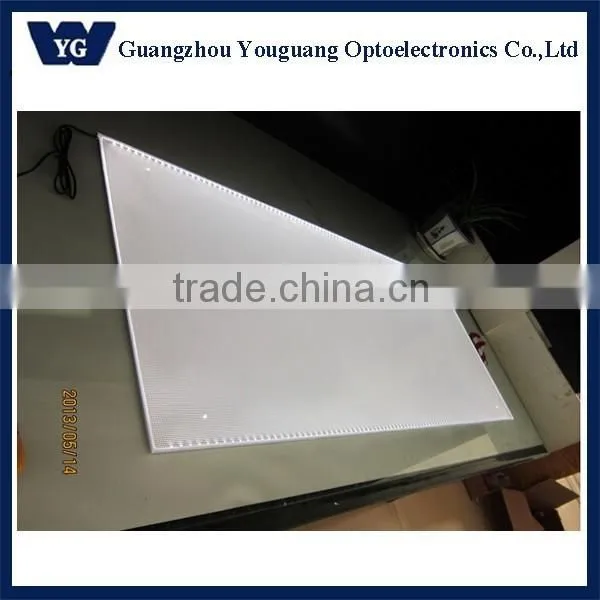

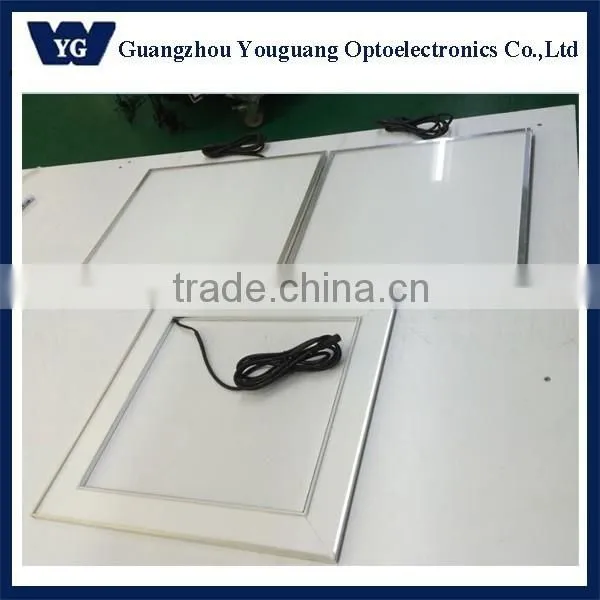

Product Showing:

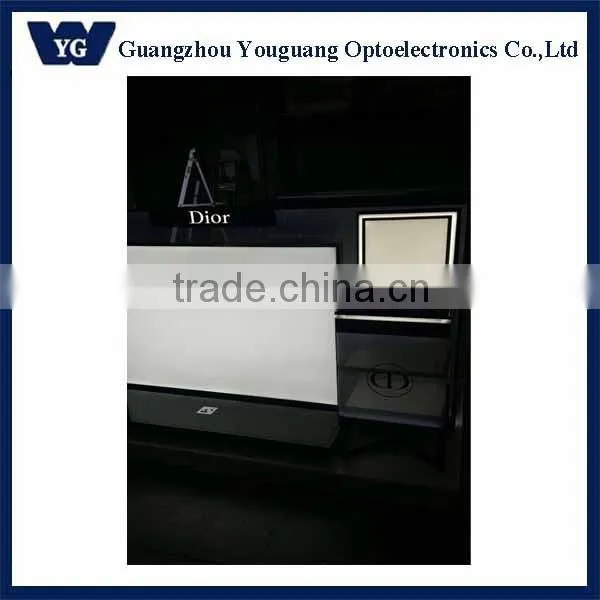

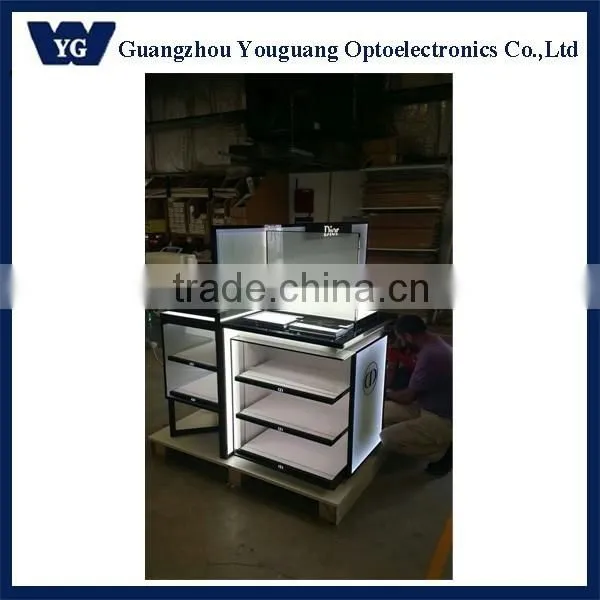

Application:
About Us:
Founded in 2000, Guangzhou Youguang Optoelectronics Co., Ltd with the brand of VICORN is an integrated high-tech enterprise specialized in the research, development, engineering, producing and marketing of LED lighting products & solutions. The main products include LED panel lighting, light guide panel (LGP) and LED light box. With “THE LGP APPLICATION EXPERTS, CUSTOMIZATION SERVICE” as the core of our development policy, VICORN has invested 6M US dollars, occupied over 5000 square meters production space and has more than 100 employees currently.
We use finest material such as Cree, Osram, Nichia….. LED to build reliable LED products, distinguish us from many of our competitors. Equipped with advanced equipment such as auto/semi-auto conveyer line, burning test device, opto-electrical test devices and well-trained production & QC staff, satisfy over 500 valuable customers by timely delivering wide variety of LED lighting products and providing consistently thesolutions of high quality and reasonable price.
VICORN endeavor to develop new products with the cutting-edge LED technology. Our engineering department has abundant experience and know-how of electric component, thermal management, structure layout and optical design. OEM & ODM are accepted. All products are CE certified and ROHS compliant and strictly follow IEC, UL, GS, EU electrical safety standard.
VICORN has an excellent and professional overseas sales team. Except for our high-value Ace products, we also provide prompt, 24-hours ace services to our valuable customers.
With the banner of our core value of “Trustworthiness, Enthusiasm, Respect, Knowledge Transfer, Innovation”, we trust that VICORN will be in an excellent position to meet your requirements. Wish you will find that dealing with VICORN is really an enjoyable experience.
