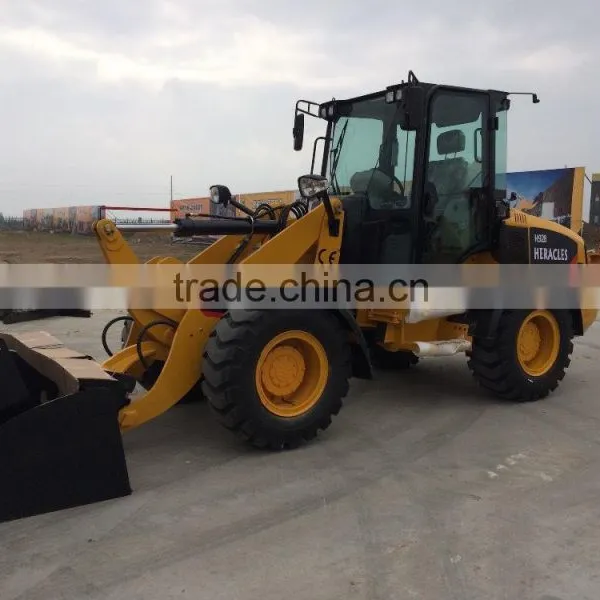

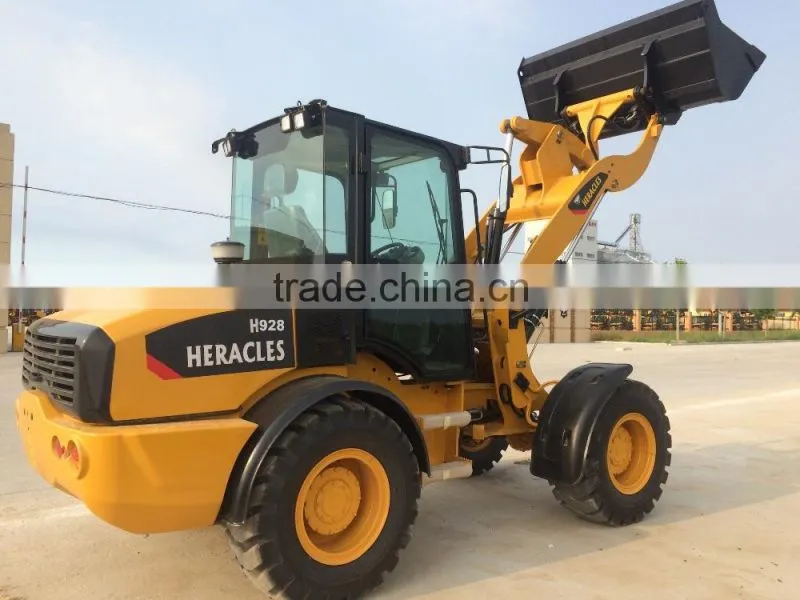

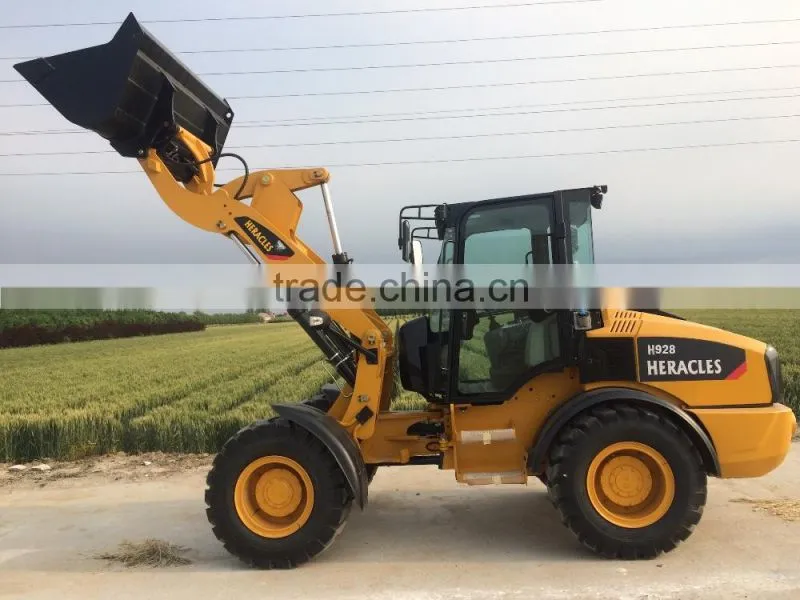

QINGDAO HERACLES Small H928 Wheel Loader
US$ 13,000 - 14,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HERACLES
Model Number:
H928
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QINGDAO HERACLES H928 Wheel LoaderUS$ 13,000 - 14,000MOQ: 1 Piece -
HERACLES H928 Mini Wheel LoaderUS$ 13,000 - 14,000MOQ: 1 Piece
-
H928 Mini Wheel Loader With CE CertificateUS$ 13,000 - 14,000MOQ: 1 Piece
-
HERACLES H580 Mini Wheel Loader With CE CertificateUS$ 14,000 - 14,200MOQ: 1 Piece
-
H928 Small Wheel Loader With EURO3A XINCHAI EngineUS$ 14,000 - 14,100MOQ: 1 Piece
Condition
New
Brand Name
HERACLES
Model Number
H928
Place of Origin
Shandong, China
Type
Mini Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
6170x2040x2695mm
Rated Load
2200kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
| Performance | Model | H928 |
| Rated loading | 2200kg | |
| Operation weight | 5870kg | |
| rated bucket capacity | 1.2m3 | |
| Max. tractive force | ≥54KN | |
| Max. breakout force | ≥45.4KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3300mm | |
| Dump distance | 930mm | |
| Overall dimension (LxWxH) | 6170x2040x2695mm | |
| Min. turning radius | 4510mm | |
| Engine | Model | YN38GBZ (YUNEI brand), Euro2 |
| Type | Vertical, in-line, water cooled, 4-cylinder, turbo type | |
| Rated power | 76KW / 2400rpm | |
| Max. torque | 285N.m | |
| Displacment | 3.76L | |
| Transmission system | Torque converter | ZL280 |
| Gearbox mode | Contershaft, power-shift | |
| Gear shift | 2 forward (1 high speed, 1 low speed), 1 reverse | |
| Max. speed | 35km/h | |
| Drive axle | Main reducing spiral | Circular Arc Bevel gear, single stage |
| Decelerating mode | Single stage planetary type | |
| Wheelbase | 2470mm | |
| Track base | 1570mm | |
| Min. ground clearance | 390mm | |
| Hydraulic system | System working pressure | 16Mpa |
| Boom lifting time | 4.8s±0.2s | |
| Total time | 9.2s±0.5s | |
| Fuel tank capacity | 80L | |
| Function of leveling automatically | Yes | |
| Brake system | Service brake | hydraulic disc brake on 4 wheels |
| Parking brake | flexible shaft operated external drum | |
| Tyre | Tyre size | 16/70-20 |
| Front tyre pressure | 0.22Mpa | |
| Rear tyre pressure | 0.18Mpa |
