Help CenterPMSM Motor 7.5kw for Electric Car
US$ 680 - 800
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yinghao
Model Number:
ZZDC-
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PMSM Motor for Electric CarNegotiableMOQ: 10 Pieces -
1Ton Scissor Jack for Mini CarNegotiableMOQ: 10 Units
-
Samll Gasoline Engine,600cc,In-line,2 Cylinders, DOHC, 8 ValvesUS$ 980 - 1,200MOQ: 2 Units
-
Motor Controller for Electric CarNegotiableMOQ: 2 Pieces
-
Electric Power Steering (EPS) Column AssemblyUS$ 285 - 500MOQ: 10 Pieces
Place of Origin
Shandong, China
Brand Name
Yinghao
Model Number
ZZDC-
Usage
Car
Certification
CCC, CE
Type
Gear Motor
Torque
80N.m
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Waterproof
Speed(RPM)
3200 ~ 6000
Continuous Current(A)
110A ~ 450A
Output Power
7.5kw ~ 15kw
Voltage(V)
72v
Efficiency
IE 1
Specifications
PMSM motor 7.5kw for electric carseries excited
1) Power: 7.5kw
2) Voltage:72V,96v
3)5000rpm
PMSM motor 7.5kw for electric car
1) Power:7.5kw
2) Voltage:72V,96V
3)3200 ~ 6000rpm
It features:
Heavy duty commutator construction
Special purpose designs for a wide range of applications
Robust construction for long and reliable service life
Wide range of speed regulation with constant torque output
High efficiency designs for maximum run time
High efficiency motor
Fully impregnated frame and field

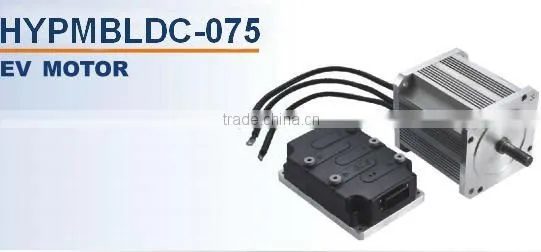

| Model | HYPMBLDC-075 |
| Type | Permanent magnet synchronous brushless DC motor |
| Rated power | 7.5KW |
| Peak power | 15KW |
| Magnetic material | Sintered Nd Fe B |
| Output method | Spline |
| Matching vehicle | Low speed electric car,Electric agricultural vehicle |
| Rated voltage | 72(V) |
| Rated current | 110(A) |
| Peak current | 450(A) |
| Peak speed | 6000(rpm) |
| Rated speed | 3200(rpm) |
| Rated torque | 80(N.m) |
| Cooling method | Natural cooling |
| Temperature sensor | PT100 |
| Position sensor | Resolver |
| Insulation level | H |
| Work environmental temperature | -40°C~65°C |
| The effective material Power density (kw/kg) | 1.85 |
