it is used in tire hot retreading together with the segment mold. it can be customized from R47 to R63.
Features:
1. Yalun patented product, patent No.200600035603.6
2. Steamer-type heating system, better heating temperature uniformity.
3. External bladder design, loading bladder before putting into curing press, which reduces the curing press failure rates, and is easy to repair and maintain.
4. Flexible and stretchable lower part, easy for loading and unloading tire.
5. Cost-efficiency, save the equipment purchasing cost and new tire producing cost.
6. Easily assemble & disassemble, repair and maintain the bladder.
7. Replaceable internal mold.
8. Frame structure, which can bear high internal pressure.
9. PLC automatically-control, can customize program.
 |

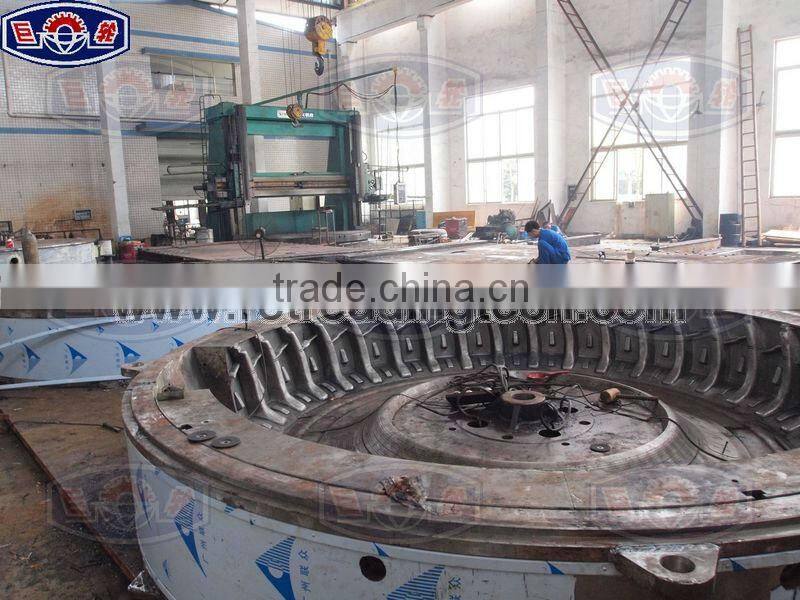

| SEGMENT MOLD FOR GIANT OTR TIRES |
|

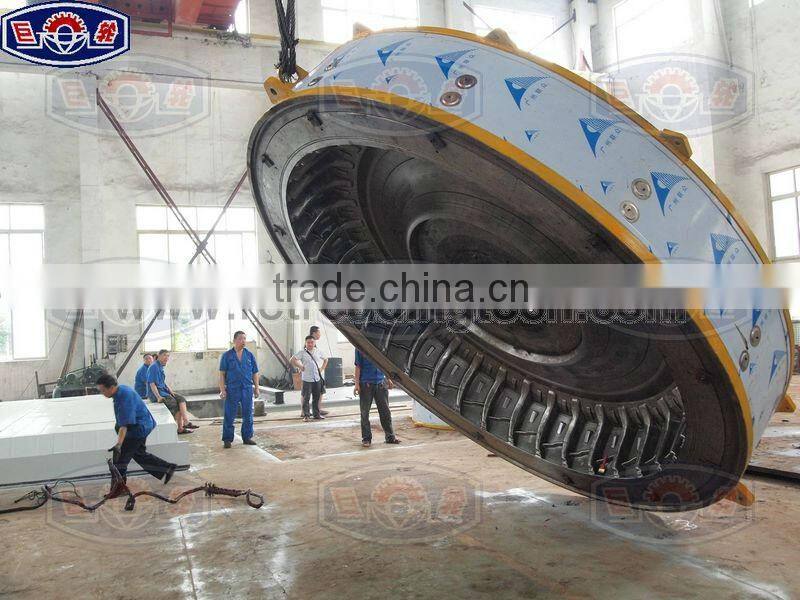

| SEGMENT MOLD FOR GIANT OTR TIRES |
|

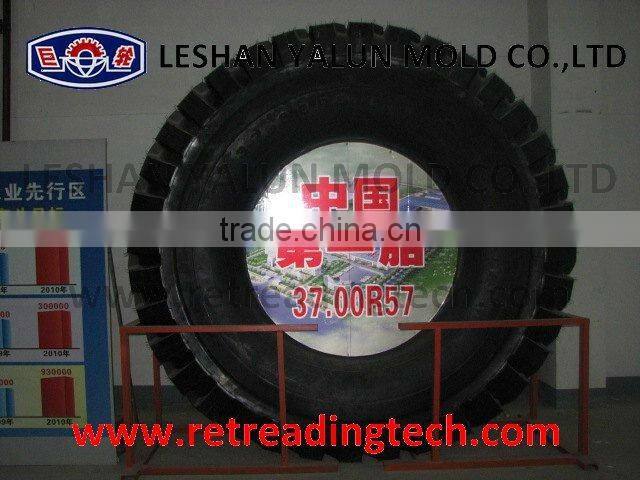

| The OTR Tire Made by Our LLGH Press in Hai An China |
|

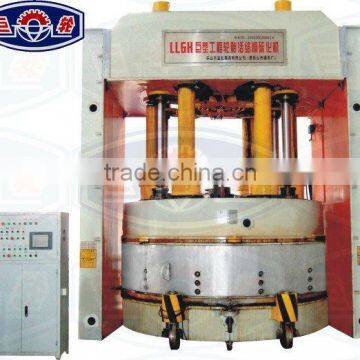

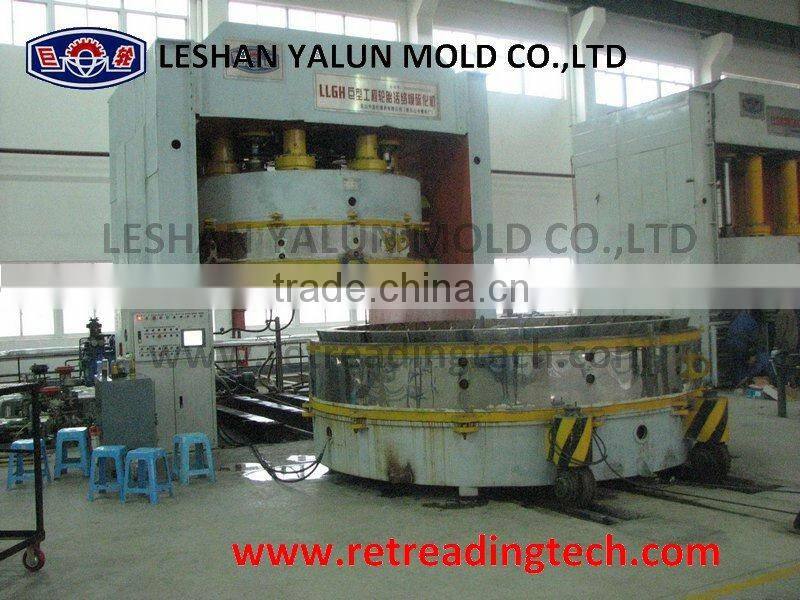

| the whole view of LLGH Press |
|

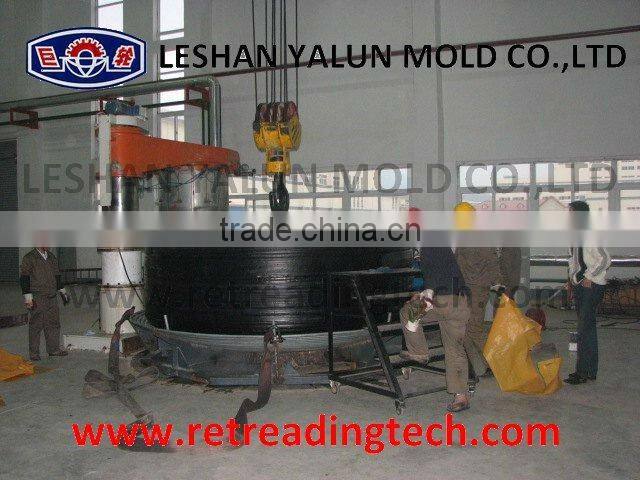

| put the green tire into the curing press |
|

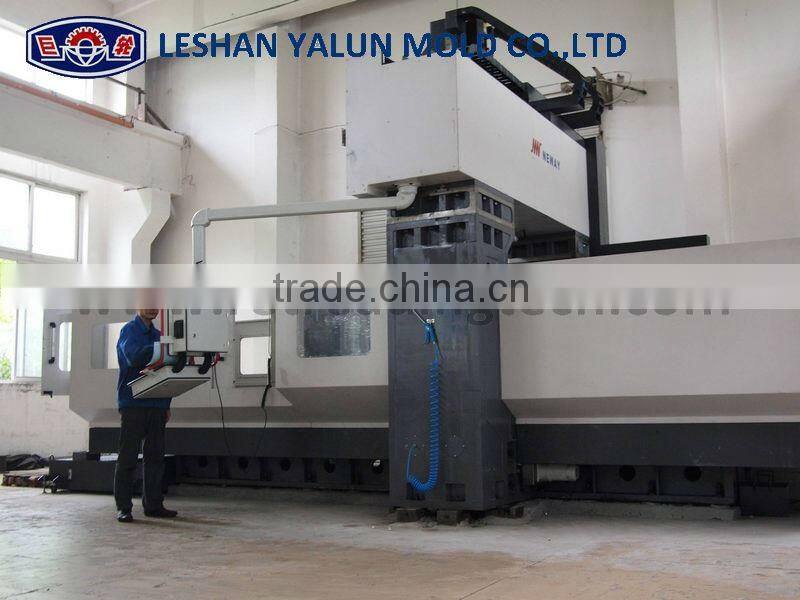

| Giant OTR tire mold CNC machinery |
Specifications:
| Main model | LLGH-4460 | LLGH-4250 | LLGH-4050 | LLGH-3850 | |
| Tire size range | 40.00R57 | 37.00R57 | 36.00R51 | 27.00R49 | |
| Dimension (mm) | 5490×4200×7380 | 5280×4030×7180 | 5080×3830×7180 | 4650×3600×6840 | |
| station pressure | High pressure Pump ( Mpa) | 26.0 | 24.0 | 21.5 | 23.0 |
| Low pressure Pump ( Mpa) | 10 | ||||
| Nominal mold locking force (KN) | 33060 | 30520 | 27340 | 17330 | |
|
| our company strength |
