Help CenterRescue Cutter (CNQ20,CE)
Related Products
Specifications
Concrete cutting machine1. Easy crank for raising/lowering cutting depth
2. Replace blade easily
3. Japanese shaft bearings

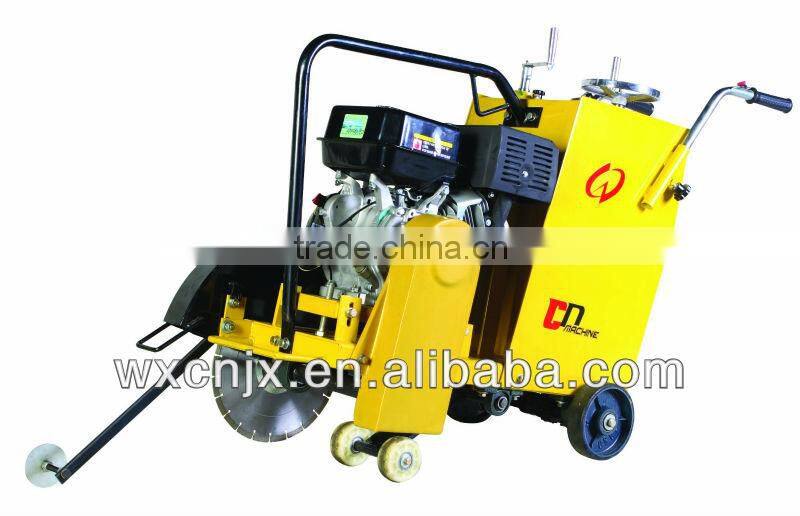

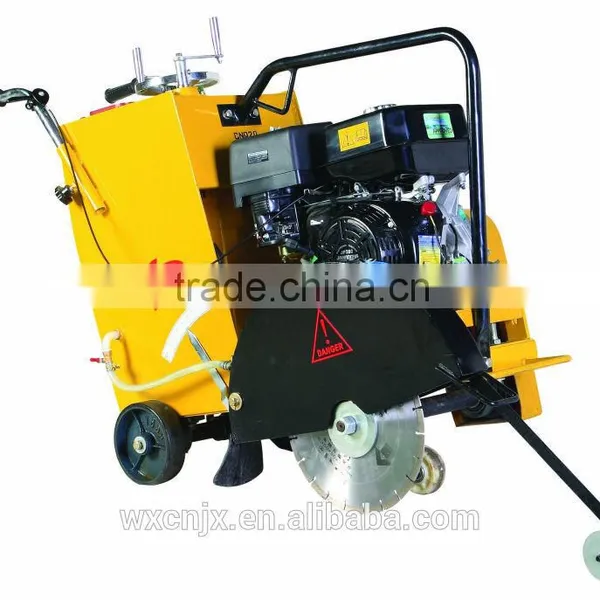

CONCRETE CUTTER
Concrete cutters are designed for strength, durability and performance. Whether cutting concrete or asphalt, the reinforced steel box frame design adds strength necessary to reduce vibration while sawing. Minimizing vibration enhances the performance of the blade and extends the life of the saw.
Technical Specification:
Model |
CNQ20 |
|
Engine Type |
Honda GX 390 |
Chinese Diesel KM186F/E |
Power kw(hp) |
9.6(13.0) |
6.6(9.0) |
Weight kg(lbs) |
171(377) |
186(409) |
Max Cutting Depth cm(in) |
17(6.7) |
|
Blade Size cm(in) |
35-50(14-20) |
|
Depth Adjustment |
Handle Rotation |
|
Driving |
Semi-self propelled |
|
Water Tank Capacity(L) |
40 |
|
Package cm(in) |
115*57*104(45.3*22.5*40.9) |
|
* Optional Engline: 1,Chinese Petrol Engine 13HP. 2,B&S 13.5HP. 3,Kohler CH440 14HP. | ||
