concrete screedEvently placed stainless steel air piston vibrators ensure a well compacted concrete finish with one pass.

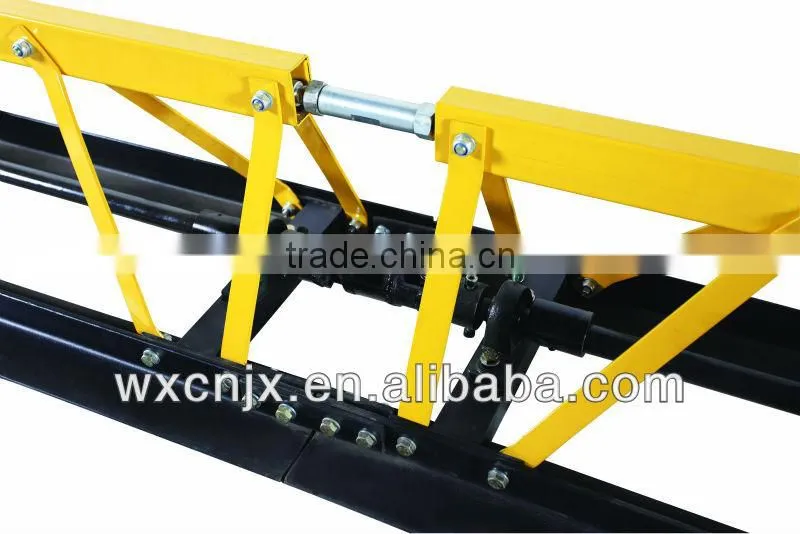

CONCRETE TRUSS SCREED
Concrete truss screed is a job-proven machine,modular in construction,and can be configured to suit your industrial or commercial floors of different width. This light weight truss with deoubl extruded aluminium alloy blades enable faster placements of concrete with higher level of flatness.Evenly placed stainless steel air piston vibrators ensure a well compacted concrete finish with one pass.
Technical Specification:
Model |
CNZL |
|
||||||||
Engine Type |
Honda GX160 |
Honda GX270 |
Honda GX390 |
|
||||||
Power kw(hp) |
4.0(5.5) |
6.6(9.0) |
9.6(13.0) |
|
||||||
Optional Length(m) |
4-6 |
7-10 |
11-16 |
|
||||||
Truss Material |
Steel |
|
||||||||
Truss Length |
2m or 1m |
|
||||||||
Travel Speed |
1.2-2.5m/min |
|
||||||||
Impact Force |
120N |
|
||||||||
Working Thickness |
200mm |
|
||||||||
|
*Optional Engine: 1.Chinese Petrol Engine. 2.B&S 3.Kohler |
|
|
|
|
|||||
