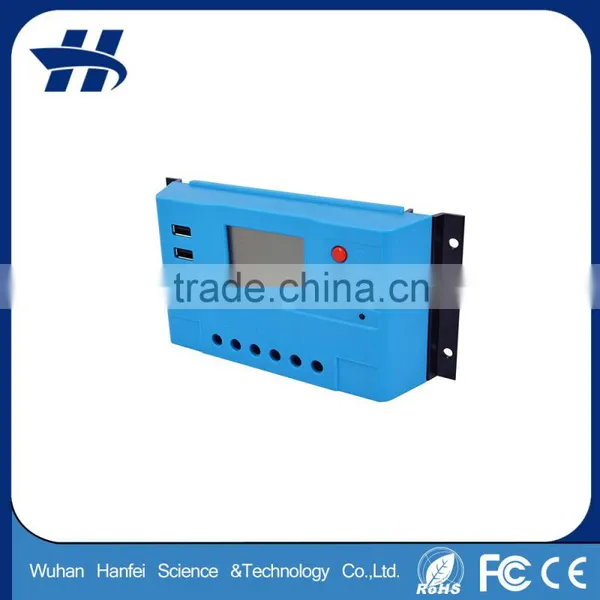

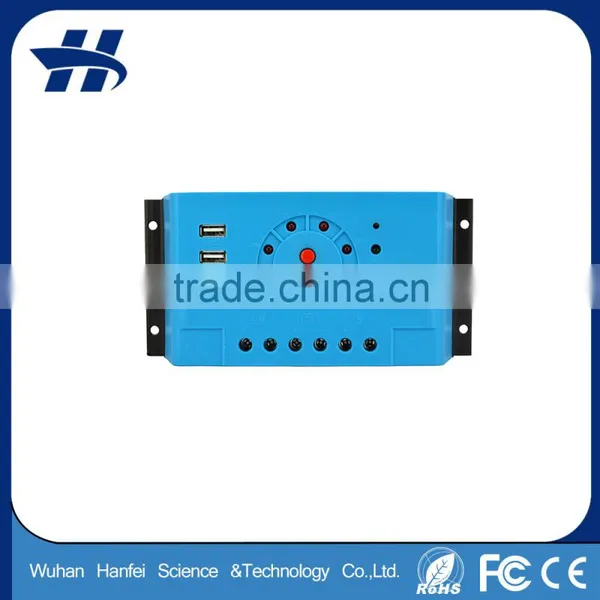

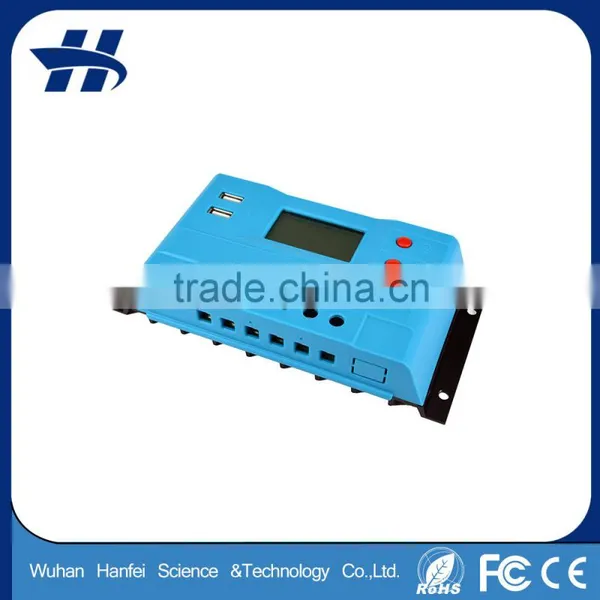

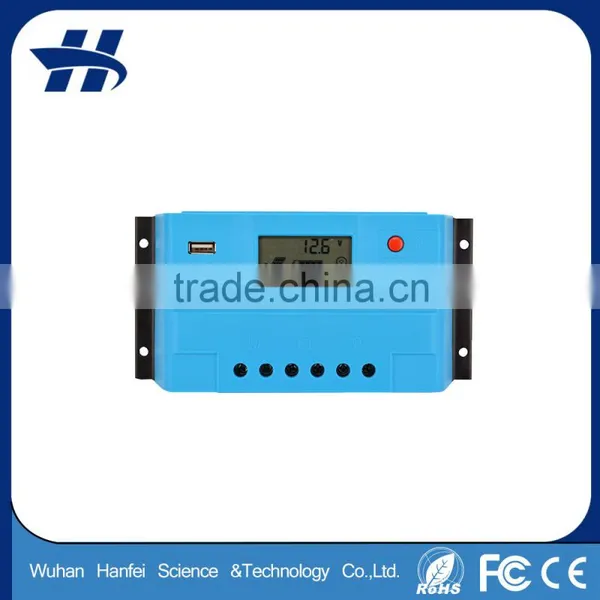

Factory Price 12v 24v PWM Solar Charger Controller 30A Intelligent Solar Controller with CE ROHS
This series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. Most parameter values can be set to meet various applications.
Ⅰ :product parameters
Product size:188mm*95mm*40mm
1pc/box,40pcs/carton
Carton size:545mm*425mm*205mm
CBM/ctn:0.046
G.W: 16.8kg
Ⅱ : product details
Ⅲ :Features:
1. Vivid LED indicators show system battery capacity, charging and discharging state of battery. 2. Protection functions such as overcharging, over discharging, overload and reverse connection. 3. PWM charging increases charging efficiency by 3% to 6%, compared with non-PWM charging. 4. The parameters of charging and discharging are preset, so no need to adjust the parameters. (Special parameters need to be advised in advance.)
5. USB output function.
Technical data
System voltage |
12V/24V (Auto) |
Low voltage protection |
10.7V/21.4V |
||
Rated current |
20 |
30A |
Low voltage reconnecting |
12.6V/25.2V |
|
No load loss |
≤12.5mA (USB disconnect) |
Overloading |
≥1.2*rated current, 60s ≥1.5*rated current, 10s ≥1.8*rated current, 0.2s |
||
Charging mode |
PWM |
USB output |
5V, 1A |
||
Float charging voltage |
13.8V/27.6V |
Installing cables size |
≤6mm2 |
≤16mm2 |
|
Absorption charging voltage |
14.4V/28.8V(lasting time: 2 hours) |
Working temperature |
-20℃ ~ 50℃ |
||
Charging/Discharging circuit voltage drop |
<0.22V (<0.12V) |
Dimension (L x W x H) |
188mm x 95mm x 40mm |
||
Net weight |
340g |
345g |
|||
1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3 Q:What certificate do you have?
3 A:We have CE,ROHS.
4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.
5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.
6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.
7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
