Curing Chamber/ Autoclave

Specifications

Curing chamber is a device that applies specified heat and pressure to adhere the new pre-cured tread to the casing.

Function:

Curing chamber is an autoclave-type device that applies specified heat and pressure, and over a period of time, causes the bonding layer in the built tyre to cure, to permanently adhere the new pre-cured tread to the prepared casing.

Two controlling systems are available based on different clients’ needs, manual (semi-automatic), and PLC automatic (LCD screen optional). Main data and parameters can be seen on the LCD screen, and be recorded by removable device.

The hot source can adapt steam, oil, and electric.

All our curing chambers are customized, so the capacity is based on the productivity, commonly available for 12 tyres, 14 tyres, 16tyres, 18tyres, 22tyres, and 25tyres.

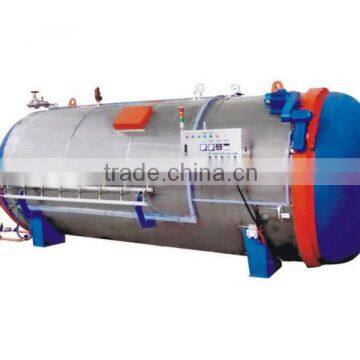

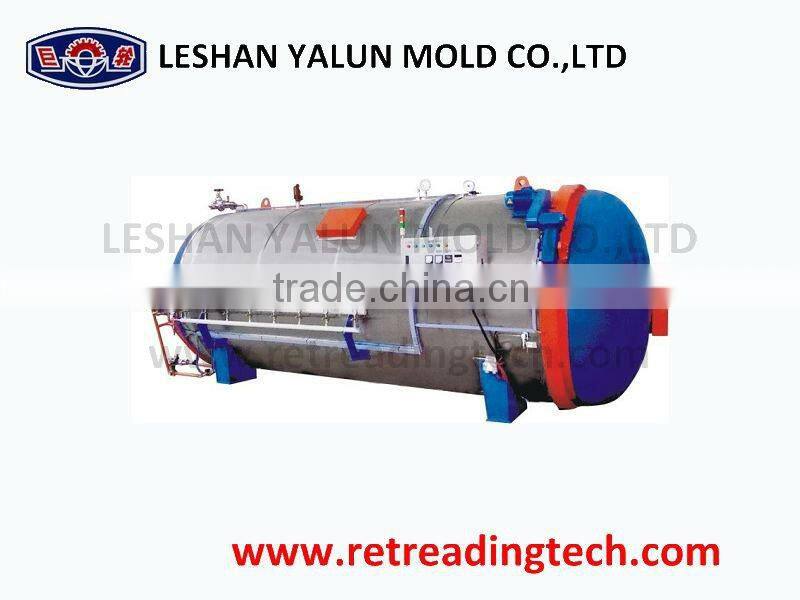

curing chamber manufatured by Yalun







Features:

1. Both manual (semi-automatic) controlled and PLC automatic (LCD screen optional) controlled.
2. Apply aerospace insulation materials and multi-layers insulation, energy efficiency and cost saving.
3. The hot source can adapt steam, oil, and electric.
4. Optimal design, balanced and uniformed temperature in the chamber, for special design of hot-air cycling system.
5. Multiple safety interlock to guarantee safe operation.

Specifications:



Model
Tyre Number	12.00R20-12	12.00R20-14	12.00R20-16	12.00R20-18	12.00R20-22	12.00R20-25
Theoretical steam consumption (kcal/h)	43000	52000	60000	65000	70000	90000
Electric hot-tube power—electric(kw)	50	60	70	75	80	100
Electric hot-tube power—steam(kw)	8	8	9	9	12.5	12.5
Fan motor power(kw)	4	4	5	5	11	11
Width—uncovered(mm)	5900	6600	7400	7800	8900	9900
Width—covered(mm)	5100	5800	6600	7100	8100	9100
Practicable work width(mm)	3600	4200	5000	5500	6800	7500
Height(mm)	2200
Depth(mm)	2900
Weight (t)	4.6	4.9	5.3	5.52	5.9	6.4
Designed pressure(Mpa)	0.9
Maximum work pressure(Mpa)	0.8
Experimental pressure(MPa)	1.1
Designed temperature(°C)	180
Power supply	AC380V,AC220V,50HZ
Compressed air source(Mpa)	0.8
