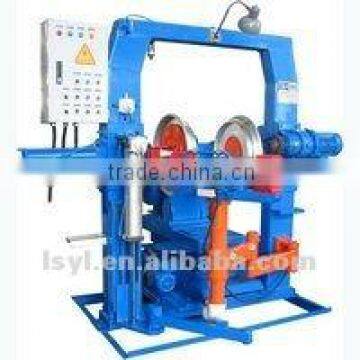

Tire Polisher YLM-series

Specifications

Tire Buffer YLM-series are used to remove the worn tread surface, true up the roundness, and prepare the surface for a new tread



Function:



YLM Frame Profiling Buffing Machine is used to buff the tread of retreading tyre. Through fixing tyre on the two rims of buffing machine, control the hand button to buffing the tread of tyre to make it flattening and easy to plaster.



Features:

1. This machine buffs tread through air inflation and profiling, which lower labor intensity immensely, and improves quality of tyre buffing and efficiency.
2. Through controlling the hand button to operate the buffing machine, it is easy to use and save energy for workers.
3. Tyre is fixed on the two rims of buffing machine, and rotates on principal axis, which is safe for workers.
4. Electric and pneumatic driven, conventional relay control.
5. Vertical buffing with rasp blades.
6. Buffing radius is trimmed according to the template.

inner blade









Specifications:



Tire size range	7.50R16~12.00R20
Dimension (mm)	2300×2000×1900
Electric machine power (KW)	18+3
Power supply	AC380V,AC220V,50HZ
Compressed air source (MPa)	0.8





Full-range tire retreading equipments-cold/cold retreading
