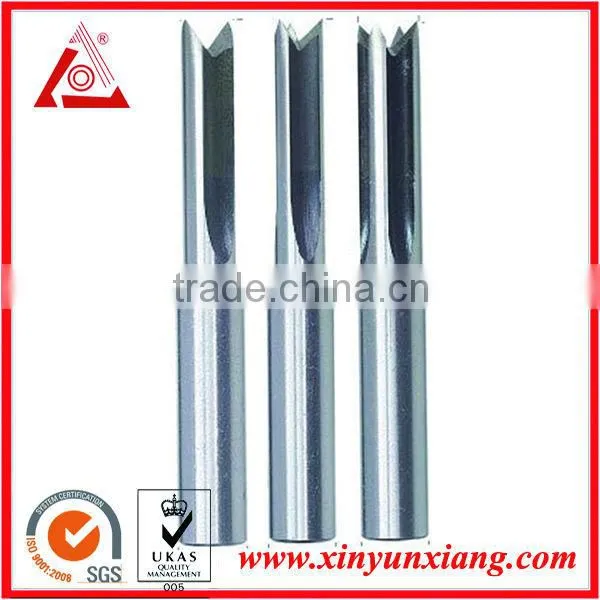

Double Diamond Flute Straight Bit
US$ 10 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Luckgem
Model Number:
LDJ550201
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ceratizit Solid Carbide Roughing Spiral BitUS$ 15 - 300MOQ: 10 Pieces -
Low Price High Qualtiy Straight BitUS$ 10 - 15MOQ: 1 Piece
-
Element 6 Diamond Round Bottom BitUS$ 130 - 180MOQ: 1 Piece
-
Element 6 PCD CNC Router Bit for WoodworkingUS$ 80 - 200MOQ: 1 Piece
-
Factory Sell Carbide Straight BitUS$ 10 - 15MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Luckgem
Model Number
LDJ550201
Type
Power Tool Parts
Product Description
1.This stright bits can be used on CNC center,CNC engraving machinesboring machine for MDF, solid wood, particle
board etc.
2. The diamond is element 6
3. Life span is much more longer than standard type.
4. Panel edge is not easy to break
5.high hardness , high strength
6.Carbon steel body,Diamond tipped
Specification
| Size | Shank Diameter(d) mm | Cutting Diameter (D) mm | Cutting height (H) mm |
| 1/2*1/4 | 12.7 | 6.35 | 20 |
| 1/2*5/16 | 12.7 | 7.96 | 25 |
| 1/2*3/8 | 12.7 | 9.52 | 30 |
| 1/2*1/2 | 12.7 | 12.7 | 30 |
| 1/2*5/8 | 12.7 | 15.9 | 30 |
| 1/2*3/4 | 12.7 | 19.05 | 30 |
| 1/2*7/8 | 12.7 | 22.20 | 30 |
| 1/2*1 | 12.7 | 25.40 | 30 |
| 1/2*1-1/8 | 12.7 | 28.60 | 30 |
| 1/2*1-1*4 | 12.7 | 31.75 | 30 |
| 1/2*1-3/8 | 12.7 | 34.90 | 30 |
| 1/2*1-1/2 | 12.7 | 38.10 | 30 |
| 1/4*1/4 | 6.35 | 6.35 | 20 |
| 1/4*5/16 | 6.35 | 7.96 | 25 |
| 1/4*3/8 | 6.35 | 9.52 | 30 |
| 1/4*1/2 | 6.35 | 12.70 | 30 |
| 1/4*5/8 | 6.35 | 15.90 | 30 |
| 1/2*1/2*1-1/4 | 12.7 | 12.7 | 31.75 |
| 1/2*1/2*1*1/2 | 12.7 | 12.7 | 38.10 |
| 1/2*1/2*2 | 12.7 | 12.7 | 50.80 |
| 1/2*2-1/2 | 12.7 | 12.7 | 63.50 |
| 1/2*1/2*3 | 12.7 | 12.7 | 76.20 |
| 1/4*1/4*1-1/4 | 6.35 | 6.35 | 31.75 |
| 1/4*3/8*1-1/4 | 6.35 | 6.35 | 31.75 |
un-standard sizes can be customized according to customer's requirement.
Company Information
ShenZhen Xinyunxiang Precision Cutting Tools Co. Ltd. is a high-tech enterprise establish in 2001, we are specialized in not only safe, efficient, precision cutting tools but also the research and producion of tool systems. Our production are widely used in a range of fields, such as furniture, floor processing, building material, PCB, cars, aerospace etc. With the years of continuous exporation and development, the company has a number of highly qualified management and research personel, has accumulated aboundant production experience, has introduced the world's most advanced production line and the most sophistiated means of test, to make sure every our products can meet with the ISO9001:2008 Management system certifiation of DAS organization in UK.
to provide more thoughful, conventient sales and after sales service, we have set up several branches on after another in HK, Dongguan, Kunshan, ChangZhou, Beijing, Shanghai, Wuhan, Chengdu for the research, production, sales and after sales full service system. No matter where are you, we can provide our good service to you a.s.a.p
we have built the business philosophy and corporate culture of "intergrity, progmatic hard working innovation:, adhere to "quality is life" prinple from the beginning. We sincerely hope we can create a better tomorrow together with you.
Certification Company awarded
Fair company attended

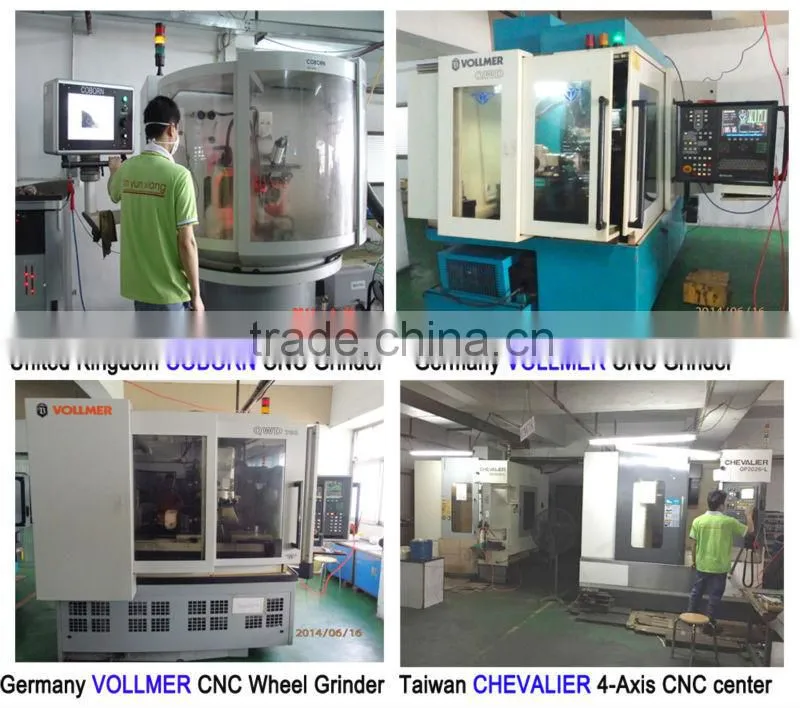

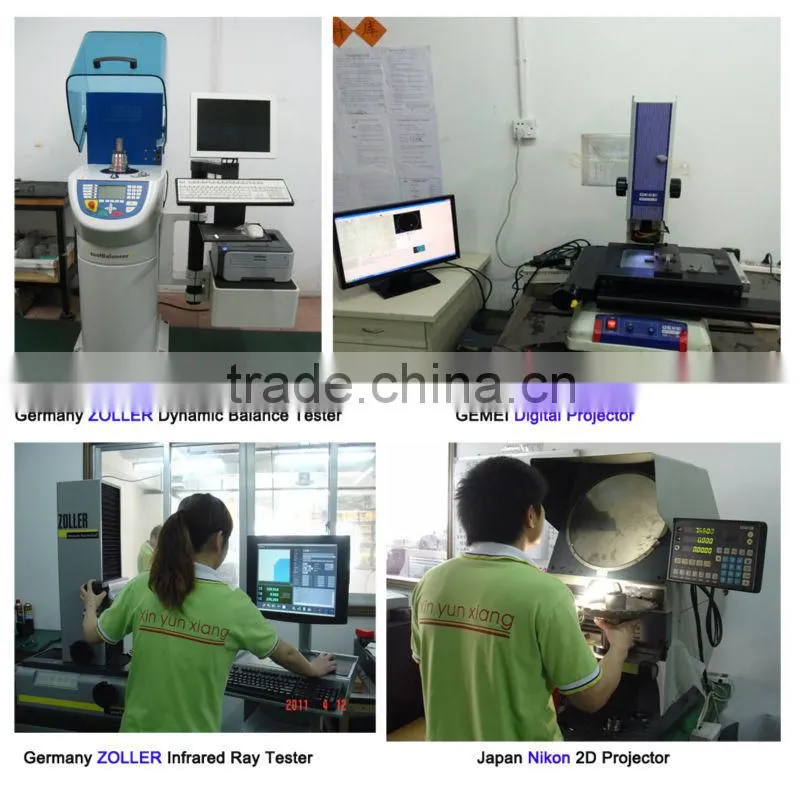

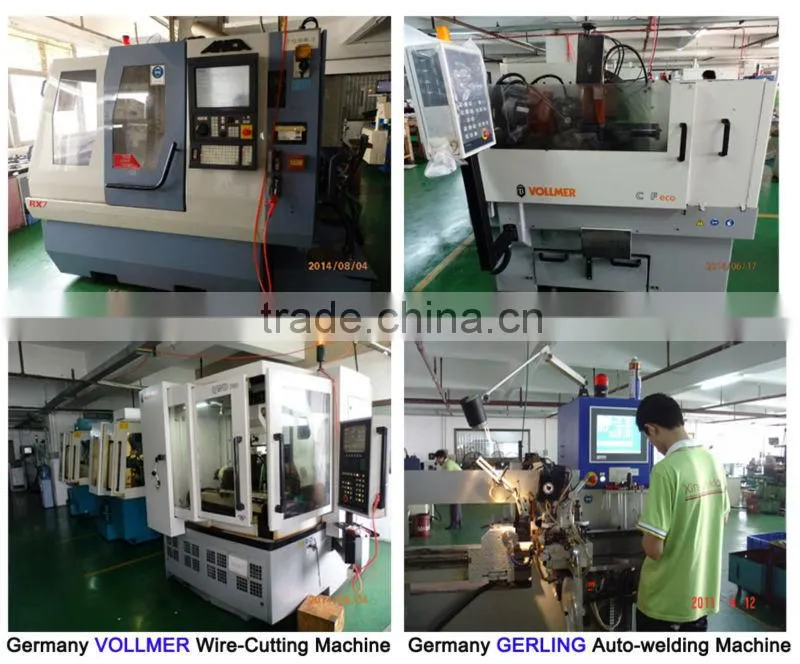

Machine and Test equipment
