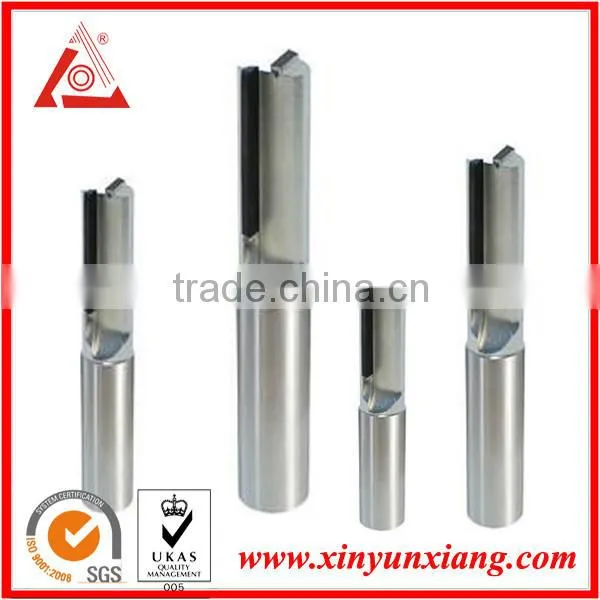

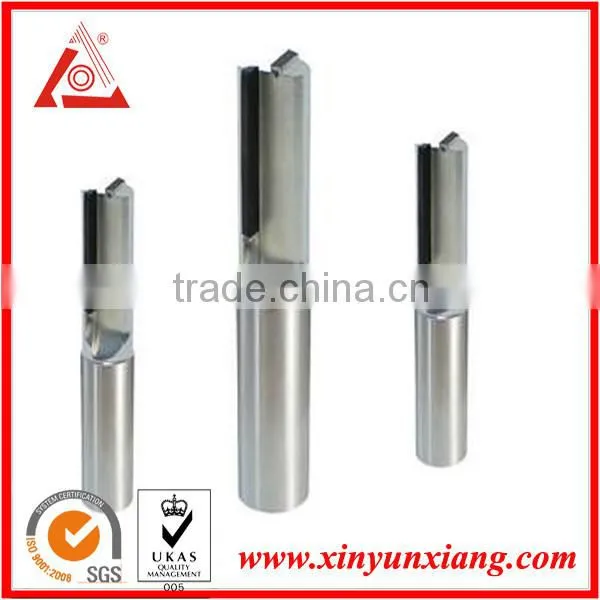

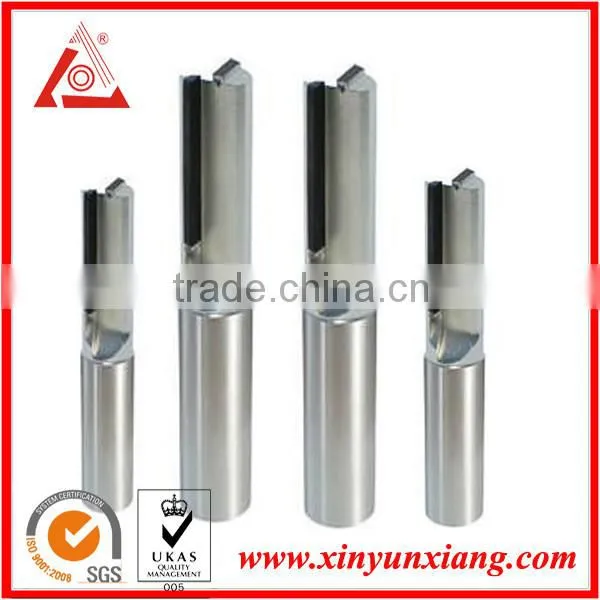

1.This stright bit can be used on CNC center,CNC engraving machinesboring machine for MDF, solid wood, particle board etc.
2. The diamond is imported from Element 6
3. Life span is much more longer than standard type.
4. Panel edge is not easy to break
5.high hardness , high strength
6.Carbon steel body,Diamond tipped
Specification
Standard sizes we produce:
| Size | Shank Diameter(d) mm | Cutting Diameter (D) mm | Cutting height (H) mm |
| 1/2*1/4 | 12.7 | 6.35 | 20 |
| 1/2*5/16 | 12.7 | 7.96 | 25 |
| 1/2*3/8 | 12.7 | 9.52 | 30 |
| 1/2*1/2 | 12.7 | 12.7 | 30 |
| 1/2*5/8 | 12.7 | 15.9 | 30 |
| 1/2*3/4 | 12.7 | 19.05 | 30 |
| 1/2*7/8 | 12.7 | 22.20 | 30 |
| 1/2*1 | 12.7 | 25.40 | 30 |
| 1/2*1-1/8 | 12.7 | 28.60 | 30 |
| 1/2*1-1*4 | 12.7 | 31.75 | 30 |
| 1/2*1-3/8 | 12.7 | 34.90 | 30 |
| 1/2*1-1/2 | 12.7 | 38.10 | 30 |
| 1/4*1/4 | 6.35 | 6.35 | 20 |
| 1/4*5/16 | 6.35 | 7.96 | 25 |
| 1/4*3/8 | 6.35 | 9.52 | 30 |
| 1/4*1/2 | 6.35 | 12.70 | 30 |
| 1/4*5/8 | 6.35 | 15.90 | 30 |
| 1/2*1/2*1-1/4 | 12.7 | 12.7 | 31.75 |
| 1/2*1/2*1*1/2 | 12.7 | 12.7 | 38.10 |
| 1/2*1/2*2 | 12.7 | 12.7 | 50.80 |
| 1/2*2-1/2 | 12.7 | 12.7 | 63.50 |
| 1/2*1/2*3 | 12.7 | 12.7 | 76.20 |
| 1/4*1/4*1-1/4 | 6.35 | 6.35 | 31.75 |
| 1/4*3/8*1-1/4 | 6.35 | 6.35 | 31.75 |
Non-standard sizes can be customized according to customer's requirement.
Shenzhen Xinyunxiang Precision Cutting Tools Co. Ltd. is a high-tech enterprise establish in 2001, we are specialized in not only safe, efficient, precision cutting tools but also the research and producion of tool systems. Our production are widely used in a range of fields, such as furniture, floor processing, building material, PCB, cars, aerospace etc. With the years of continuous exporation and development, the company has a number of highly qualified management and research personel, has accumulated aboundant production experience, has introduced the world's most advanced production line and the most sophistiated means of test, to make sure every our products can meet with the ISO9001:2008 Management system certifiation of DAS organization in UK.
