Specifications
fiber reinforced plastic 300w to 200kw wind turbine blades1.Low start up wind speed
2.Life span:20~25 years
3.CE approved
Fiber reinforced plastic 300w to 200kw wind turbine blades
Product description
FRP, (Fiber Reinforced Polymer) acronym, the existing CFRP, GFRP, AFRP, BFRP so on.
Chinese in FRP refers GFRP. FRP composite material is a fiber material of the base material
according to a certain mixing ratio, after a special extrusion die, drawing the formation of
high-performance materials.Since the resin used in different varieties, so there are glass fiber
reinforced polyester, glass fiber reinforced epoxy , phenolic FRP said. Light and hard,
non-conductive, high mechanical strength, recycling less resistant to corrosion.
product parameter
| Power | Rotor diameter (m) | Blade length (m) | Blade weight (kg/pcs) | Rated Rotated speed(r/m) | Rated wind speed (m/s) | Rated power(w) | Start up wind speed(m/s) | Operating wind speed(m/s) | Security wind speed(m/s) |
| 300W | 2.4 | 1.2 | 2.2 | 400 | 8 | 300 | 3 | 3-25 | 40 |
| 600W | 2.8 | 1.4 | 2.6 | 400 | 8 | 600 | 3 | 3-25 | 40 |
| 1KW | 3.2 | 1.6 | 3.6 | 360 | 9 | 1000 | 3 | 3-25 | 40 |
| 2KW | 4.0 | 1.8 | 5.0 | 320 | 10 | 2000 | 3 | 3-25 | 40 |
| 3KW | 5.0 | 2.3 | 8.8 | 220 | 10 | 3000 | 3 | 3-25 | 40 |
| 5KW | 6.0 | 2.6 | 12.0 | 220 | 10 | 5000 | 3 | 3-25 | 40 |
| 10KW | 8.0 | 3.5 | 32.0 | 160 | 11 | 10000 | 3 | 3-25 | 40 |
| 20KW | 11.0 | 4.8 | 80.0 | 120 | 11 | 20000 | 3 | 3-25 | 40 |
| 30KW | 12.5 | 6 | 120 | 100 | 12 | 30000 | 3 | 3-25 | 40 |
| 50KW | 18.0 | 8.8 | 260.0 | 80 | 12 | 50000 | 3 | 3-25 | 40 |
| 100kW | 20.0 | 10.0 | 50 | 12 | 100kw | 3 | 3-25 | 40 | |
| 200kw | 26.0 | 13.0 | 50 | 13 | 200kw | 3 | 3-25 | 40 |

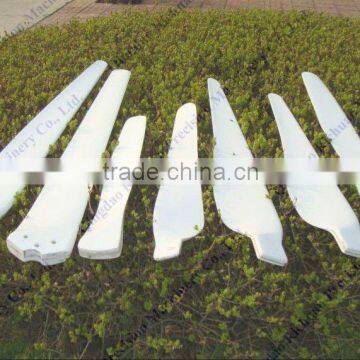

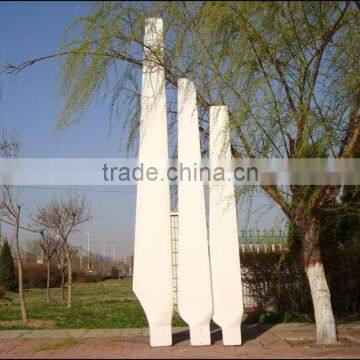

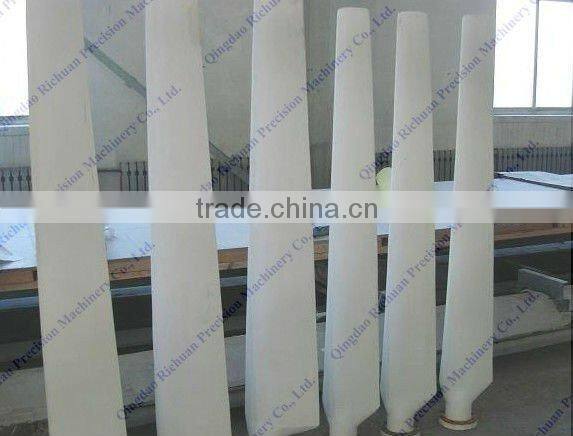

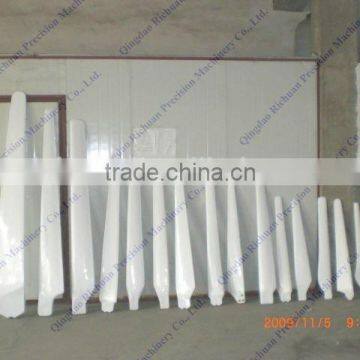

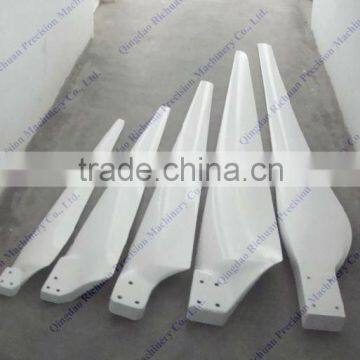

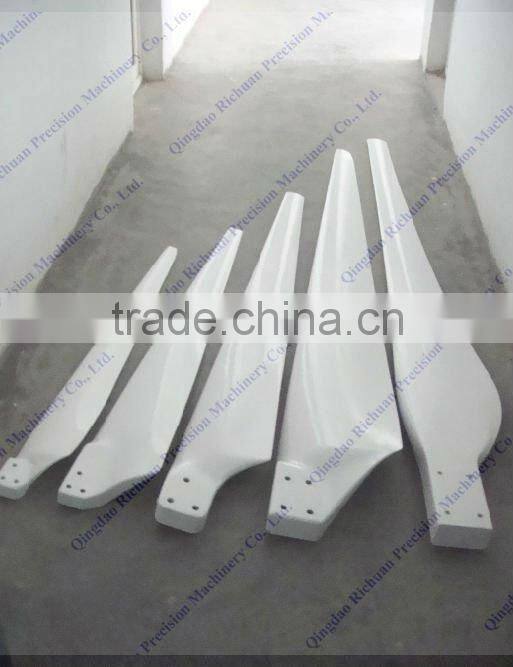

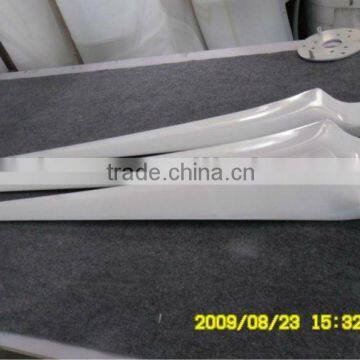

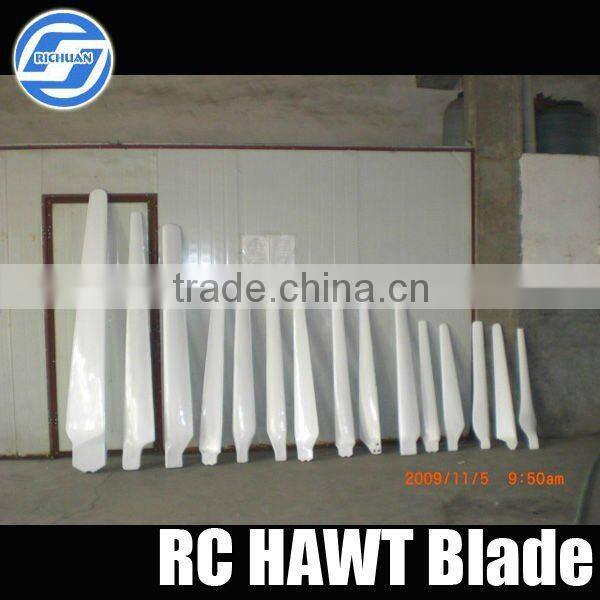

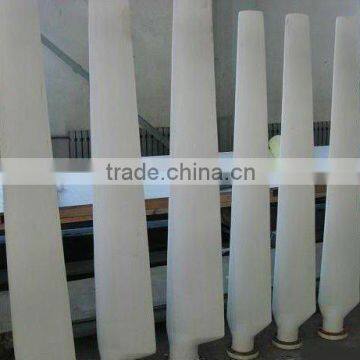

Pictures for your reference
why choose us?

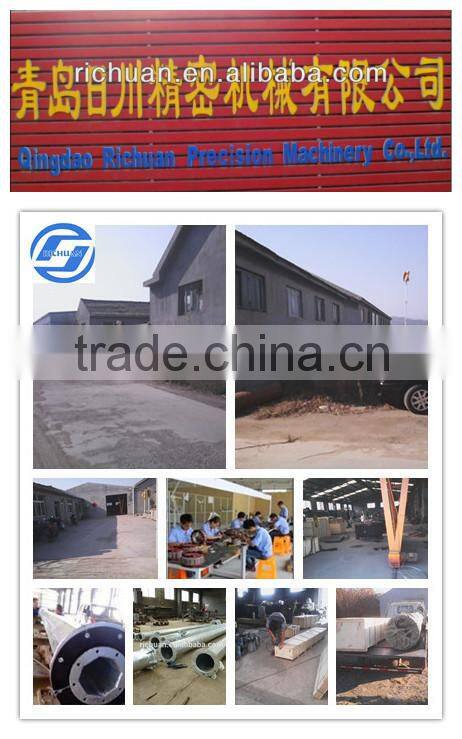

Company Profiles
Qingdao Richuan precision Machinery Co,Ltd. is a manufacture enterprise which
develops, manufactures and sells small and medium complete set of wind turbine.
Normally we produce the vertical axis and the horizontal axis wind-driven generator.
Our company has design department and system configuration team, thus we can
provide power supply system solutions depending on various customers' requirements.
Moreover, we have engineering department, our engineers can provide product's
installation guidance and training to our customers
Quality assurance
1.One year warranty for whole system
2.Preferred anti-corrosion, rust-proof special materials and high-strength parts
3.CE approved
4.Adapt to the working environment temperature -50 °C ~120 °C
Transport and services
1.Small size, light weight, easy to transport and install
2.Intuitive online installation instructions
3.Global coverage of the installation and maintenance
4.Improved after sale access and service system
AFQ
1. What size can you produce ?
We can produce from 300W to 200KW wind generator blades.
2.which style do you offer ?
We can offer horizontal axis wind generator blades, vertical axis with C-type,H-type Groove-type blades. Besides we can produce as you required.
3. what about warranty and service?
We offer free warranty time for one year and service life of the blades up to more than 15 years.
4.what about the delivery ?
We can deliver within 15 working days after receiving your payment.
