China Professional Chicken Manure Drying Machine Price
US$ 45,000 - 72,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Drum Drying Equipment
Place of Origin
Shanghai, China
Brand Name
Quanlai
Model Number
QLD-1515
Voltage
220-440V
Power(W)
22KW
Dimension(L*W*H)
15m*1.5m*1.5m
Weight
4T-110T
Certification
CE Certificate
Warranty
One Year Guarantee
After-sales Service Provided
Engineers available to service machinery overseas

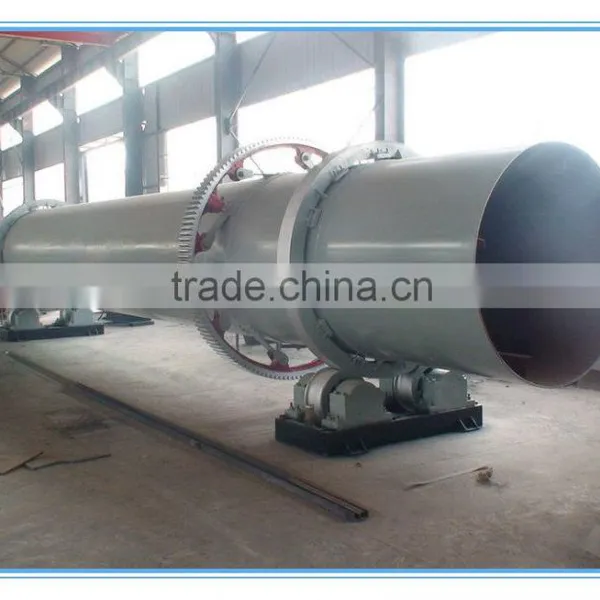

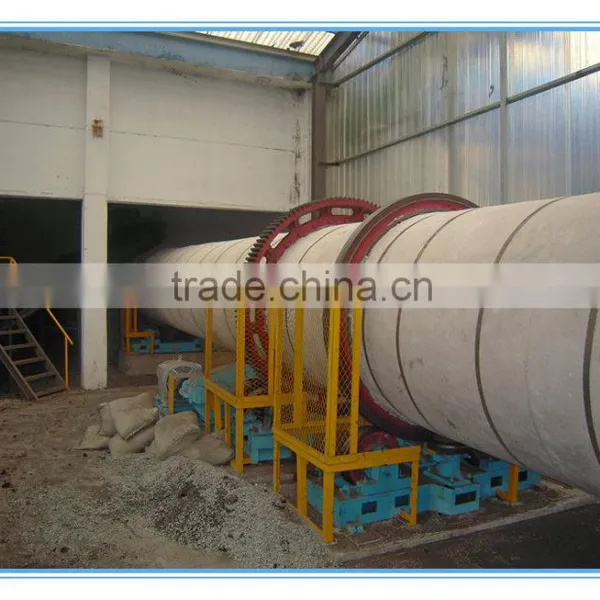

Shanghai Quanlai chicken manure rotary dryer
1.Shanghai quanlai chicken manure dryer Features:
- Chicken manure dryer is a low-fuel-consumption and high efficiency of drying equipment. It can be be used to dry the material with a moisture content below 85% to a final moisture content below 13%,. It is applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, etc. It is for resource development and good environmental protection equipment.
- The equipment uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh pig manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional. The dryer is equipped with high-speed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique equipment design, makes materials difficult to adhere to the drum wall panels and parade. The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum dryer.
- The dryer structure is compact, easy to install and debug, and using small floor area. Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials. The dryer can combine the use of different fuels (such as coal, heavy oil, natural gas, etc.).
2. Shanghai quanlai chicken manure dryer Work principle

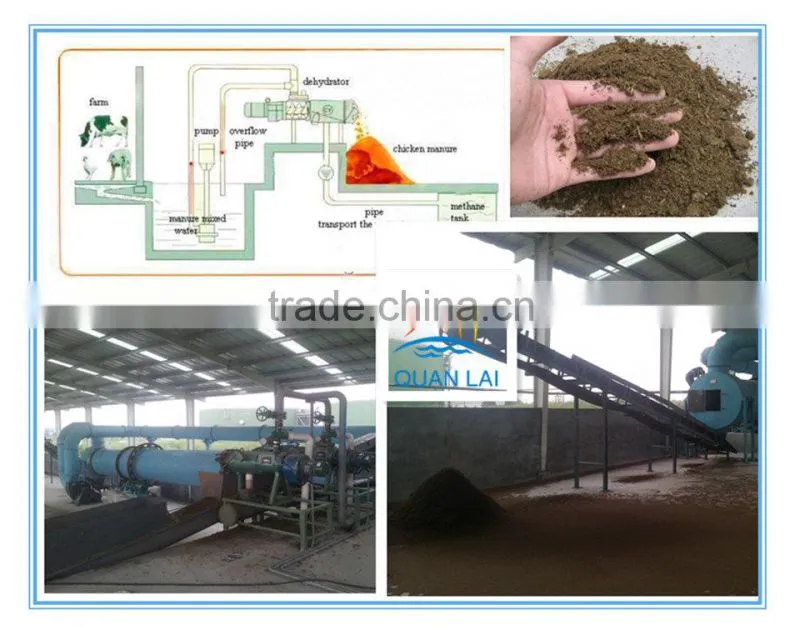

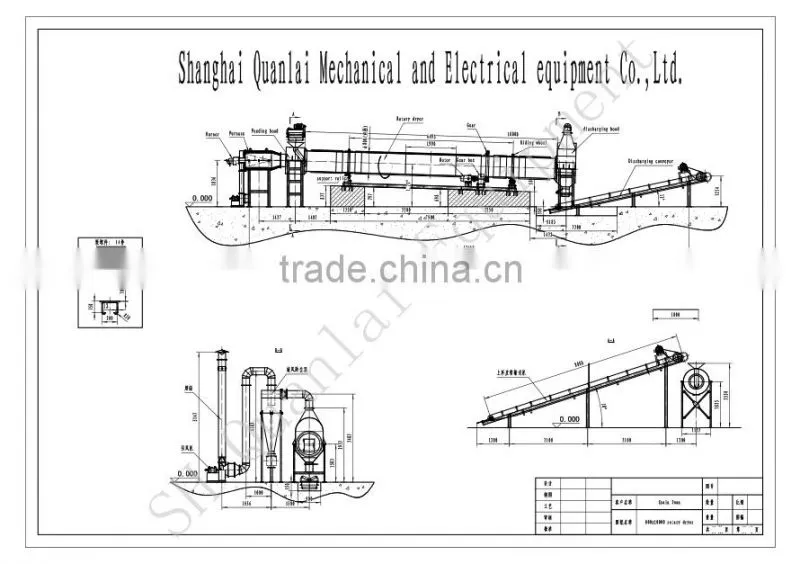

- The complete sets of cow dung dryer equipment mainly is composed of the crushing drum dryer, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet and other components.
- Humidity materials are conveyed from the feed screw directly into the cow dung dryer, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices.
- Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process of cow dung dryer. As the result of the drum wind angle and the induced air, the feed materials move slowly, and discharged from the spiral after drying, the exhaust gas handled by the dust catcher, venting to the atmosphere.
3.Environmental protection equipment of chicken manure dryer:
- The cow dung dryer equipment uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh cow dung can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional.
- The cow dung dryer is equipped with high-speed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique equipment design, makes materials difficult to adhere to the drum wall panels and parade.
- The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably
4.Technical parameters of chicken manure dryer:
|
Model |
diameter (mm) |
Drum length (m) |
Main reducer
|
Speed (r/min) |
Production capacity (t/h) |
Power (kw) |
Weigh(t) |
Volume(m3) |
|
Model |
Ratio
|
|
|
|
|||||
Φ1.0X10 |
Φ1000 |
10 |
JZQ450-16-11 |
|
6.73 |
1-3.8 |
5.5 |
7.5 |
7.85 |
Φ1.2X12 |
Φ1200 |
12 |
ZL50-16-1 |
|
5.8 |
1.8-5.5 |
11 |
13.8 |
13.31 |
Φ1.5X12 |
Φ1500 |
12 |
JZQ500-111-2F |
16.46 |
4.8 |
4-9 |
15 |
22.3 |
21.2 |
Φ1.5X 15 |
Φ1500 |
15 |
ZQ50-1611-2 |
16.46 |
4.8 |
4-10 |
18.5 |
28.8 |
26.5 |
Φ1.8X14 |
Φ1800 |
14 |
JZQ650-111 |
18.84 |
3.2 |
6-12 |
30 |
39.8 |
48.22 |
Φ2.2X16 |
Φ2200 |
16 |
ZJQ750-111 |
31.5 |
3 |
10-23 |
37 |
51 |
60.1 |
Φ2.2X18 |
Φ2200 |
18 |
JZQ750-111 |
31.5 |
3 |
10-25 |
37 |
53.3 |
70.43 |
Φ2.4X20 |
Φ2400 |
20 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
78.4 |
90.43 |
Φ2.8X24 |
Φ2800 |
24 |
ZL100-16-1 |
31.5 |
2.59 |
20-45 |
55 |
97 |
147.8 |
Φ3.0X20 |
Φ3000 |
20 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
55 |
102 |
141.3 |
Φ3.2X25 |
Φ3200 |
25 |
ZLH115 |
41.54 |
2.1 |
30-55 |
110 |
148 |
201 |
