Help Center10 Bar,G1/2,220V Water Pump Digital Pressure Switch
Related Products
-
WPC-10 10 Bar,G1/2,220V Water Pump Pressure ControllerUS$ 12.00 - 18.00MOQ: 10 Pieces -
10 Bar,G1/2,220V Water Pump Digital Pressure Control WPC-10US$ 12.00 - 18.00MOQ: 10 Pieces
-
10 Bar,G1/2,220V Water Pump Digital Pressure ControllerUS$ 14.00 - 20.00MOQ: 10 Pieces
-
10 Bar,G1/4,220V Water Pump Digital Pressure ControlUS$ 12.00 - 18.00MOQ: 10 Pieces
-
Low Cost 10bar 0.5-4.5V Air Pressure Sensor USD7.5/eaUS$ 8.00 - 12.00MOQ: 10 Pieces
- Environment-friendly:silent design.
- Safe: IP65,water-proof case,water-shortage protection.
- Intelligent: Preventing the pump automatically restart frequently.
- Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibration.
- Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.
WPC-10 Electronic Pressure Controller for Pump which is a digital display pressure switch .WPC-10 integrated the function of measure,display and control. It is easy for operation,anti-vibration,high accuracy,long-life for using. The extra function like water shortage protection,error correction and password protected. It can control and protect your pump very well.
Notice
- 1. Please set the correct upper and lower pressure value and water shortage protection value before using our device.
- 2. Please cut off the power when you install our device.
- 3. Please don’t immerse the device into the water.
- 4. Please read the manual carefully before using.
- 5. Please don’t repair the device privately,or it regard as you give up the warranty.
- 6. One-year warranty, free service for repair but buyer bear the freight cost of return.

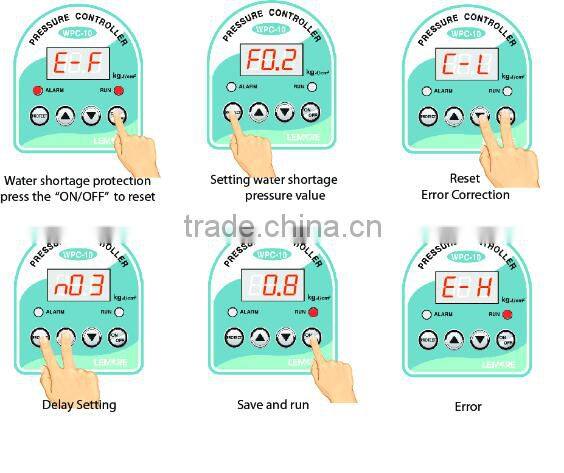

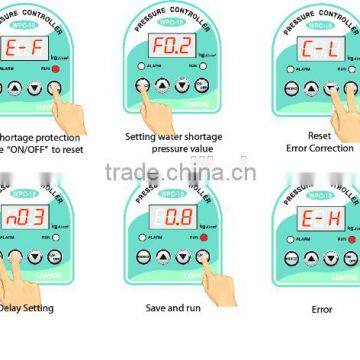

2. How to SET the value of water shortage protection value?

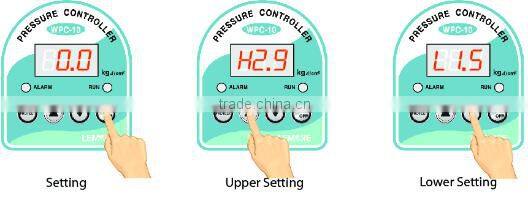

(1) Press “on/off” key to start the setting (1 SECOND)
(2) Press the “Protect”,the default value”F0.2”,setting method which is the same with upper and lower value setting.
Remark:Protection Value Rang”0.1~the lower value”,but you can set it according to your actual usage.Reference”0.1~0.5”
(3) Cancel the water shortage protection,you set the value “F0.0”
3. Reset and Error Correction
(1) Press “on/off” key to start the setting (1 SECOND)
(2) Press “down”+”ON/OFF” 5 seconds,you will see “C-L”,the device reset successfully.
Remark:You must set it without any pressure.If the device does n’t display 0.0 when you use it in the first time,please reset it before using.
4.Time-delay for Stop the Pump
In order to prevent the pump start and stop frequently,we can set a time-delay for stop the pump. Please press “protect”+”up”,it display”n03”(default time delay 3 seconds),then you can press up or down key to modify the value,then press the “ON/OFF”key to save the setting.
Description Of Using

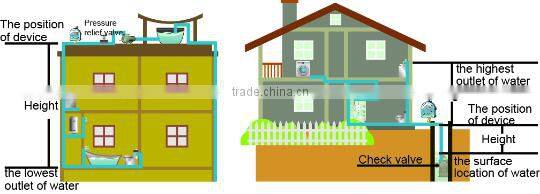

Water Supply from Upstairs to Downstairs Immersible pump automatic control
The Upper Value= The Upper Value=
The Max. Pressure of Pump -0.5KG (The Max. Pressure of Pump-H )*0.1KG-0.5KG
The lower value=0.5KG The lower value=H1*0.1KG+0.5KG
Water shortage protection value=0.2KG Water shortage protection value≤H1*0.1KG

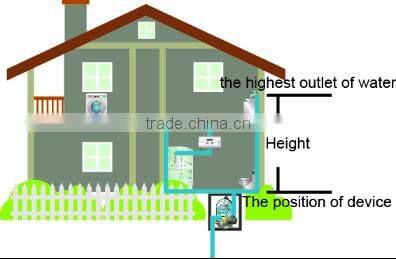

Water Supply from Downstairs to Upstairs
The Upper Value=The Max. Pressure of Pump-0.5KG
The lower value=H*0.1KG+0.5KG
Water shortage protection value≤H*0.1KG
Technical Parameter | |
Pressure Range |
0-10KG f/CM |
Voltage Supply |
220Vac(You require a 3 phase AC contactor with 380V pump) |
Connection |
G1/2(Standard),it also can be customized |
Overload Capacity |
220V,10A; Pump(≤1.5KW) can be started directly |
Read The Code | ||
Code |
Meaning |
How To Use |
H2.9 |
Upper value,stop2.9KG |
You can set it as instruction |
L1.5 |
Lower Value,stop1.5KG |
You can set it as instruction |
F0.2 |
Water shortage protection 0.2KG |
You can set it as instruction |
E-F |
Water shortage protection |
Press ON/OFF to restart or waiting for restart automatically |
E-H |
Error,over the pressure range |
Check the pressure source |
