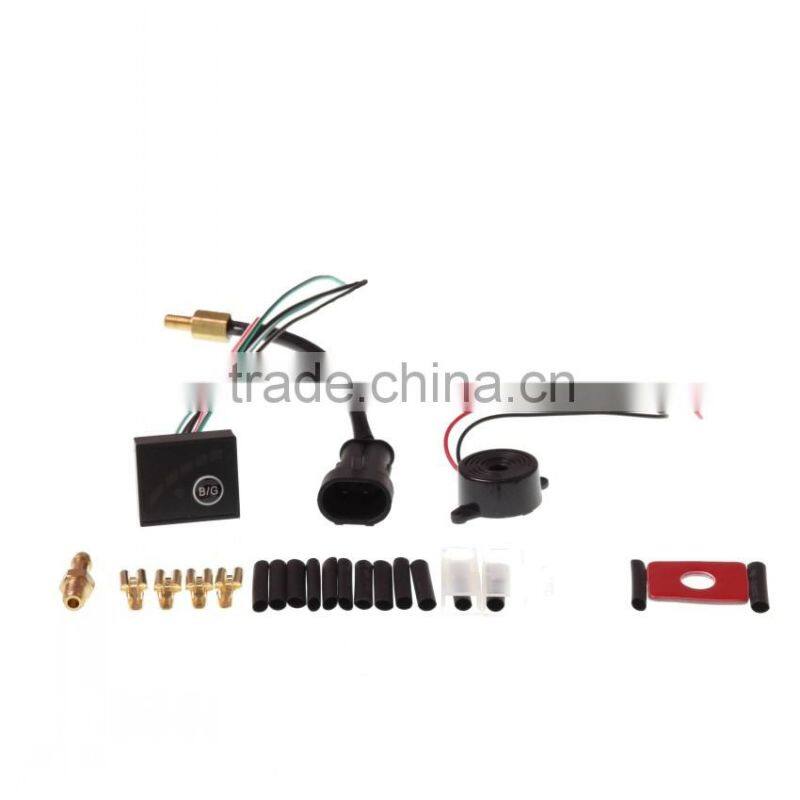

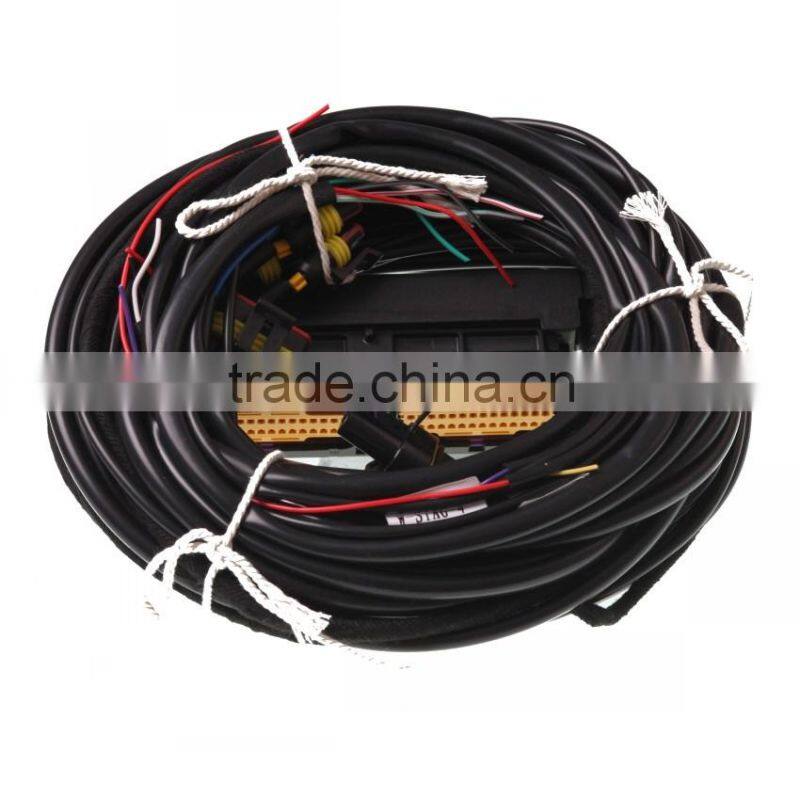

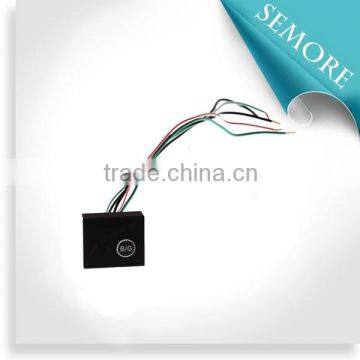

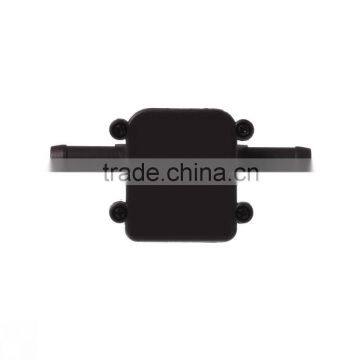

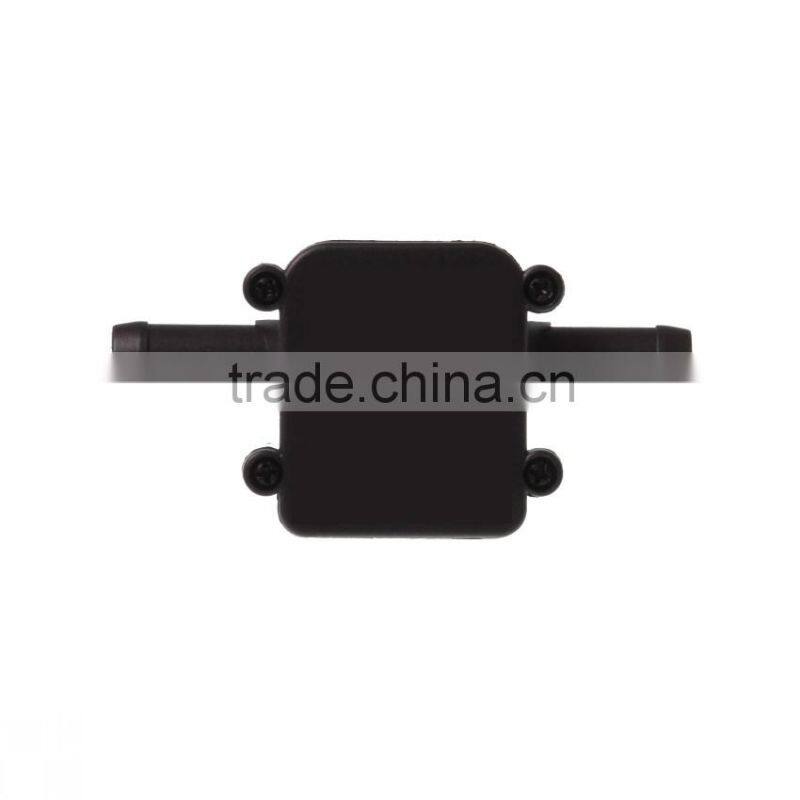

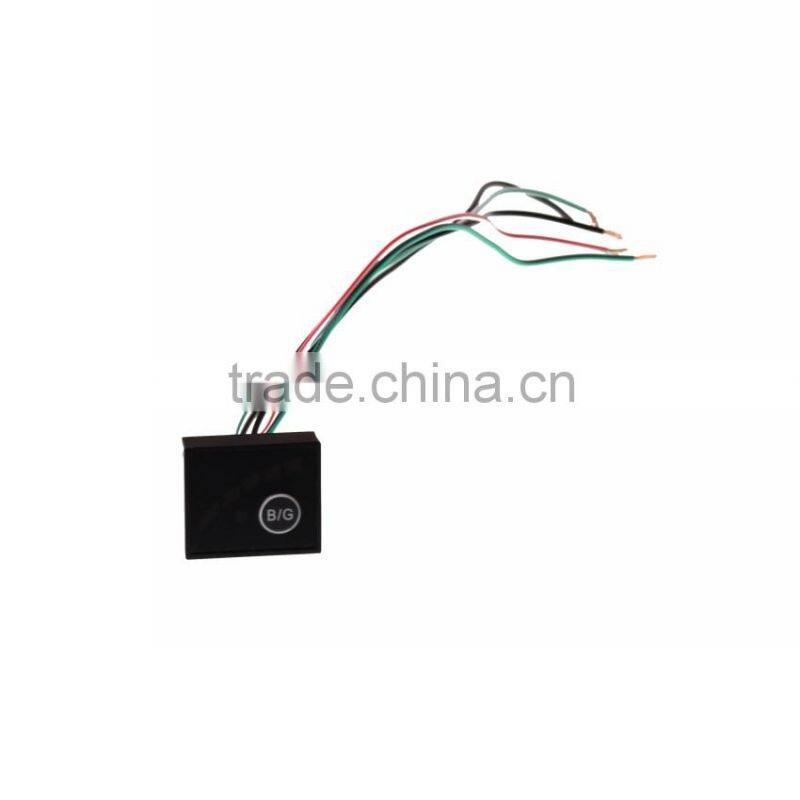

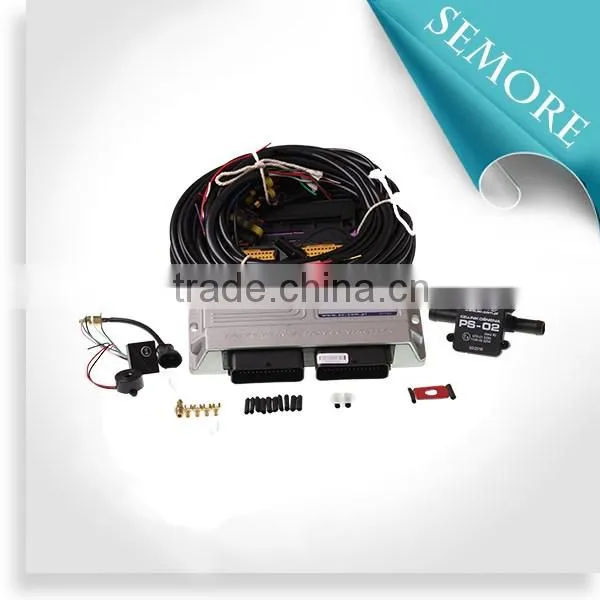

Help CenterCNG LPG Squencial Injection System 4 Cylinder/CNG LPG Complete Kit Components
Related Products
-
MP48 OBD ECU Kit Electronic Control CNG LPG Conversion Kit Injection SystemUS$ 42.00 - 42.00MOQ: 100 Sets -
LGP CNG ECU AC300 for CNG LPG Sequential Injection SystemUS$ 42.00 - 42.00MOQ: 100 Sets
-
HR-C Air Compressors Pressure TransducerNegotiableMOQ: 10 Pieces
-
HR-P Water Pump Pressure Transducer,4-20mA,6bar,10bar,G1/4US$ 40.00 - 40.00MOQ: 10 Pieces
-
Low Cost 10 Bar Water Pressure SensorUS$ 15 - 20MOQ: 10 Pieces
DESCRIPTION

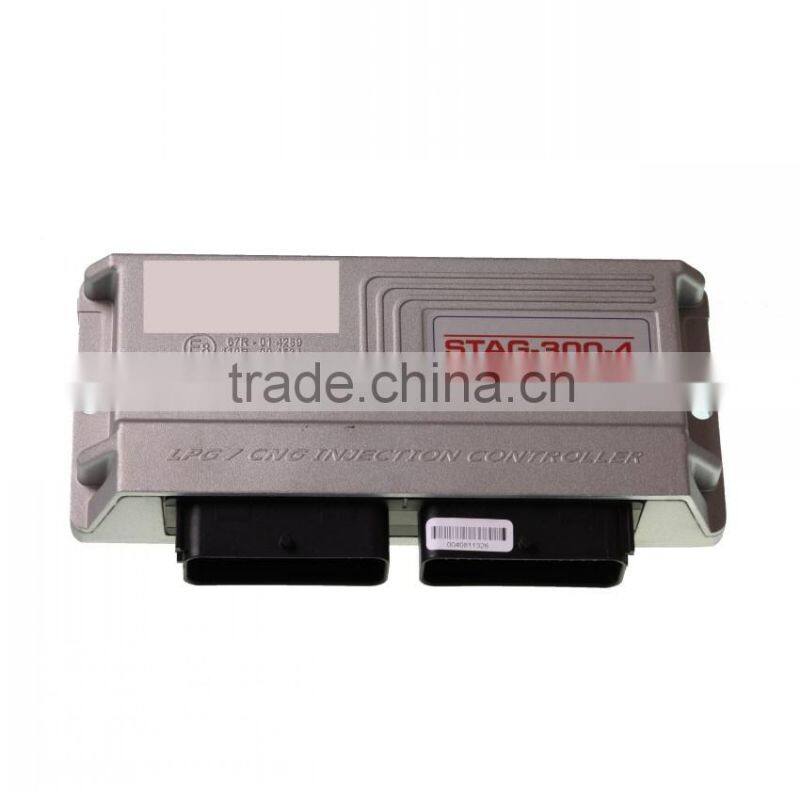

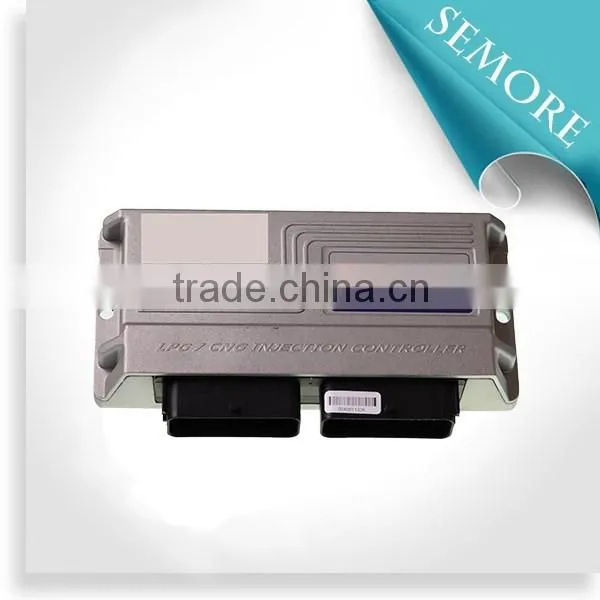

AC-300 is a new generation of automotive gas control system, with intelligent self learning correction function,always monitor STFT and LTFT long-term, short-term,short-term fix.System equipped with functional debug software,good man-machine interface;A new 3D simulation debugging,according to the different working conditions of engine,realize effective control of gas injection more accurate.AC-300 intelligent electronic control system applies to all 1~8 cylinder gasoline engine,gasoline engine can choose matching through the upper machine control mode,such as: naturally aspirated and turbocharged order,order half ,whole group,etc.
SYSTEM FEATURE
Good air-fuel ratio closed-loop control system,engine power of energetic and exhaust emission control is superior.(European standard V)
Perfect self learning calibration,OBD adapter and adaptive matching module,effective diagnosis fault code
A key to implement automatic calibration and the fault diagnosis function
2 d graph,3 d multi-function calibration chart,oil and gas injection time digital display charts
Temperature calibration chart,gas pressure curve correction independently
System for liquefied petroleum gas (LPG) and compressed natural gas(CNG) at the same time,the motor energy selectivity is stronger
The comprehensive information collection such as water/temperature,inlet pressure ,rotating speed of the original car,fuel injection,etc
Specific working condition of real-time traffic monitoring function,fault occur immediately converted to fuel,stronger driving safety
All software installation simple (based on Windows systems) easy to operate
-
New type of CNG algorithm,more effective information processing,precise control of air-fuel ratio
TECHNICAL PARAMETER
Working Voltage |
DC 9~16V |
Rated voltage |
DC 12V |
Coil Resistance |
≥1Ω |
Spray rail type |
1 to 8 cylinders |
Injector Emulation Resistance |
100Ω |
Port |
USB/RS232 |
Ambient Temperature |
-40~+125 |
Waterproof Level |
IP54 water Resistance |
Connection |
56 Pin |
INPUT SIGNAL
original injection petrol signal
fuel pressure signal
Vacuum pressure signal
Cylinder block water temperature signal
Gas cylinders signal
Gas cylinders signal
Oxygen sensor signal
Speed signal
Dimension:27*27*9 (CM)
Weight:2KGs
