Help CenterLow Cost 10bar,Oil Pressure Sensors USD7.5/ea
Related Products
-
Automotive Pressure SensorsNegotiableMOQ: 10 Pieces -
CNG/LPG Differential Pressure SensorUS$ 8.00 - 8.00MOQ: 100 Pieces
-
Brake Pressure SensorsNegotiableMOQ: 10 Pieces
-
Analog Signal,0.5-4.5V Output,10bar,automotive Pressure SensorUS$ 18.00 - 18.00MOQ: 10 Pieces
-

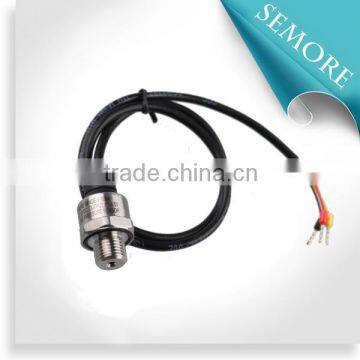

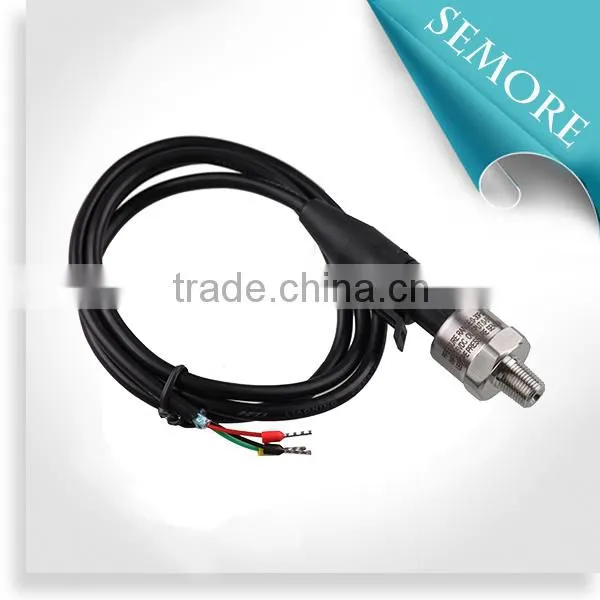

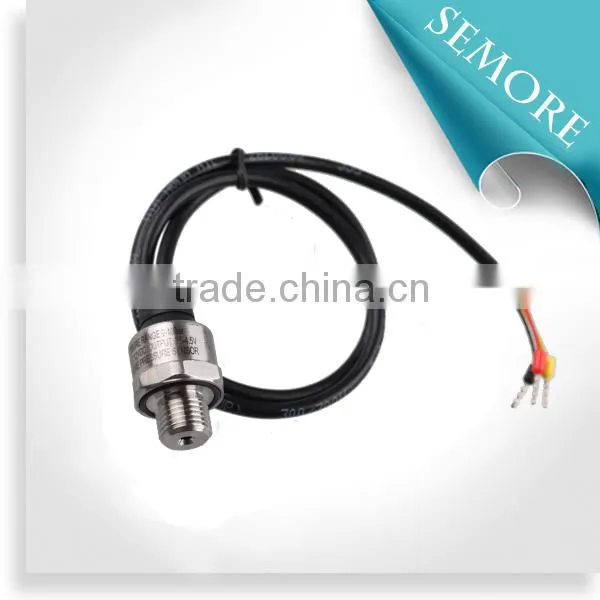

Low Cost 10bar 0.5-4.5V Air Pressure Sensor USD7.5/eaUS$ 8.00 - 12.00MOQ: 10 Pieces
Special quick connector for quick installation and pressure measurements of the motor vehicle system, and has good shock resistance and stability.
- Strong media compatibility, measurable hydraulic oil, oil, LPG, gas.
- High precision, small size, easy to install.
- Large temperature compensation -40 to 125℃.
- 0.5V ~ 4.5V, 0 ~ 5V variety of output mode.
- Excellent long-term stability.
- Improve the circuit optimization and installation of structures, with excellent anti-vibration performance and stability.
HR800 automotive pressure sensors designed for monitoring of automotive hydraulic, brake and brake system design.
Piezoresistive or foil strain gauge as the sensitive element, combined with the ASIC, at full operating temperature zone for temperature compensation and non-linear correction to achieve a high precision measurement of the full working temperature.
Product shell is stainless steel.
Application
- 1. Automotive hydraulic monitoring
- 2. Automotive brake and brake systems
- 3. Air conditioning and refrigeration systems
Technique parameter | ||
Range |
0 ~ 0.7Mpa, 1Mpa,1.6Mpa,3.5Mpa,10MPa…70Mpa 0 ~ 100psi,1500psi,500psi…1000psi |
|
Composite gauge pressure |
Any composite pressure optional (such as-100Kpa 3Mpa) |
|
Comprehensive Accuracy |
0.5% FS, 1% FS, 2% FS (optional) |
|
Overload |
2 times the rated pressure |
|
Measuring medium |
316 L stainless steel compatible media |
|
Supply voltage |
9-32V |
5V |
Operating current |
≤ 10mA |
≤ 15mA |
Output Type |
0-5V / 4-20mA |
0.5-4.5V, 1 -5V |
Use temperature |
-40 ~ 150 ℃, -20 ~ 110 ℃, -20 ~ 80 ℃ (optional) |
|
Pressure port |
7/16UNF NPT 1/4, G1 / 4 (can be customized) |
Circuit Protection |
Over-voltage protection, anti-electromagnetic interference |
Electrical connections |
3-conductor shielded cable, 3 pin Packard connector |
Long-term stability |
0.2% of the FS / year (typical) |
Shell material |
304L or 316L stainless steel |
Type of protection |
Intrinsically Safe Exia Ⅱ CT6 |
Range |
-40 ~ 150 ℃, -20 ~ 110 ℃, -20 ~ 80 ℃ (optional) |
