Garden Windmill Crafts

Specifications

garden windmill crafts
Maintenance free
In stock
PMG
CE

garden windmill crafts

1.Supply 200W-50KW generator, vertical axis and horizontal axis wind generator

2.No maintenance required

3.Low speed Permanent magnet Wind Turbine

4.Low Noise

4.CE approved

5.Delivery within 10-15 working days.

 Parameter

Power	300w	600w	1000w	2000w	3000w	5000w	10kw
Rotor Diameter (m)	0.9	0.9	1.2	1.5	2.4	2.4	3.2
Swept Area (m2)	3.6	3.6	4.5	5.85	8	10	16
Rated Rotated Speed (r/m)	150	150	150	150	160	160	160
Rated Wind Speed (m/s)	8	8	8	8	9	10	11
Rated Power (w)	300	600	1000	2000	3000	5000	10000
Max Power (w)	450	750	1200	2200	3500	5500	12000
Output Voltage (v)	24	24	48	96	120	216	216
Start Up Wind Speed (m/s)	3	3	3	3	3	3	3
Working Wind Speed (m/s)	3-25	3-25	3-25	3-25	3-25	3-25	3-25

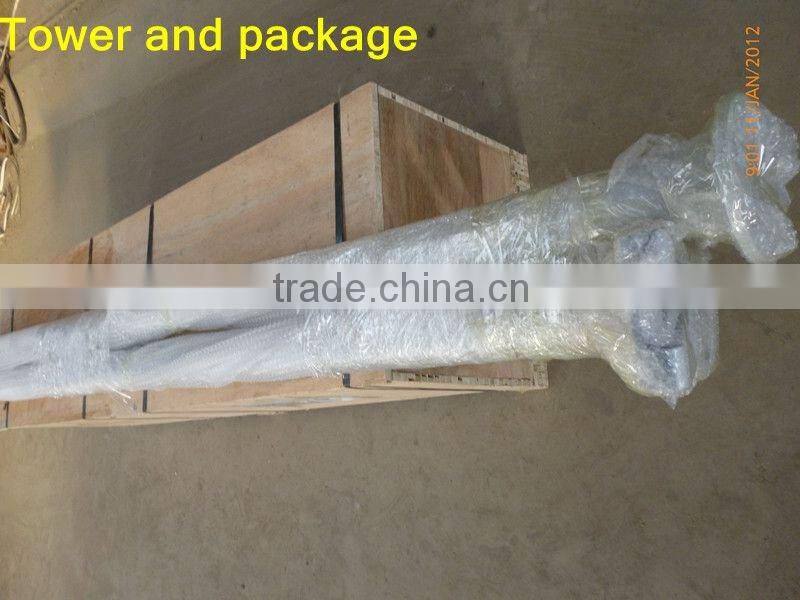

Height of Tower (m)	6	6	6	6	8	8	12
Tower Type	Pulling wire tower	Pulling wire tower	Pulling wire tower	Pulling wire tower	Free stand tower	Free stand tower	Free stand tower
Weight of Top Section (kg)	49	63	73	97	165	250	472

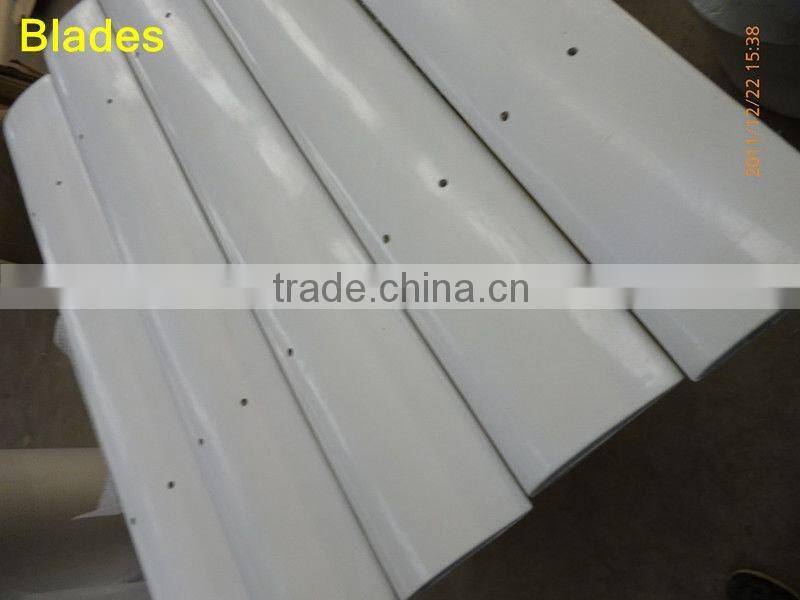

Number of Blades	5	5	5	5	7	7	7

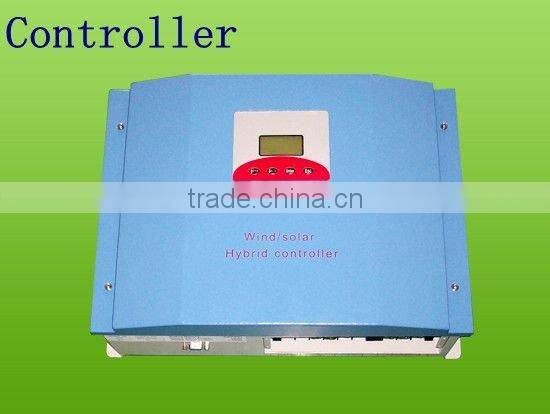

Controller Parameter	24v 40A	24v 40A	48v 60A	96V 60A	120V 60A	216V 60A	216V 120A
Inverter Parameter	DC24V →user's local voltage & frequency	DC24V →user's local voltage & frequency	DC48V→user's local voltage & frequency	DC96V→user's local voltage & frequency	DC120V→user's local voltage & frequency	DC216V→user's local voltage & frequency	DC216V→user's local voltage & frequency
Recommend battery	12V100AH 2pcs	12V150AH 2pcs	12V150AH 4pcs	12V150AH 8pcs	12V150AH 10pcs	12V150AH 18pcs	12V200AH 18pcs
