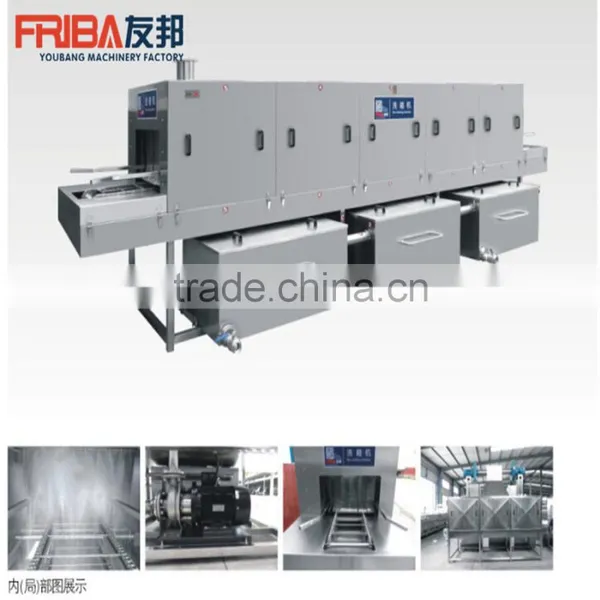

Bakery case washer/Tray washing machine
Product introduce:
Food basket washer is suitable for cleaning the transfer box / basket of meat, aquatic products, vegetables and other food processing enterprises.The machine is made of SUS304 stainless steel, it can replace the traditional man-powered cleaning, and meet the requirements of different food enterprises to clean turnover box or basket. Its operation is reliable and stable, easy to install and repair, and has the characteristics of high production efficiency, good cleaning effect, low energy consumption, long service life and so on.
Machine characteristic:
1 Adopt frequency conversion motor to meet the different requirements of cleaning production.
2 The water tank adopts the horizontal stainless steel centrifugal pump circulation spraying clean.
3 The cleaning nozzle using stereo square installation structure, it can use cold, hot water wash to ensure clean more thoroughly.
4 There are two filter devices in the water tank, so it is easy to clean up the dirt at any time.
5 There is a water spraying system in order to achieve the ideal cleaning effect.
6 Stainless steel multi-stage pump to ensure supply pressure.
7 Unique track plus blocking hook design to make the box or basket to run more smoothly.
8 The main parts of the shell are detachable, it is convenient to repair.
9 Automatic temperature control.
10 There is diameter of 10mm stainless steel support axial in mesh belt every 35mm.
11 There are three section of hot alkaline water cleaning, hot detergent water cleaning and clean water cleaning.
Technical parameters:
Machine type |
YBXXJ-600 |
Washing height |
750mm |
Washing width |
800×680×100mm or330×220×220mm |
Running speed |
Frequency control |
Water consumption |
Recycled water |
The pressure of water supply |
2-3KG |
Water consumption |
20L/min |
The steam consumption |
≤80kg/h |
Total power |
11kw |
Machine size |
6000*1400*1800mm |

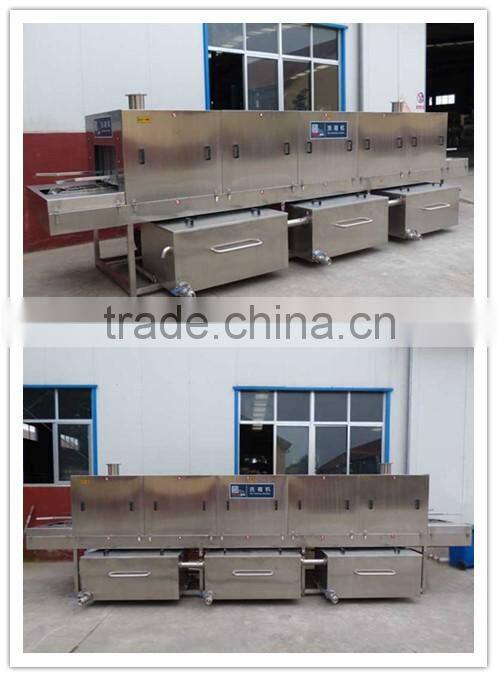

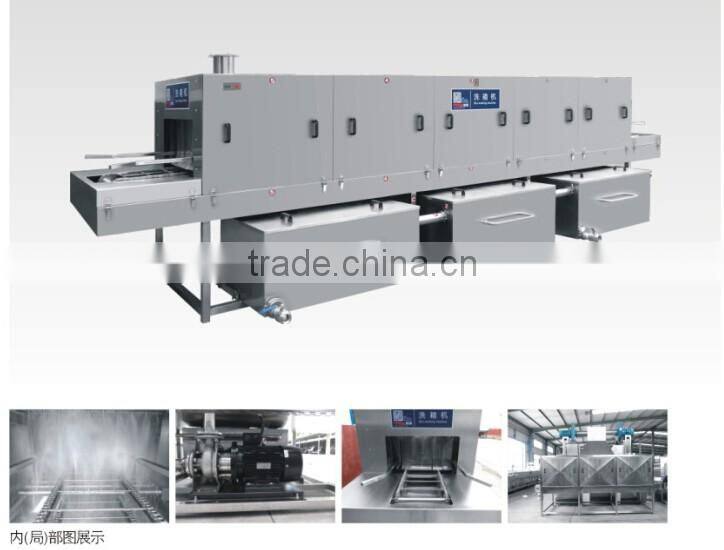

Product photograph:

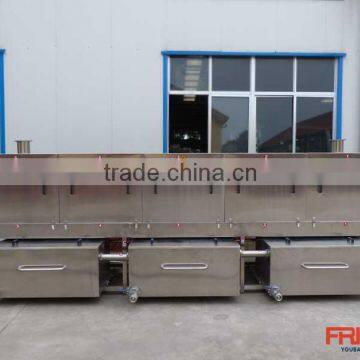

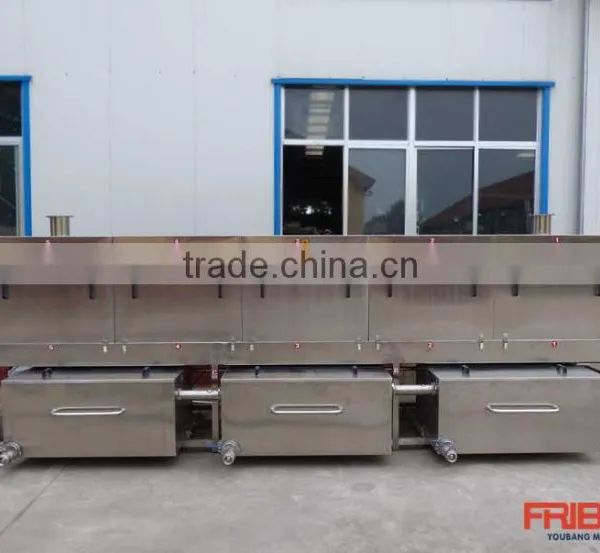

There are two filter devices in the water tank, so it is easy to clean up the dirt at any time

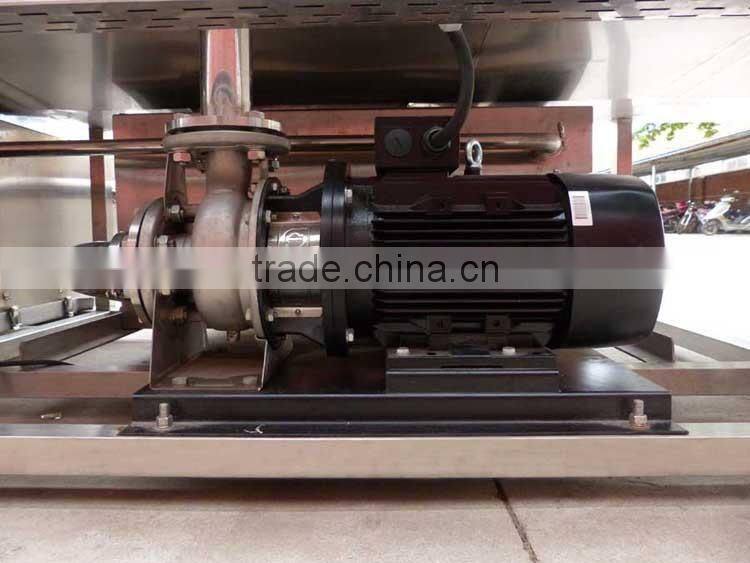

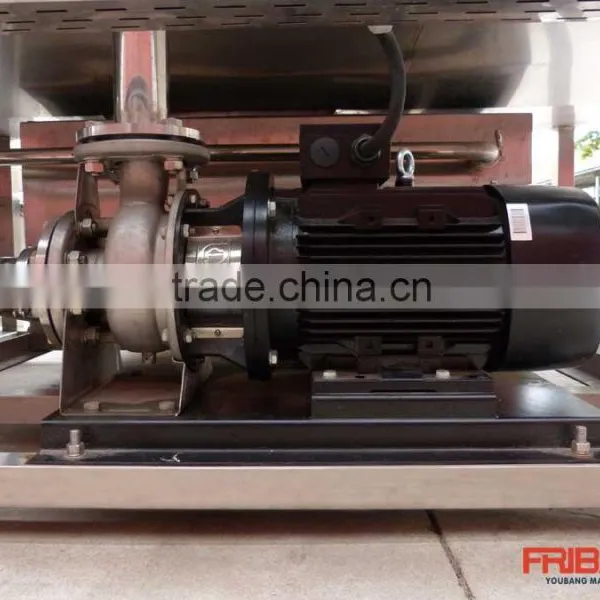

The water tank adopts the horizontal stainless steel centrifugal pump circulation spraying clean.

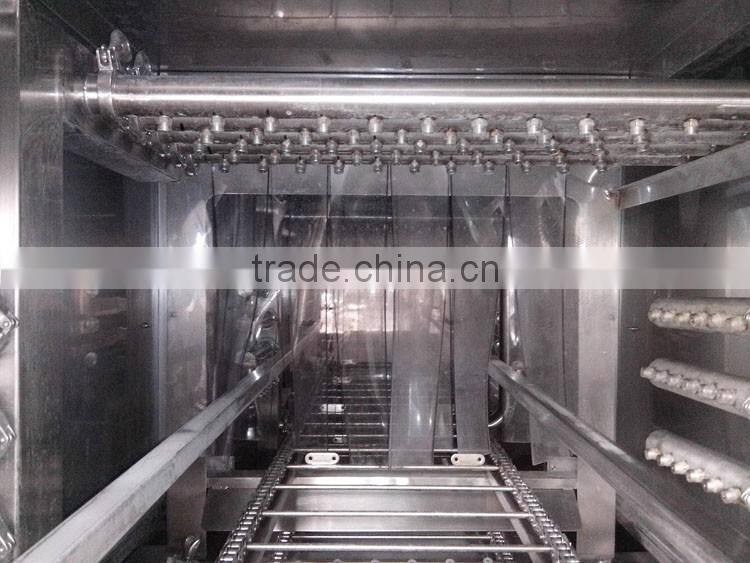

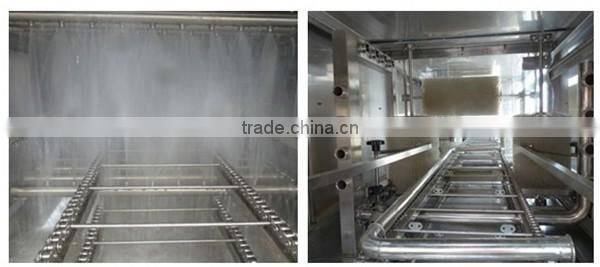

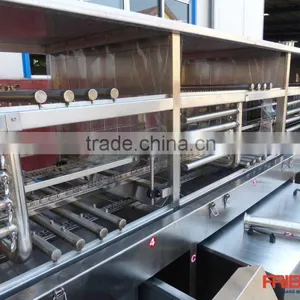

The cleaning nozzle using stereo square installation structure, it can use cold, hot water wash to ensure clean more thoroughly.
Boxed product

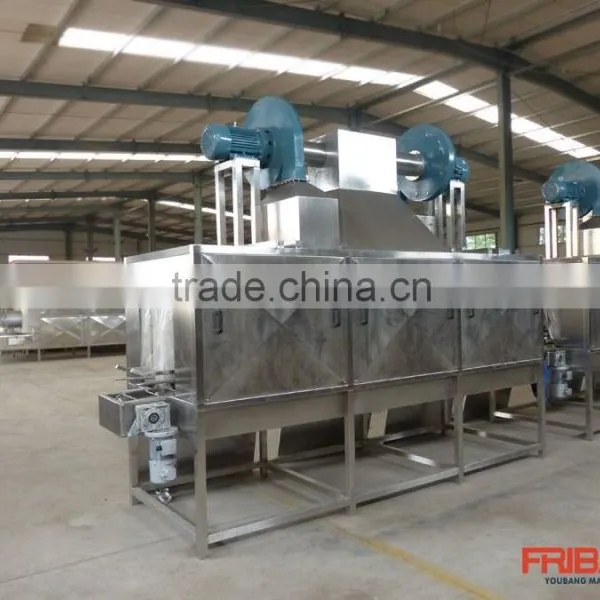

Full automatic box washing and dring system. It can be water seal design air drying,oven drying.Case washer drying system sale of two-stage.one-stage price is RMB30000.

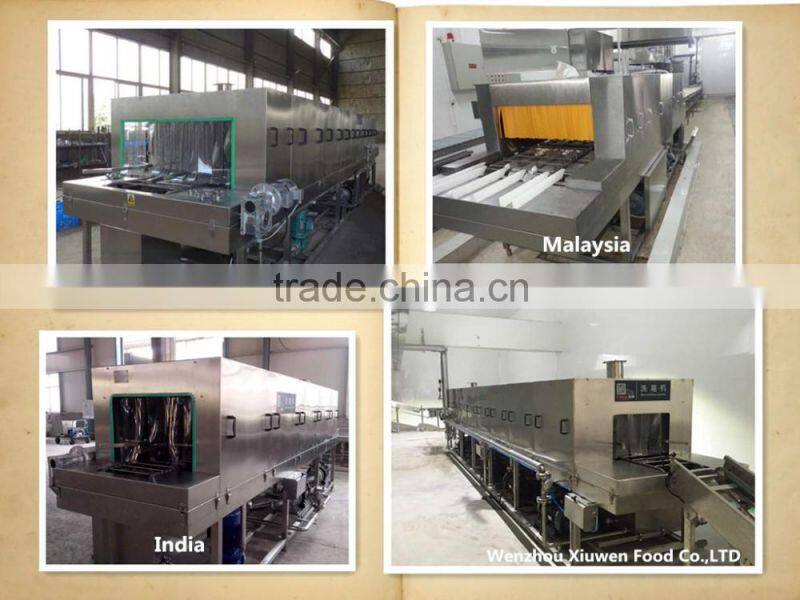

Customer Storis:
Please contact us
Jane
Skype: youbang181
Tel:0536-6054866 18053621326
Address: Zhucheng city,Shandong province,China (near Qingdao port)
