Specifications
600w 1kw 2kw 3kw 5kw 10kw Micro hydro turbine1.certification: CE
2.low cost but high efficiency
3.quick delivery.
600w 1kw 2kw 3kw 5kw 10kw Micro hydro turbines
Detailed product description:
| Power | 300w | 600w | 1000w | 2000w | 3000w | 5000w | 10kw |
| Rotor Diameter (m) | 0.9 | 0.9 | 1.2 | 1.5 | 2.4 | 2.4 | 3.2 |
| Swept Area (m2) | 3.6 |
3.6 | 4.5 | 5.85 | 8 | 10 | 16 |
| Rated Rotated Speed (r/m) | 150 | 150 | 150 | 150 | 160 | 160 | 160 |
| Rated Wind Speed (m/s) | 8 | 8 | 8 | 8 | 9 | 10 | 11 |
| Rated Power (w) | 300 | 600 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Max Power (w) | 450 | 750 | 1200 | 2200 | 3500 | 5500 | 12000 |
| Output Voltage (v) | 24 | 24 | 48 | 96 | 120 | 216 | 216 |
| Start Up Wind Speed (m/s) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Working Wind Speed (m/s) | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 |
| Height of Tower (m) | 6 | 6 | 6 | 6 | 8 | 8 | 12 |
| Tower Type | Pulling wire tower | Pulling wire tower | Pulling wire tower | Pulling wire tower | Free stand tower | Free stand tower | Free stand tower |
| Weight of Top Section (kg) | 49 | 63 | 73 | 97 | 165 | 250 | 472 |
| Number of Blades | 5 | 5 | 5 | 5 | 7 | 7 | 7 |
| Controller Parameter | 24v 40A | 24v 40A | 48v 60A | 96V 60A | 120V 60A | 216V 60A | 216V 120A |
| Inverter Parameter | DC24V →user's local voltage & frequency | DC24V →user's local voltage & frequency |
DC48V →user's local voltage & frequency |
DC96V →user's local voltage & frequency |
DC120V →user's local voltage & frequency |
DC216V →user's local voltage & frequency |
DC216V →user's local voltage & frequency |
| Recommend battery | 12V100AH 2pcs | 12V150AH 2pcs | 12V150AH 4pcs | 12V150AH 8pcs | 12V150AH 10pcs | 12V150AH 18pcs | 12V200AH 18pcs |
1.Advantages:

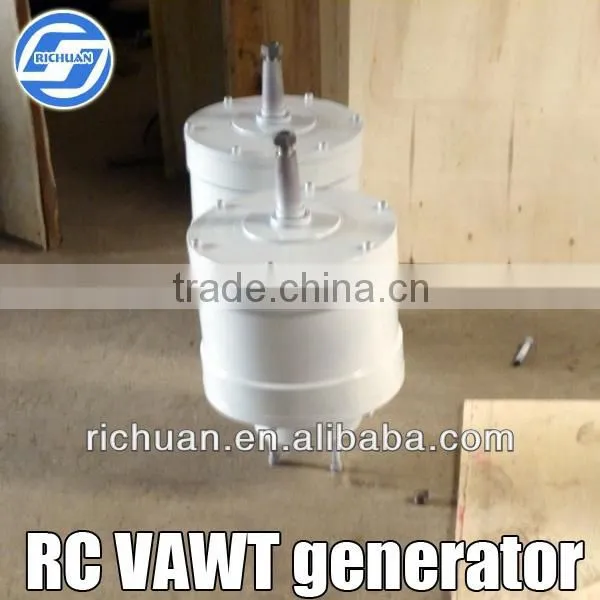

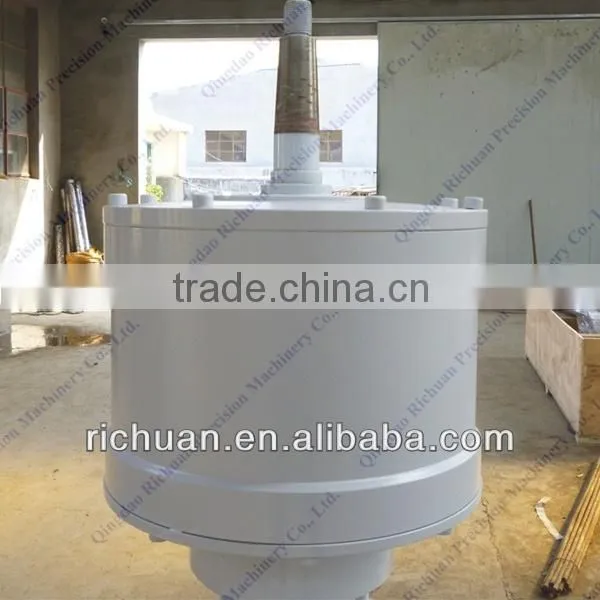

1.Low speed permanent magnet generator
2,Low starting torque ,high generating efficiency
3,Minimal maintenance and easy install
4,Without pollution
5Without fuel
6, No noise
7, Security high efficiency stablity
8,Aerodynamic brake & manul brake
9,Strong wind resistance
10,Yaw motor system
11,The span life of our product is 20~25 years
2.Company Profile:
Qingdao Richuan precision Machinery Co,Ltd. is a manufacture enterprise which develops, manufactures and sells small and medium complete set of wind turbine. Normally we produce the vertical axis and the horizontal axis wind-driven generator.
Our company has design department and system configuration team, thus we can provide power supply system solutions depending on various customers' requirements. Moreover, we have engineering department, our engineers can provide product's installation guidance and training to our customers
3.scope of application:
Our wind turbine can supply power for small villages, gas stations, toll stations, charging stations, water pumps, air conditioners, TV, washing machines, computers, lighting and other household appliances.
4.Notes:
1. Tower type and tower height can be changed as per your request.
2. Working voltage can be special requested.
3. For the details,please feel free to contact us
5.Market:
High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America, South America and Middle East.

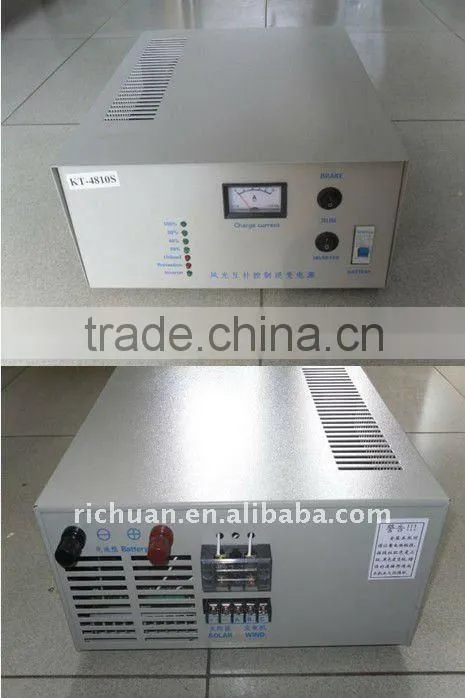

6.Control Systerm:

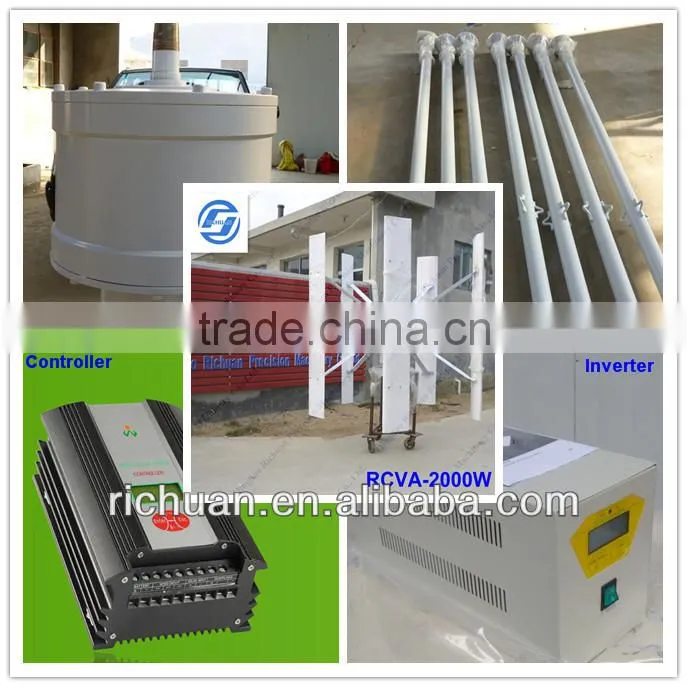

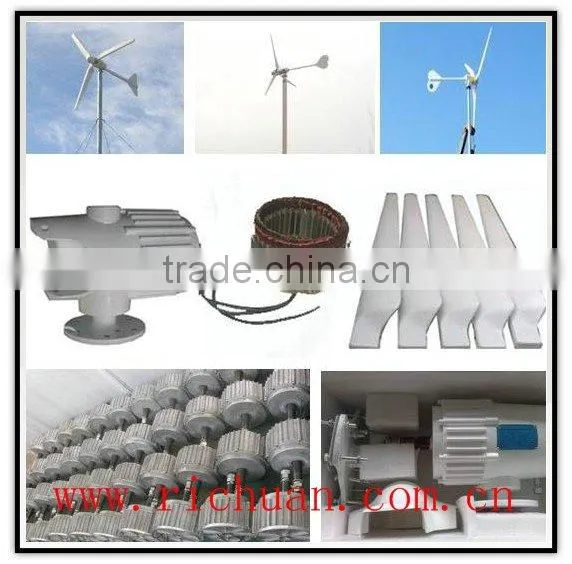

7.Pictures for reference:
8.CE
