Specifications
1. male and female industrial plug and socket2.15A 125V
3.Approval:UL CUL
4.Standard:UL1681
5.100% test before shipment

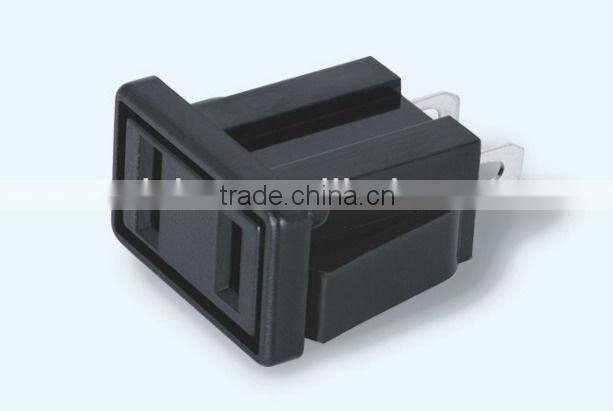

American 15A 125V male and female industrial plug and socket
Production Specification
Actuator (non-lighted): Nylon 66 94V-2
Actuator (lighted): Polycarbonate
Case: Nylon 66 94V-2
Spring: teel Wire
Contacts: Silver Alloy
Movable Arm: Silver-Plated Copper Alloy
Terminal :Tin-Plated Copper Alloy
Ratings:15A 125V
Electrical Life at Rated Load:10,000 (VDE)
6,000 (UL)
Dielectric Strength:1500vac ac/min
Insulation Resistance: 100MΩ min
Initial Contact Resistance: 50MΩ max
Temperature Range: -25°C to +85°C
